d1 rear axle picture competition

resto_d1 · Feb 25, 2019

Afternoon

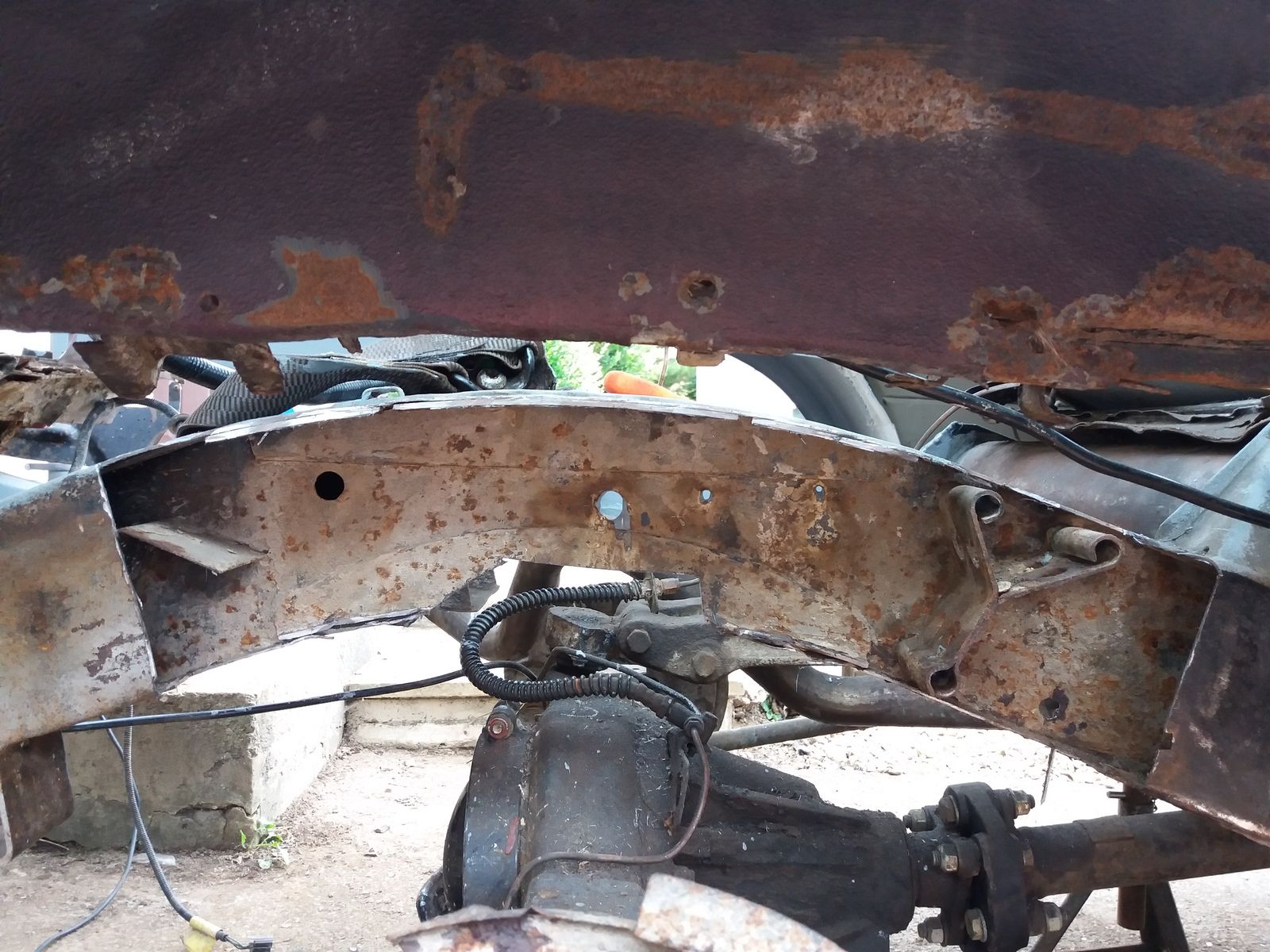

Does anybody have nice clear pictures of the brake lines on rear axle? I know their shape but want pics of the line clips and also the bracket where its mounted on diff. Is this bracket mounted via its own bolts or via the main diff bolts? Thanks!!! I know one end of flexi length is mounted on this with the other end mounted on the boot floor.

dieseldog69 · Feb 25, 2019

I will try an grab you a pic tomoz but yeah the there is a little bracket that affixes via two diff studs and the T piece has a single bolt that holds it to the plate.

Disco1BFG · Feb 25, 2019

Yep! LHS:-

Length of the pipe is on the pic too - 1150mm....

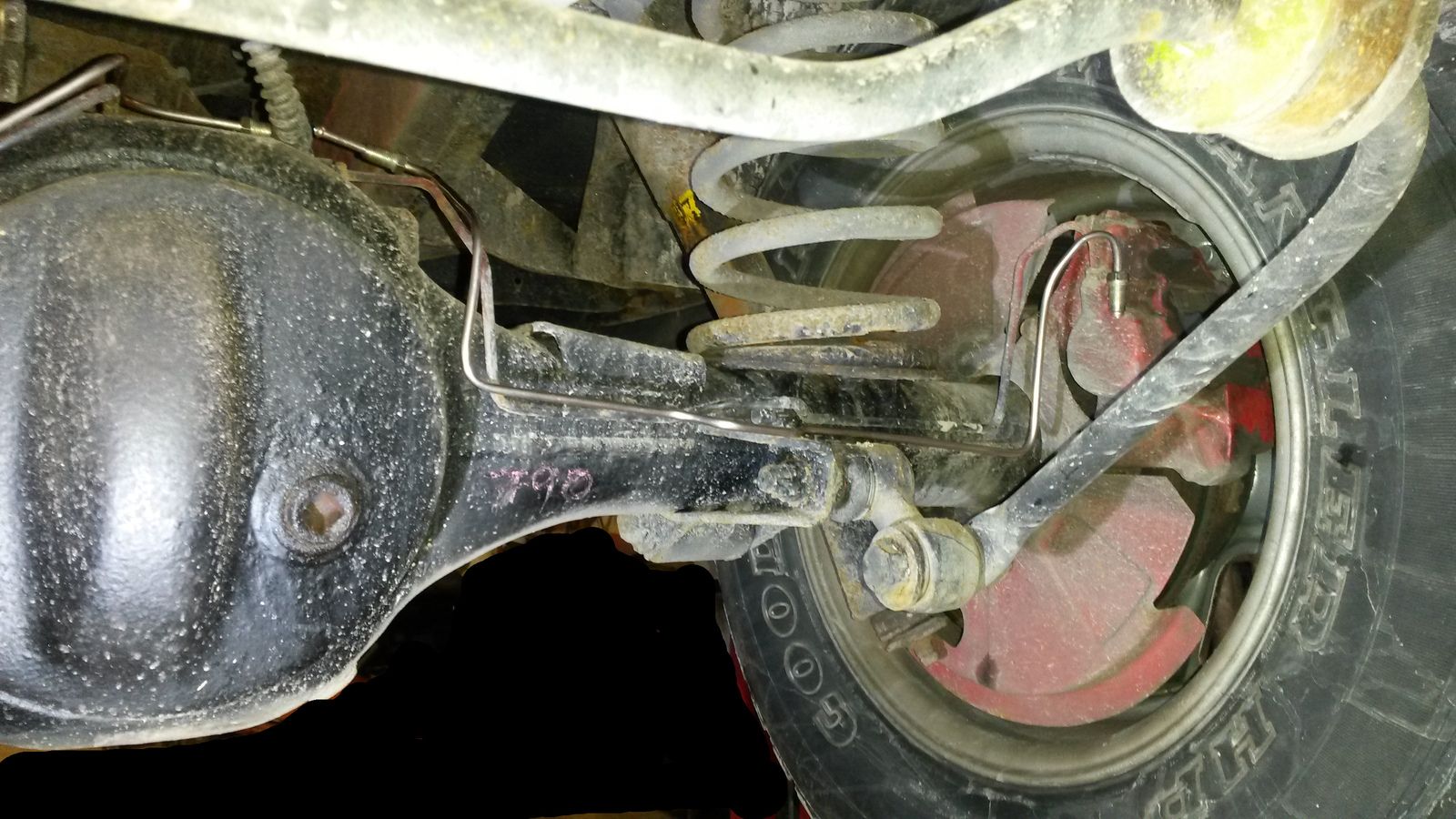

RHS:-

Length of this pipe 790 IIRC

Hope they help

resto_d1 · Feb 26, 2019

Thanks. You win
