Freelander 1 Coolant Leaks :(

Discussion in 'Land Rover Freelander' started by MULDERKE, May 6, 2022.

< Previous Thread | Next Thread >
  1. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land
    Hello all.
    Just to re-ask. Can the Rad come out with the fans still attached. So as to make the transfer of the fans a bit easier.
    Thanks.

  2. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,607
    Likes Received:
    1,328
    Location:
    Devon
    Yes, just unplug the thick power cables first.

  3. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land
    Cheers Sir..

  4. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land
    Hello all.

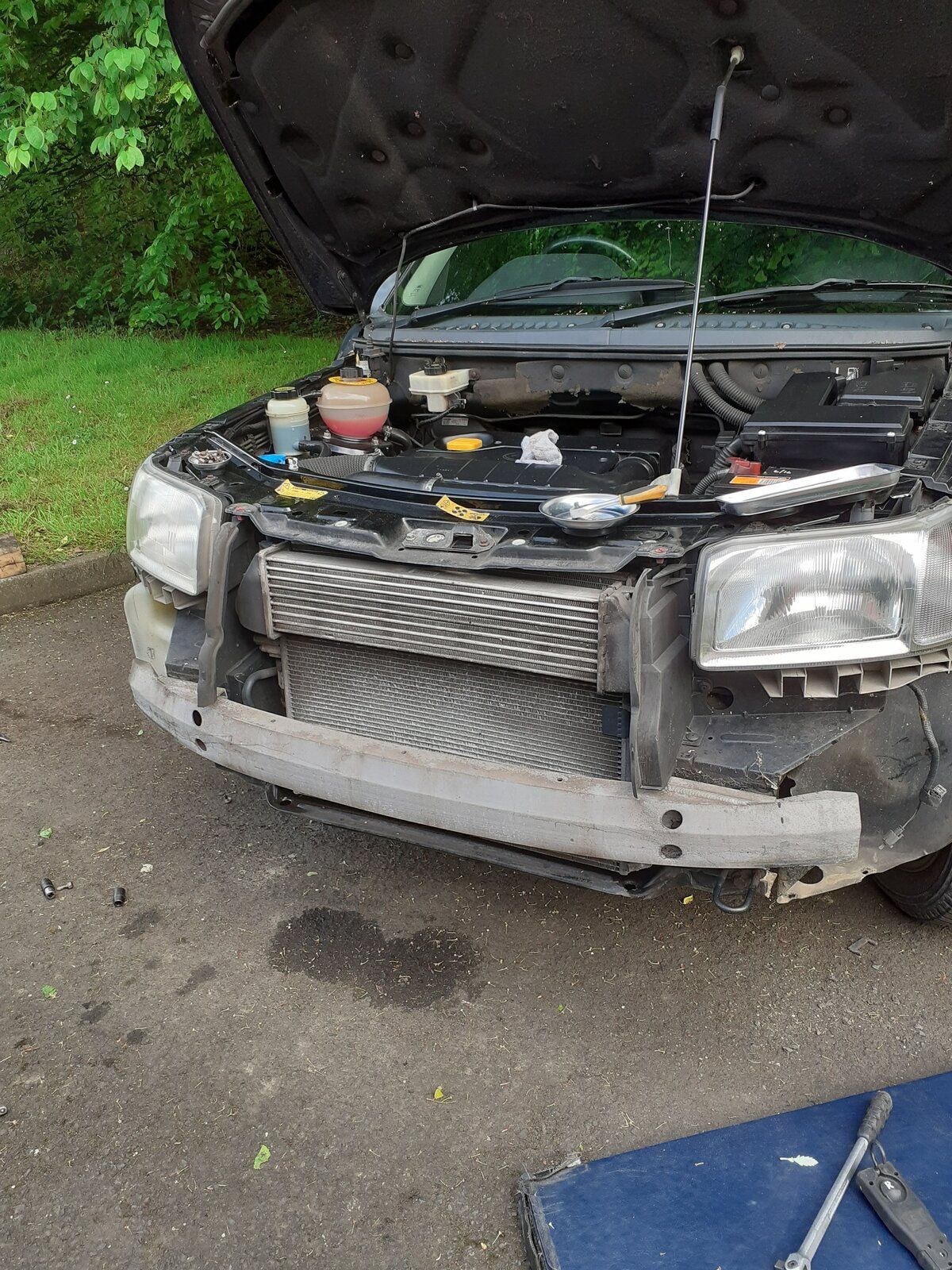

    Had a crack at it today. Some pics. 20220513_152111.jpg

  5. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land

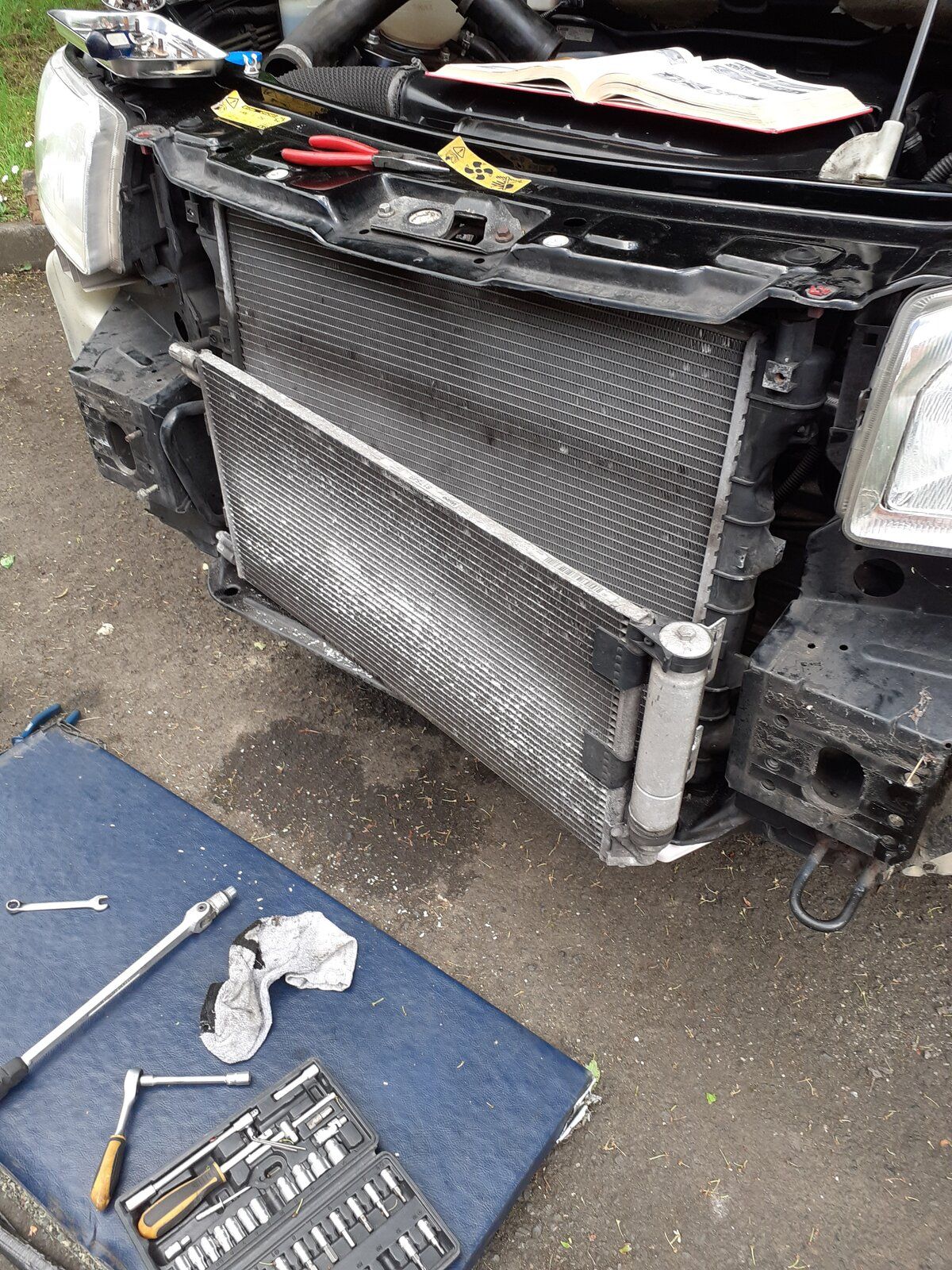

    Seems slow at loading. Must be my phone. Took my time, front bumper was a pain. 20220513_163054.jpg

  6. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land
  7. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land
  8. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land

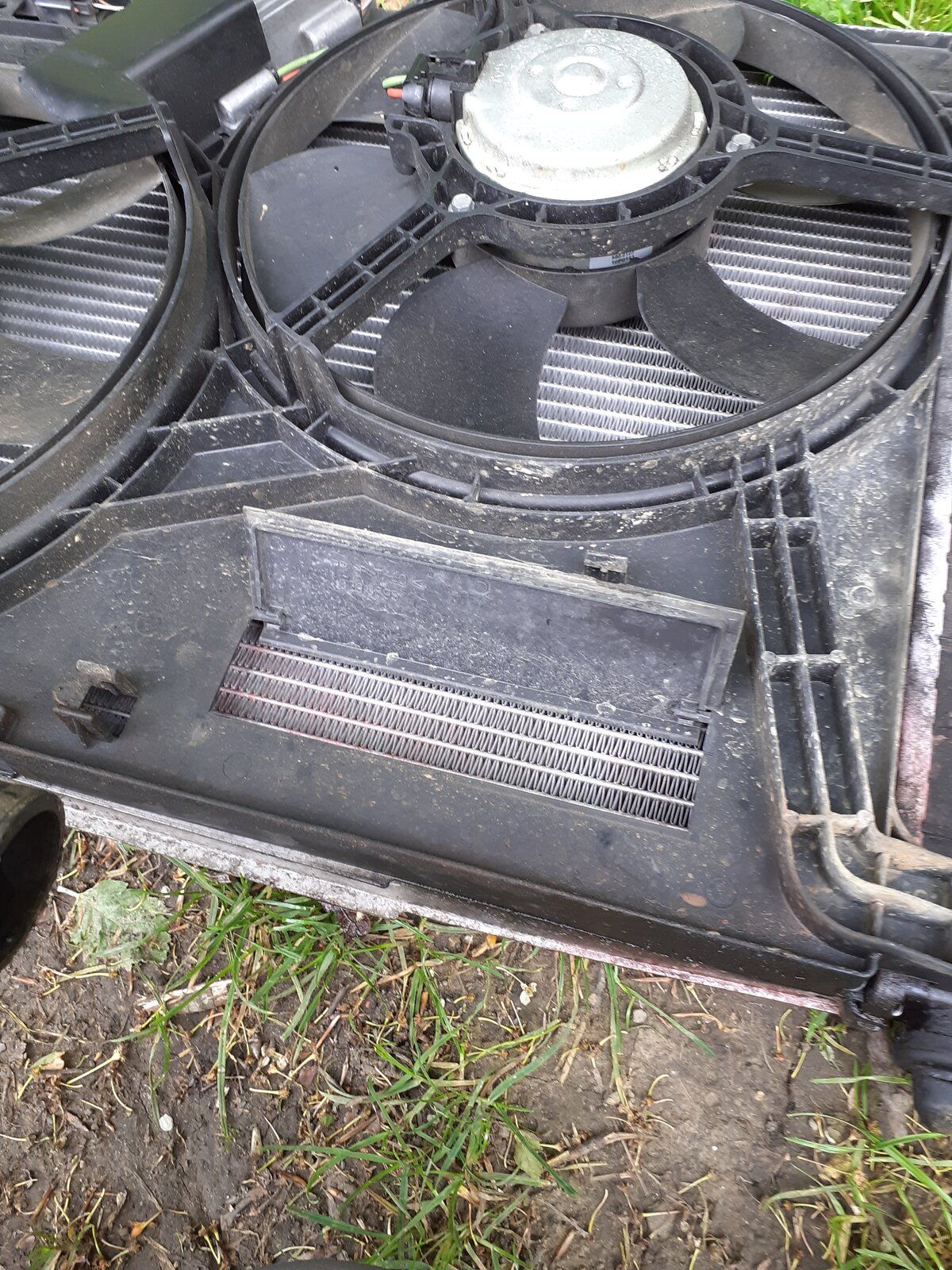

    Would love to know what this flap is for 20220513_164610.jpg

  9. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land

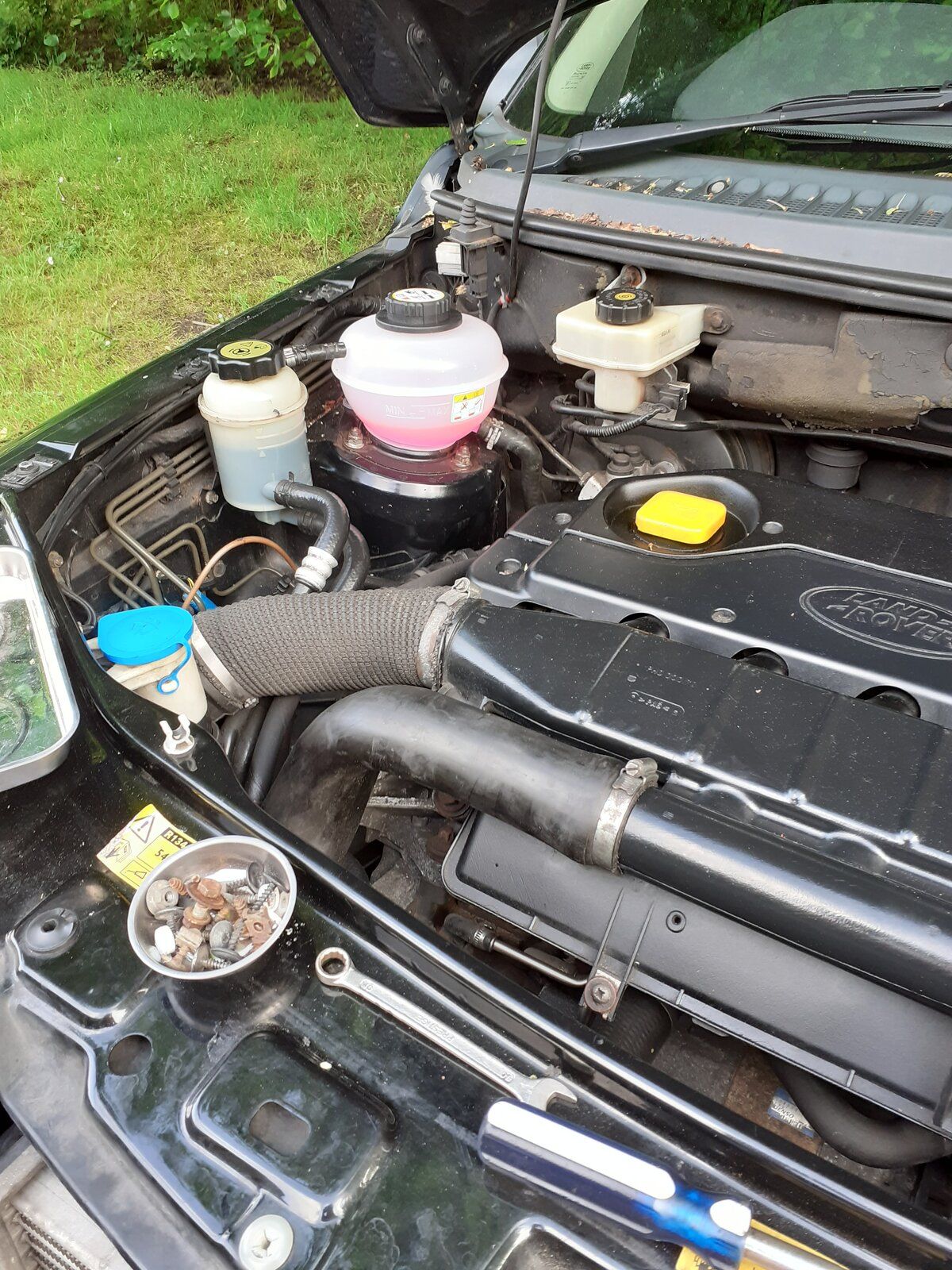

    New Res bottle to finish the job off. Put the bumper back on when I've run it and checked for leaks. Big Thanks for all your help and advice. Cheers 20220513_180952.jpg

    GrumpyGel and Andy Warren like this.
  10. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,607
    Likes Received:
    1,328
    Location:
    Devon
    Well done, great job. Not easy on your own.
    Glad the small bolts holding the air con and intercooler didn't give you too much grief. :)

  11. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    627
    Likes Received:
    388
    Location:
    No Mans Land
    Ahh. thats what it is. New what the intercooler rad was , but the other was a mystery. Amazed to see nil corrosion behind the Bumper. Either in the chassis section or behind the Rad. Its twenty years old??
    Most of the bolts came out easy enough. One i had to chop out of the old Rad. Captive nuts in plastic over years always make me think twice. Take it easy. All the bolts were galvanised, thank God,
    I stuck the old coolant back in while I check for leaks, but it is now so diluted due to topping up, I have new . Believe it or not OAT Anti freeze is the cheapest at Halfords. 5ltr £23.00.
    All said. Thanks for all your advice!
    It took the not knowing out of a job, I could do.
    Cheers

    Andy Warren likes this.
  12. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,943
    Likes Received:
    7,434
    Location:
    Near Newquay
    When travelling at speed, the flap opens, allowing more air through the radiator, rather than all the air having to go through the fan holes.

    When stationery, or moving slowly, the flap is closed, which causes the cooling fans draw air through the radiator, rather than pull air past the fans from the engine bay.

    Lots of vehicles use passive flaps in the fan cowling.
