hi all. I am trying to find a PDFs manual that id's all the plugs and connectors and where they are. I have found the wiring diagram manual but not the other. It is for a 04 td5 90. Ta.
Connector identifier manual
- Thread starter Defender Marto
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
skint-as-usual
Not a well Known Member - with no likes
- Posts
- 2,411
- Location
- County Durham
What is the diagram that you have?
Defender Marto
Member
- Posts
- 37
- Location
- Wirral
- Posts
- 66,655
- Location
- The Wooly Witch
Have you a copy of RAVE ?
Defender Marto
Member
- Posts
- 37
- Location
- Wirral
No I don't have a copy. If it is Microsoft base I'm stuck as I only have apple.
- Posts
- 66,655
- Location
- The Wooly Witch
http://www.landroverweb.com/Pdf-files/Defender MY2002 Wiring Diagram.pdf
Burn to disc or print out the bit you need ( and scribble on it
)
skint-as-usual
Not a well Known Member - with no likes
- Posts
- 2,411
- Location
- County Durham
That should help

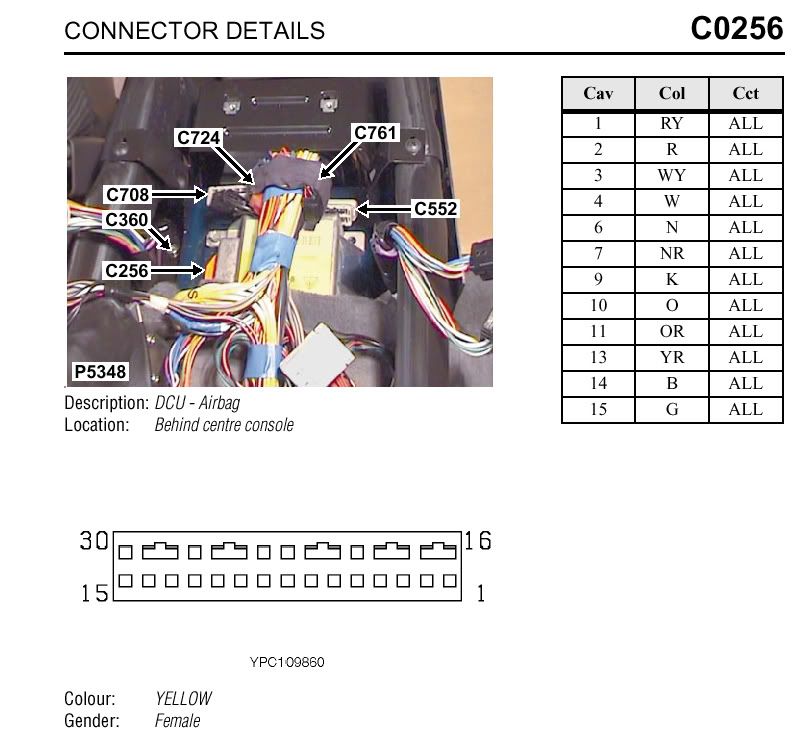

PM me your email address, and I'll send you the pdf of the Defender 2002 Electrical Library, which contains the connector details.
.
