L322 Condesor connection

Discussion in 'Range Rover' started by paulpdh, Aug 7, 2021.

< Previous Thread | Next Thread >
  1. paulpdh

    paulpdh Active Member

    Joined:
    Nov 26, 2005
    Posts:
    227
    Likes Received:
    79
    Location:
    Norfolk
    Anyone know how to break this line without destroying the block ? It's only held by an oring and bolt. It will not move. Need the bottom pipe off as the hose has split.... ty in advanced


    Attached Files:

  2. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,850
    Likes Received:
    3,312
    Location:
    North Manchester
    I'd start with a good soaking in WD40 for a day or so. Then if you can get the flats of a spanner on the back block to stop it moving too much while you attack the allen bolt.

    paulpdh likes this.
  3. paulpdh

    paulpdh Active Member

    Joined:
    Nov 26, 2005
    Posts:
    227
    Likes Received:
    79
    Location:
    Norfolk
    Allen bolt is completely free. It's not separating from the block. The pipe flange is stuck inside. Thanks

  4. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,552
    Likes Received:
    12,436
    Location:
    wirral and triquivijate
    With the bolt out does the clamp come off? Do you need to take both bolts out or are the clamps separate for each pipe?

    paulpdh likes this.
  5. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,850
    Likes Received:
    3,312
    Location:
    North Manchester
    IMO still worth a good soaking. With the bolt out it should turn a little with a spanner on each piece.


    paulpdh and tomcat59alan like this.
  6. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,552
    Likes Received:
    12,436
    Location:
    wirral and triquivijate
    Ah I see the setup now,a bit of rotation should break the grip of the o ring.;)

    paulpdh likes this.
  7. paulpdh

    paulpdh Active Member

    Joined:
    Nov 26, 2005
    Posts:
    227
    Likes Received:
    79
    Location:
    Norfolk

    Ok many tanks will go do it now. Cheers. I'll update

  8. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,850
    Likes Received:
    3,312
    Location:
    North Manchester
    I had to change the top pipe next to the rad that ran to the back of the engine bay. At least the engine was big enough to lie to get to the back :D

    paulpdh and tomcat59alan like this.
  9. paulpdh

    paulpdh Active Member

    Joined:
    Nov 26, 2005
    Posts:
    227
    Likes Received:
    79
    Location:
    Norfolk

    That's what I'm trying to achieve. I'm really hoping that one on the bulkhead is not as tightly stuck In. That will be a right butch to remove

  10. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,850
    Likes Received:
    3,312
    Location:
    North Manchester

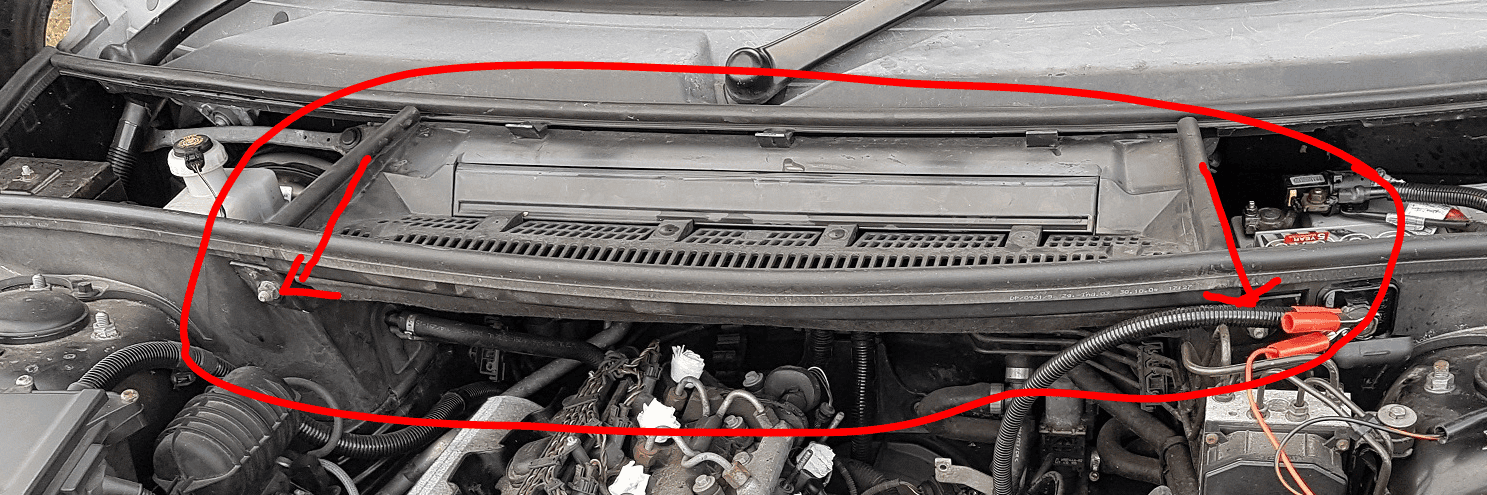

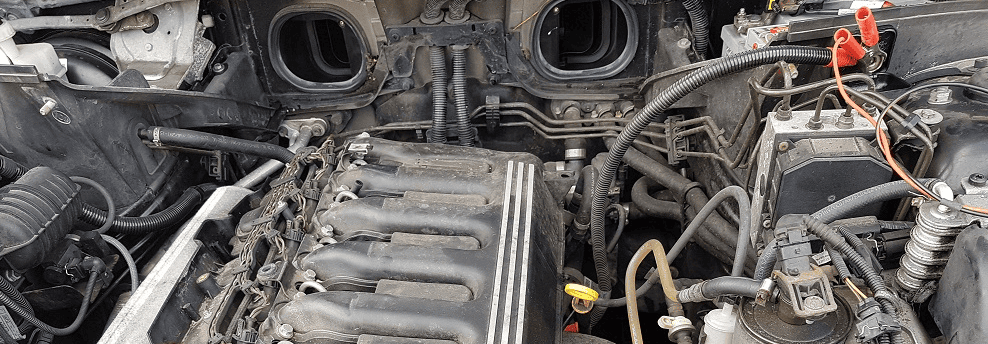

    Not sure if you know but it's probably easier to get to the bulkhead if you take this off, just a couple of bolts. After lying on the engine for 20 minutes I realised I could reach from the side :oops:



    paulpdh and tomcat59alan like this.
  11. paulpdh

    paulpdh Active Member

    Joined:
    Nov 26, 2005
    Posts:
    227
    Likes Received:
    79
    Location:
    Norfolk

    backinblack likes this.
  12. robhew86

    robhew86 Well-Known Member

    Joined:
    Mar 8, 2009
    Posts:
    1,331
    Likes Received:
    78
    Location:
    Beds
    Changed mine last year and had same issue.
    Just keep spraying it with a penetrating fluid, it's not the pipe o'ring itself that's stuck in the condensor, it's the two surface faces fused to one another.
    I used a flat head screwdriver to lever them apart very gently, but very carefull not to damage the pipe.

    paulpdh likes this.
  13. paulpdh

    paulpdh Active Member

    Joined:
    Nov 26, 2005
    Posts:
    227
    Likes Received:
    79
    Location:
    Norfolk
    Yes agreed same issue. Its really stuck together well. Nevermind will keep try.

    robhew86 likes this.
