Classic Seat Wiring

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
S

Schmarnst

New Member
Posts
134
Location
Leeds
Hi all,
Is anyone familiar with the wiring looms for the power seats in the vogue se? Ive gone and bought some coz they were immaculate (and cheap!) only to find that my wiring loom doesn't accomodate them.:doh:
Splicing them into the loom won't pose much of a problem, (obviously there will be a live and an earth) but there is a third wire and i dont know what its for, im guessing it would go to a relay of some form.
Anyone got any ideas?

Cheers,
James

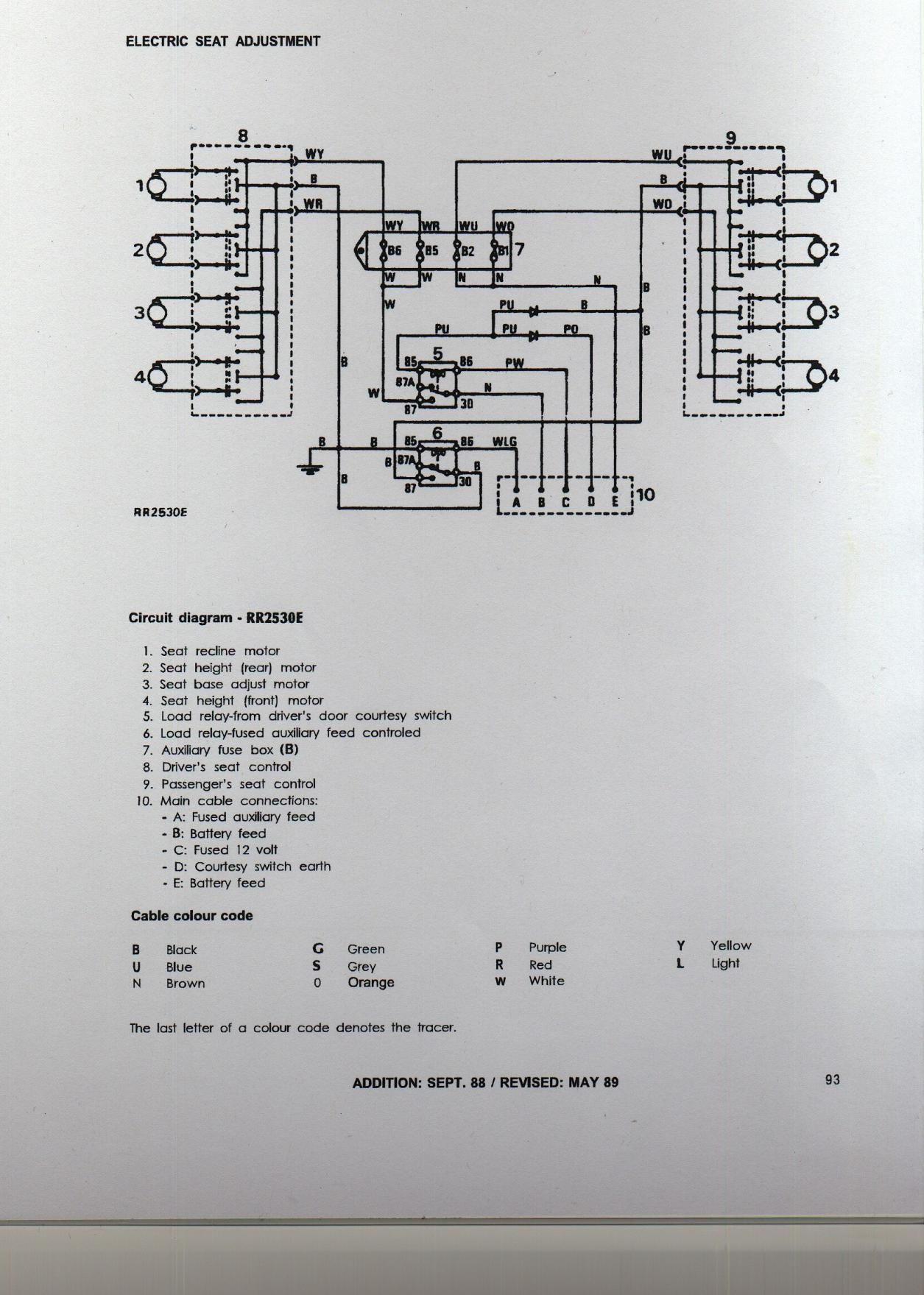

hope this is of help


Attachments

  • Scan-100923-0001.jpg
    237.4 KB · Views: 663
Cheers for the diagram, but the only connection on mine is simply a three pin plug trailing off the seat, the rest is all self contained

Are the colours white & blue, black and white & orange on one seat?

And white & yellow, black and white & red on the other?

If so these are the connections coming off boxes 8 & 9 in the diagram.

So you need the wiring, relays and diodes shown in the central part of the diagram.

Pete

just get em where you like it and leave the off , will save you having to spend ages getting them right where you like them again when that garage have had it :D

Just managed to waggle a live feed thru the bulkhead, so I'm just gonna put it straight to the battery, it's got it's own fuse box separate to the rest so it should be ok :$
