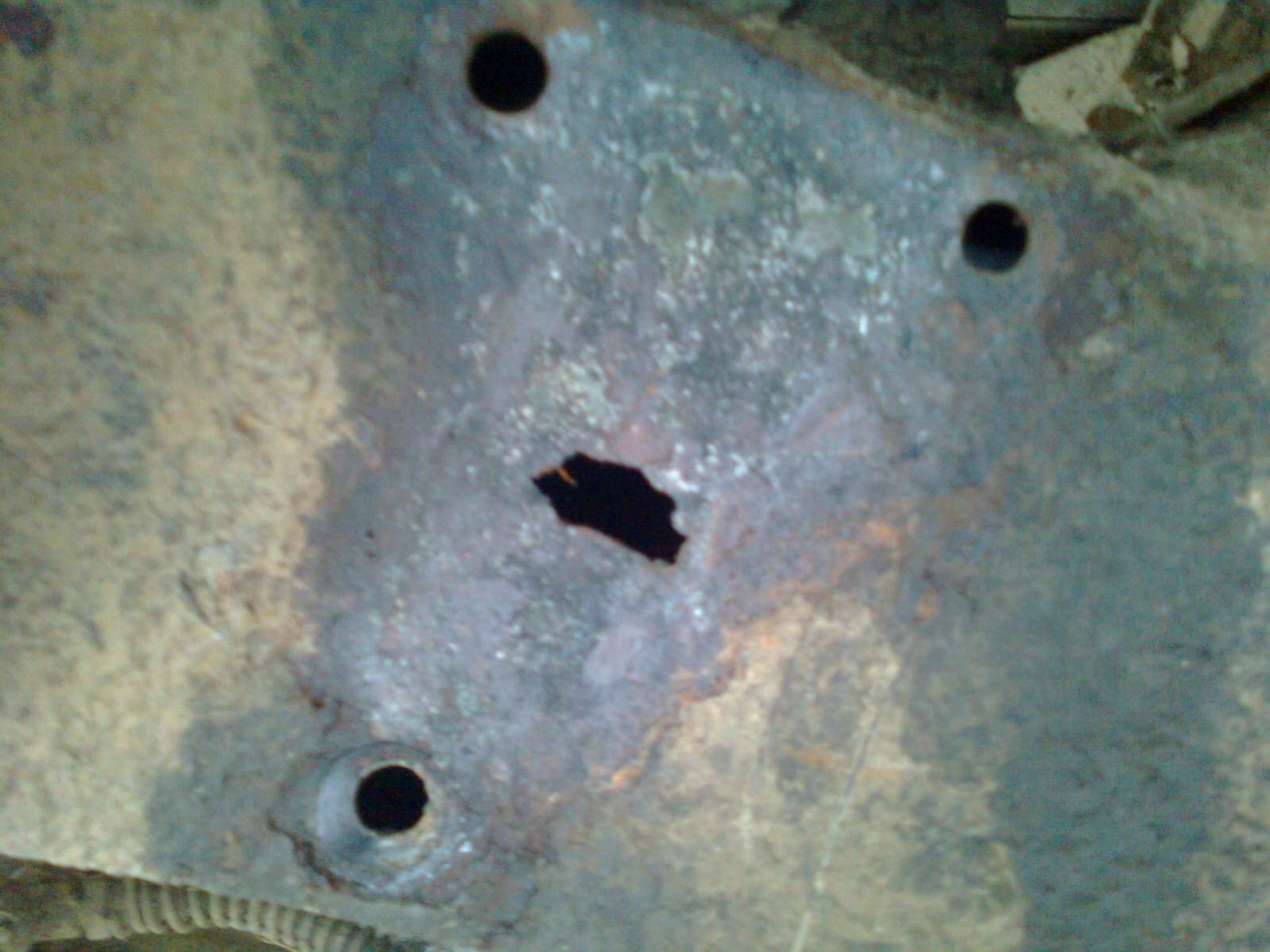

Am currently in the process of putting +5" terra firma shocks on and so hav to change the top rear shock mountings. however removed the rear right one to find a fookin big hole! (see pic) is this going to be repairable? havnt removd the left one but expect it will b the same



Attachments

•

  180.4 KB · Views: 253

Last edited: Nov 29, 2009

gemsdad

NOT BOTHERED.

Posts

67,807

Location

halfway between here and there.

• Nov 29, 2009

• #2

08mckerp said:

Am currently in the process of putting +5" terra firma springs on and so hav to change the top rear shock mountings. however removed the rear right one to find a fookin big hole! (see pic) is this going to be repairable? havnt removd the left one but expect it will b the same

Click to expand...

yes,just get it plated and re-drill the holes.



08mckerp

New Member

Posts

603

Location

Maidstone

• Nov 29, 2009

• #3

ok, cheers. whats best thickness plate to use? 3-4mm??



gemsdad

NOT BOTHERED.

Posts

67,807

Location

halfway between here and there.

• Nov 29, 2009

• #4

08mckerp said:

ok, cheers. whats best thickness plate to use? 3-4mm??

Click to expand...

well you are doing some serious off roading i take it,so i would go with the 4 mm myself.



bevhelee

Well-Known Member

Posts

1,151

Location

Bridgetown WA

• Nov 29, 2009

• #5

5 inch lift!!!



08mckerp

New Member

Posts

603

Location

Maidstone

• Nov 29, 2009

• #6

only a 2" lift but 5" shocks. hav relocation cones fitted. (or will do once ive fixd the hole)



bevhelee

Well-Known Member

Posts

1,151

Location

Bridgetown WA

• Nov 29, 2009

• #7

makes more sense, done the same but +4 inch shocks



LR90

Active Member

Posts

767

Location

Cheshire

• Nov 30, 2009

• #8

Just cut it out see how far it goes untill you hit good metal again! then acid it inside (well everywhere) Then red oxide then seal the red oxide with sum hammerite etc you must seal the red oxide as it is porous! weld the plate in re drill if necessary bobs ur uncle fannies ur aunt! job done!



08mckerp

New Member

Posts

603

Location

Maidstone

• Nov 30, 2009

• #9

is it worth cutting out the chassis or just welding a bit of plate directly over the top? as long as the plate is welded to gd metal



S

steve bain

New Member

Posts

614

Location

Devon, South hams

• Nov 30, 2009

• #10

cut it out or it will rust through in a year or so. thats why mot welding always fails because they often just plate over the rust. in theory though if the rust is killed chemically it shouldn't matter.



08mckerp

New Member

Posts

603

Location

Maidstone

• Nov 30, 2009

• #11

y is nothing eva simple!! also any ideas wher to get rust killer other than tinternet??



S

steve bain

New Member

Posts

614

Location

Devon, South hams

• Nov 30, 2009

• #12

i'd buy an angle grinder and cut it out myself. rust killer can be bought from most outlets like halfords. i personally wouldn't use it though.



08mckerp

New Member

Posts

603

Location

Maidstone

• Nov 30, 2009

• #13

yer will hopfully get started on it this afternoon.



LR90

Active Member

Posts

767

Location

Cheshire

• Nov 30, 2009

• #14

Rust killer from halfords is poo! If you want proper stuff acid ring these guys

Just say you want a tin of the white rust eating acid

BS-Supplies 01782819638 if for sum reason you don't get through just let me no as they are changing premises atm

Ask for woz he will sort you out no mither!



iannotts

New Member

Posts

4,401

Location

East midlands,

• Nov 30, 2009

• #15

i would cut it out with the plasma cutter :mooning:
