Can anyone give me some measurements please?

rooster_UK · May 7, 2010

Hi all,
Down at the track, quite a few lads use thier Landy's for pulling broken down vehicle back to the pits.
I am looking at making some quick fit light bars and need some measurements.
I would like the width of the roof from gutter to gutter at the rear and the height from the gutter to the top of the roof.
If you think of a roof rack fixing, thats what I am trying to achieve.

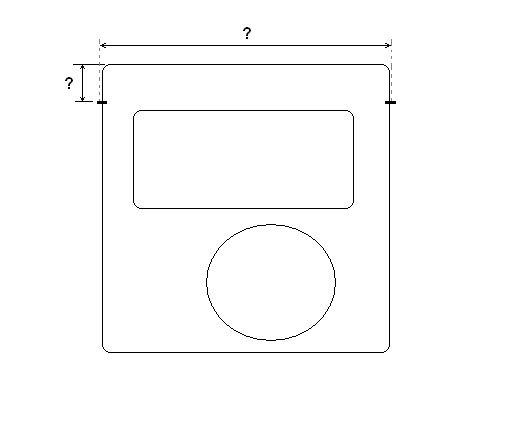

I hope the picture shows you what I am after?

Karl

rooster_UK · May 7, 2010

I Forgot to add, The majority are 200TDi's, and one defender (110 I think, if thats correct?)

wickford90 · May 7, 2010

why arse about making them you can buy them new delivered off ebay for under 40 quid
just got one my self along with four 8" x 4" chrome spots total was about £140

rooster_UK · May 8, 2010

wickford90 said:
why arse about making them you can buy them new delivered off ebay for under 40 quid
just got one my self along with four 8" x 4" chrome spots total was about £140

Coz I can make one for nothing and the club is just reforming after a bad financial problem.

Not to worry then, I will get the measurments from somewhere else, sorry I asked!

G-man · May 8, 2010

if you made them adjustable you could fit them to any vehicle, i would take measurements but i had a series 3 with a truck cab

wickford90 · May 8, 2010

if you have access to the landy get a tape measure and measure at the back between the gutters , to measure the height from gutter to top of roof put a straight edge on the roof and measure down to gutter. If you have'nt got the landy to hand i'll measure my 90 tomorrow if you want.

barmatt · May 8, 2010

rooster_UK said:
I Forgot to add, The majority are 200TDi's, and one defender (110 I think, if thats correct?)

I'm guessing the 200's you're on about are disco's? if so I'll measure mine in the morning.

rooster_UK · May 8, 2010

barmatt said:
I'm guessing the 200's you're on about are disco's? if so I'll measure mine in the morning.

Thank you very much Barmatt.
The Landy is 80 miles away in North Wales, I am in Wigan, so I just can't nip round and measure it.
Thank you for any help. I hope you understand the picture, knowing what measurements required?

G-man said:
if you made them adjustable you could fit them to any vehicle, i would take measurements but i had a series 3 with a truck cab

I thought about that, but they will only be going on a Landy, still in my mind to do some that way though,
Thanks.

G-man · May 8, 2010

rooster_UK said:
Thank you very much Barmatt.
The Landy is 80 miles away in North Wales, I am in Wigan, so I just can't nip round and measure it.
Thank you for any help. I hope you understand the picture, knowing what measurements required?

no sense of adventure you

rooster_UK said:
I thought about that, but they will only be going on a Landy, still in my mind to do some that way though,
Thanks.

i was thinking that way you could make a single pattern and it will fit both a defender and a discovery...or any thing with a gutter

Paul D · May 8, 2010

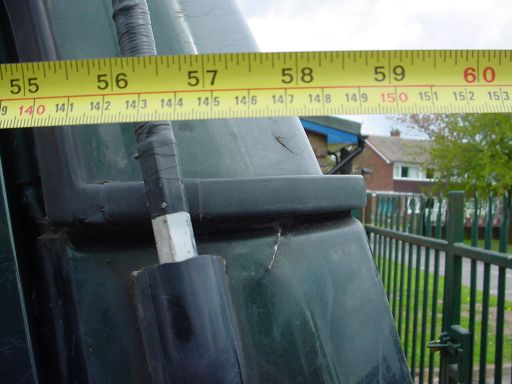

Hope this helps ...

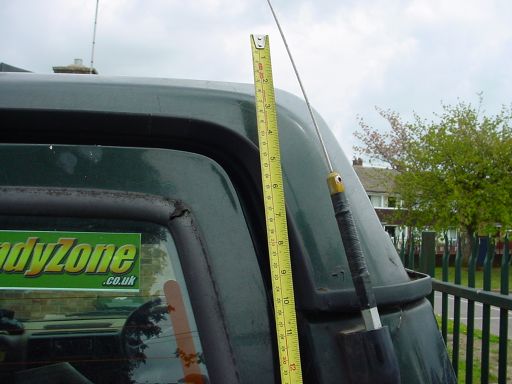

Tape end is held at centre of gutter, and about an inch above highest point of roof ...

rooster_UK · May 8, 2010

Paul, thanks very much, that gets me over a big hurdle.

Cheers

Karl
