Camshaft query

Scotty75 · Mar 18, 2024

Hi, I am new to the forum although a fairly seasoned LR enthusiast with a previous Lightweight rebuild. Currently I run a 2008 Defender 110 xs station wagon and am restoring a series 2A 88.

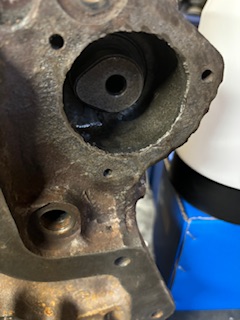

I stripped the engine and had it rebored etc and new camshaft bearings. However, I am not sure what the threaded hole at the rear end of the camshaft is for. Have I forgotten something when I took it apart or is it simply there to help balance the shaft?

marjon · Mar 18, 2024

First welcome

.

So which engine? I guess we are talking the 2a?
Pics help alot , but am sure somebody will grasp what you are asking.
It isn't me

.

We like pics of the whole process. well actually we just like pics of LRs

.

J

Scotty75 · Mar 18, 2024

marjon said:
First welcome .

So which engine? I guess we are talking the 2a?
Pics help alot , but am sure somebody will grasp what you are asking.
It isn't me.

We like pics of the whole process. well actually we just like pics of LRs.

marjon said:
First welcome .

So which engine? I guess we are talking the 2a?
Pics help alot , but am sure somebody will grasp what you are asking.
It isn't me.

We like pics of the whole process. well actually we just like pics of LRs.

J

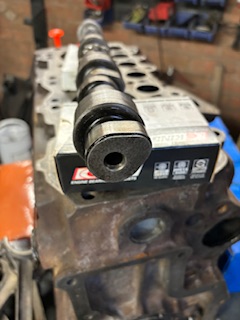

It’s a standard two and a quarter petrol. I was wrong the hole is not threaded. Therefore I am assuming that end of the camshaft just gets the cover plate.

marjon said:
First welcome .

So which engine? I guess we are talking the 2a?
Pics help alot , but am sure somebody will grasp what you are asking.
It isn't me.

We like pics of the whole process. well actually we just like pics of LRs.

J

In fact the hole is not threaded. I am assuming the rear camshaft cover seals that end and the front thrust bearing holds it in position.

boguing · Mar 18, 2024

Scotty75 said:
It’s a standard two and a quarter petrol. I was wrong the hole is not threaded. Therefore I am assuming that end of the camshaft just gets the cover plate.

In fact the hole is not threaded. I am assuming the rear camshaft cover seals that end and the front thrust bearing holds it in position.

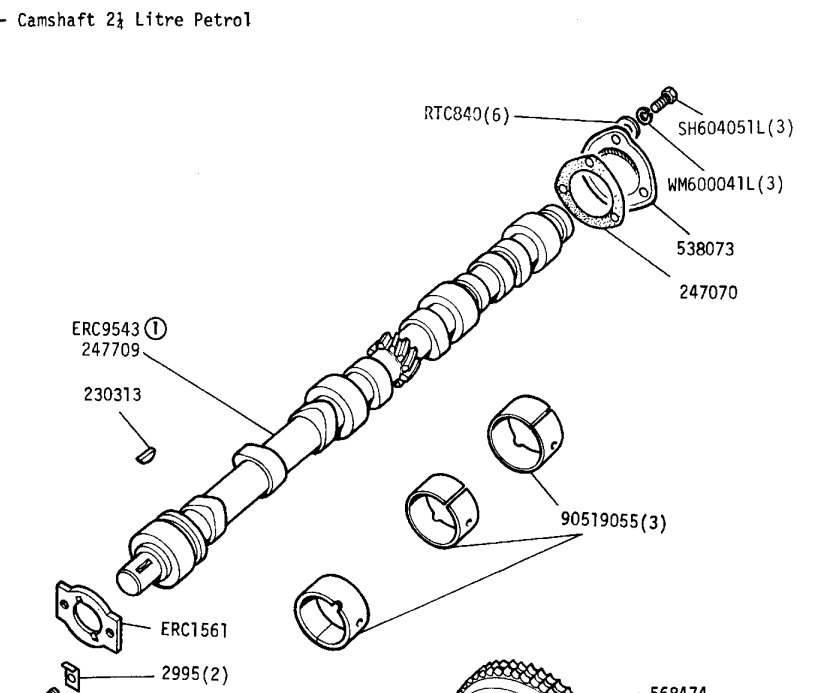

Yup, confirmed by the parts book. Did you get the camshaft bearings in ok? I ended up getting a bit of tube turned down to do mine - after a couple of fails trying the easy way!

Scotty75 · Mar 19, 2024

boguing said:
Yup, confirmed by the parts book. Did you get the camshaft bearings in ok? I ended up getting a bit of tube turned down to do mine - after a couple of fails trying the easy way!

View attachment 313006

Thanks for that. Not sure where bearings came from. Fitted by Dave Rushton (Engines). They waited a long time to source them.

steve2286w · Mar 19, 2024

The hole might be there to help align the camshaft when inserting it
Did the new bearings need boring out to suit the camshaft

boguing · Mar 19, 2024

steve2286w said:
The hole might be there to help align the camshaft when inserting it
Did the new bearings need boring out to suit the camshaft

Mine didn't (from Turners).

steve2286w · Mar 19, 2024

Yes think I’ve read some do some work ok without machining

boguing · Mar 19, 2024

steve2286w said:
Yes think I’ve read some do some work ok without machining

Off the top of my head I don't recall the green official manual mention line boring.

If anyone wants my insertion tool they can have it for the cost of postage.

steve2286w · Mar 19, 2024

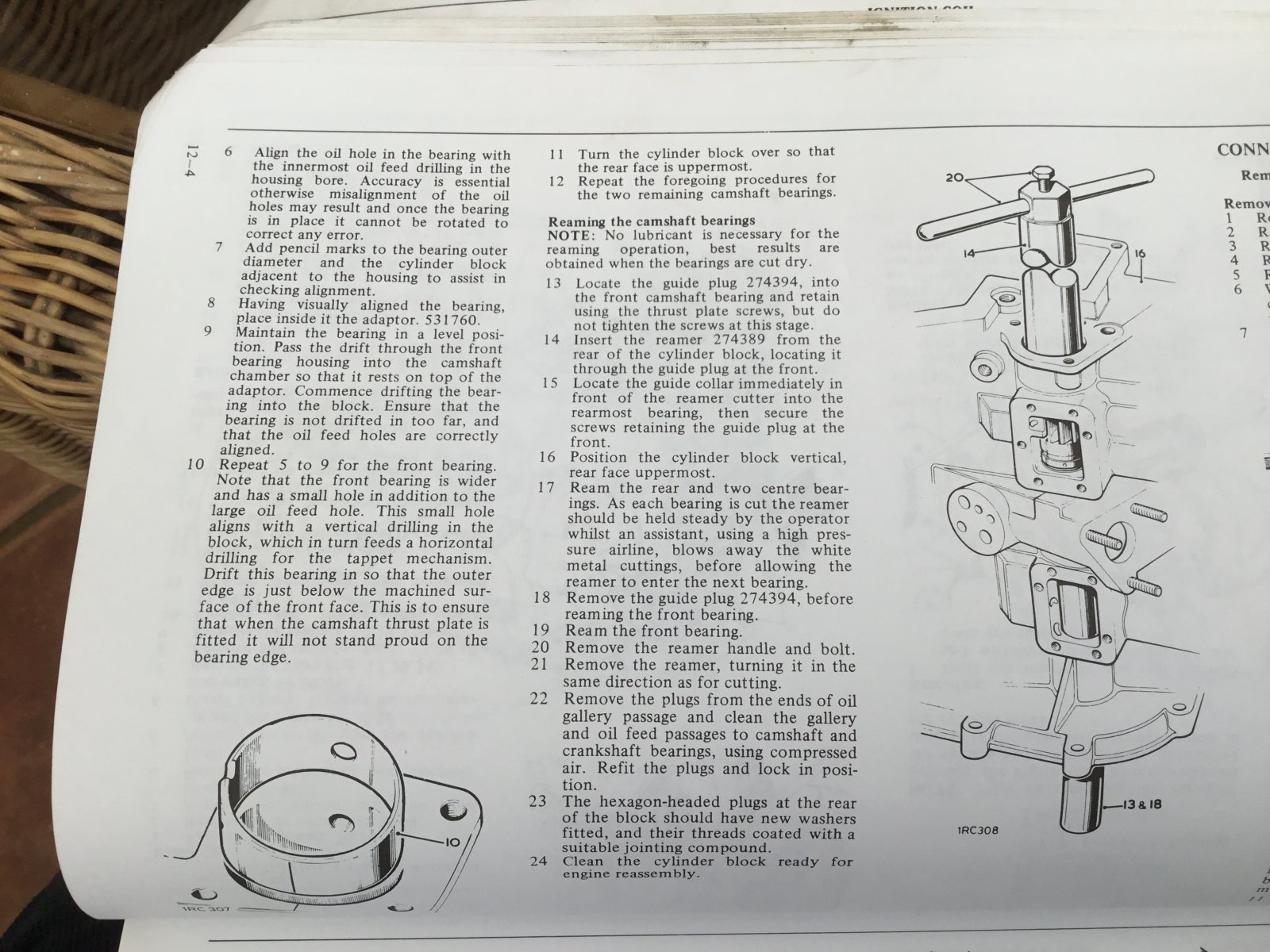

It mentions it 12-3, also in the turners articles which I found very useful when rebuilding mine

News

Turner Engineering - Specialises in Land Rover Engine Parts & ✔ Shop for Genuine Quality Parts online & Enjoy Fast, Worldwide Delivery!

www.turnerengineering.co.uk

But also aware you can get them “pre reamed” ready to use
I didn’t change mine as they looked fine, but note the text mentions really important to get the oil hole in shell lined up correctly

boguing · Mar 19, 2024

Another example of failing memory, but emails confirm that I bought two sets of pre-finished.

And I do remember the oil hole bit!

Scotty75 · Mar 19, 2024

boguing said:
Mine didn't (from Turners).

I suspect that is why the hole is there - to align shaft. Problem was I had been abroad for two months in between and had forgotten how it looked on removal - needless to say the one photo I did not take
