Cab light wiring...
- Thread starter jmattley
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
MartinBird
New Member
- Posts
- 112
can't you just bell it out with a multi meter??
Can you get a pic of the front so i can see the switch positions?
It doesn't look too hard to work out, you could just try it............
Can you get a pic of the front so i can see the switch positions?
It doesn't look too hard to work out, you could just try it............
Last edited:
jmattley
New Member
- Posts
- 622
- Location
- Ibstock, Leicestershire
If I could find the bloody thing! The top position is OFF, bottom is ON so I'm assuming the middle is ON with doors open.
MartinBird
New Member
- Posts
- 112
does it earth through the mounting screw???
MartinBird
New Member
- Posts
- 112
I thought that the door switches supplied the earth to the lamp, so you run a + to the lamp.
MartinBird
New Member
- Posts
- 112
right i got it!!! I think!

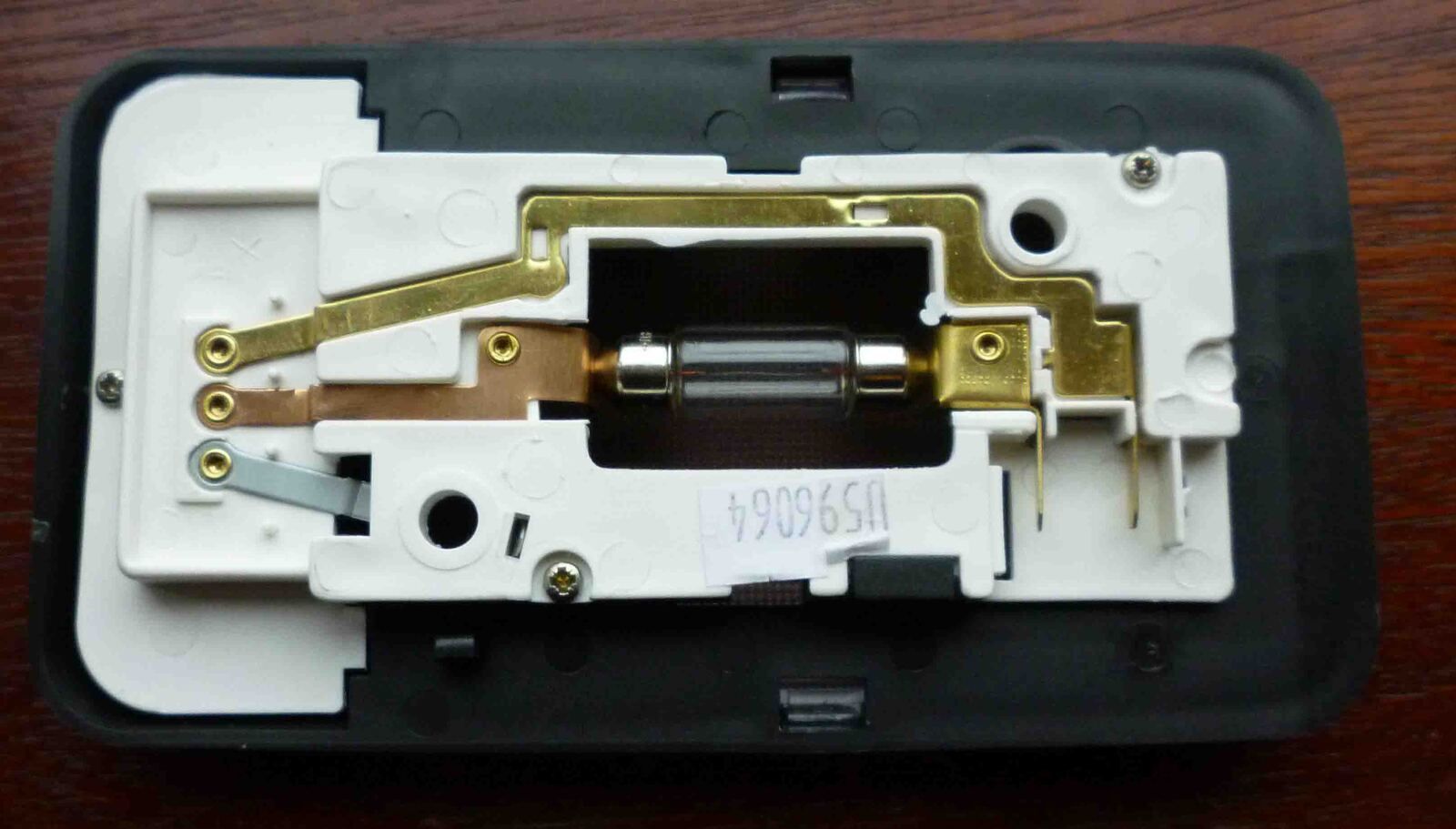

terminal on the left is positive, terminal on the right goes to door switches, then when the switch is in the other position it uses the earth through the lamp where the mounting screw goes, therefore leaving it on, whether the doors are open or not!!!
terminal on the left is positive, terminal on the right goes to door switches, then when the switch is in the other position it uses the earth through the lamp where the mounting screw goes, therefore leaving it on, whether the doors are open or not!!!
MartinBird
New Member
- Posts
- 112
Yes thats definately it. just rechecked the pic!!!
jmattley
New Member
- Posts
- 622
- Location
- Ibstock, Leicestershire
Cheers mate!
MartinBird
New Member
- Posts
- 112
HTH!!! Good luck!
