P38A Brake pipes

Discussion in 'Range Rover' started by pete12345, May 25, 2020.

< Previous Thread | Next Thread >
  1. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy

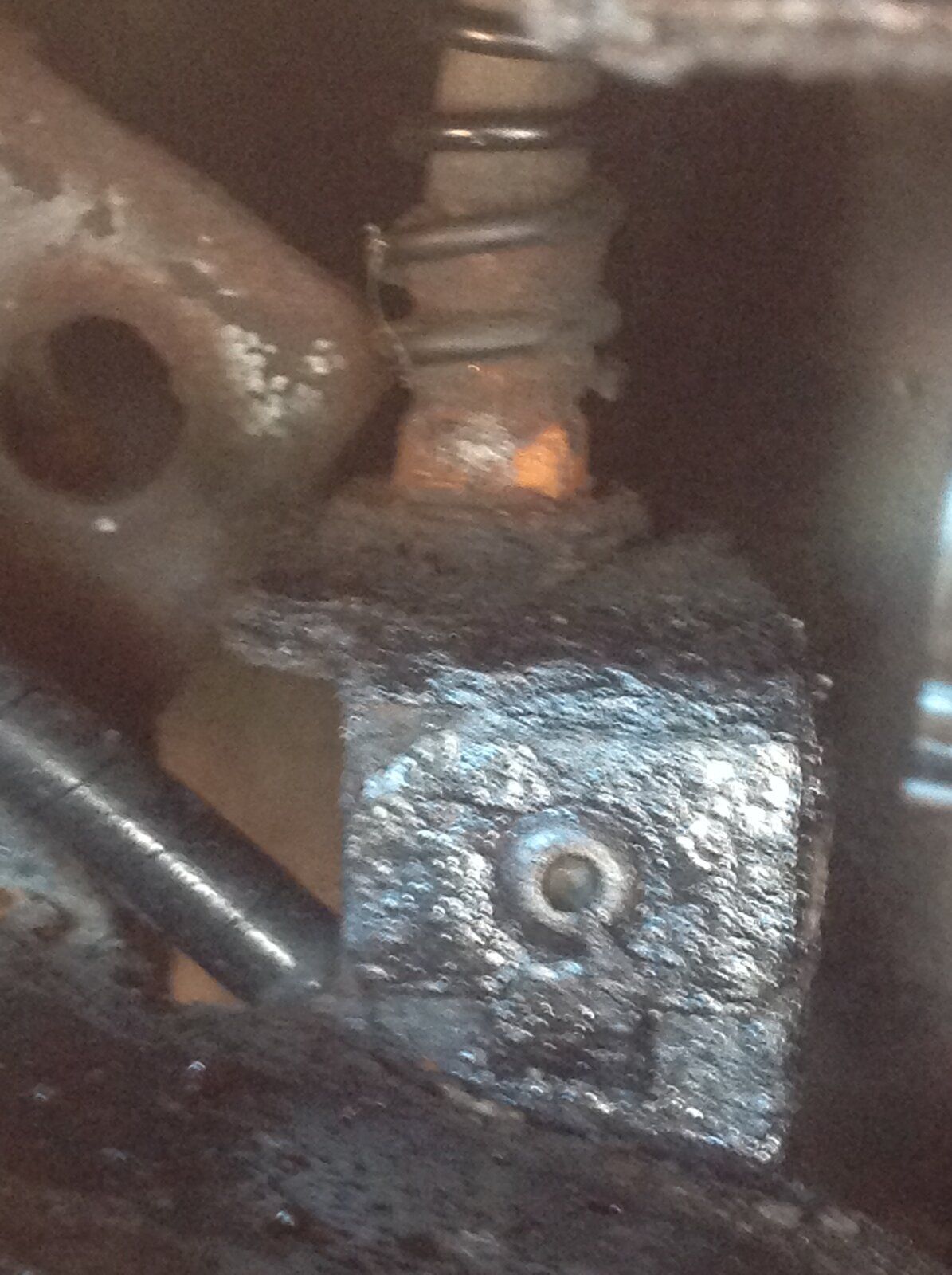

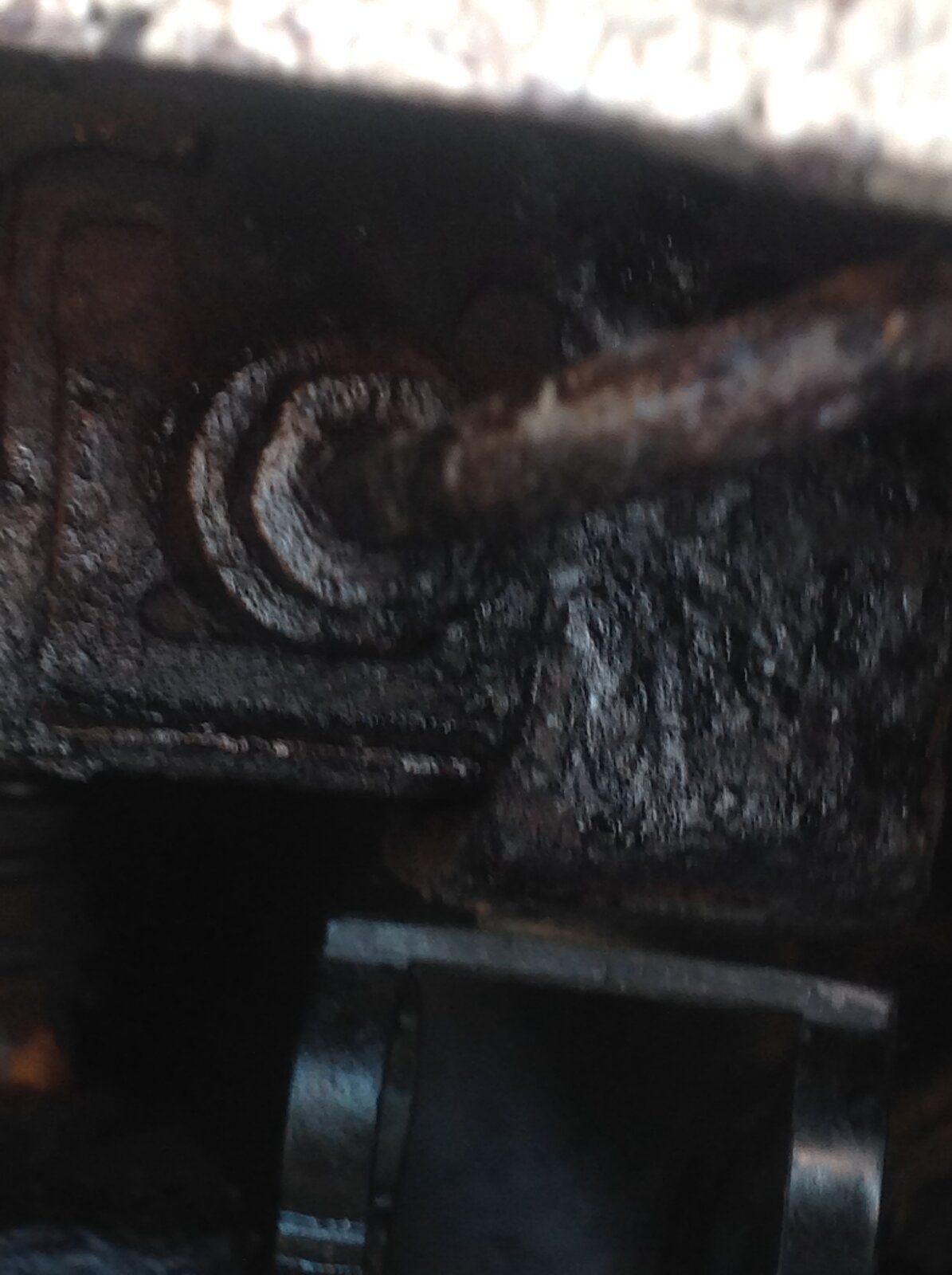

    how the hell are you supposed to get a spanner on this nut I had to cut off the lower ones but can't get into it and is it supposed to be the same size as the bottom pic cheers for advice


    Attached Files:

  2. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    12,662
    Likes Received:
    3,844
    Location:
    wirral and triquivijate
    If your not replacing the flexes then use side cutter pliers to cut the brake pipe then 11mm double deep socket on the union nut. If you are replacing the F lexies just cut the pipe,lever out the sprung retaining fork.

  3. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,621
    Likes Received:
    4,519
    Location:
    heathrow
    That connection if its the one that fits on to the pipes i made in the pics, is a flat at a time with a spanner, but would be best to change the flexi as well and just cut the pipe and pull clip and flexi, new ones are about £8 each and you need the short ones as listed from chassis no va346794 , part no anr5916


    Boy that looks rust in there:eek:

  4. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Yer was going to replace the lot

  5. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy

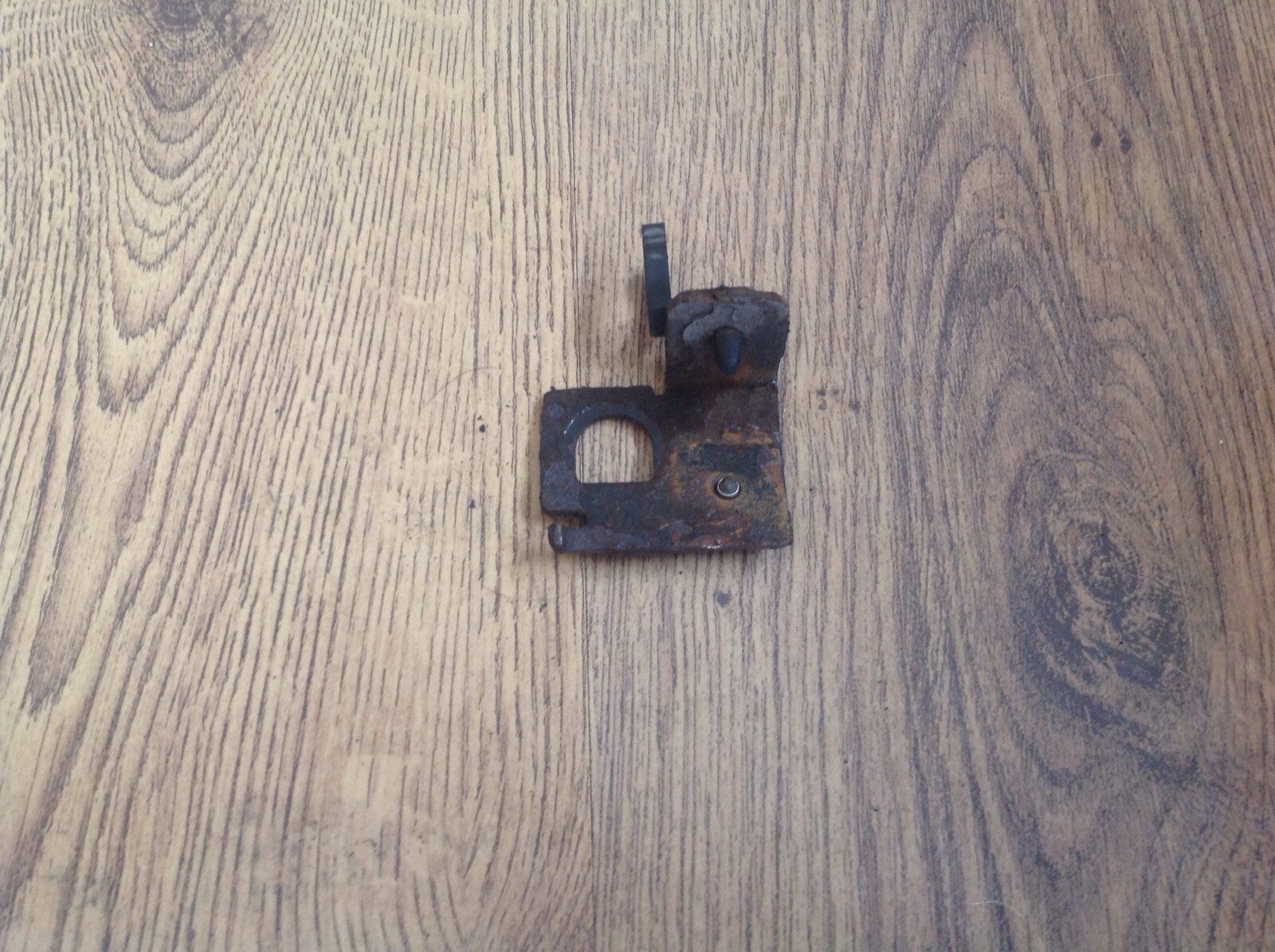

    Got the pipe cut and a 11mm socket on it twisted to undo it and the rivet holding the bracket broke result. Is there any reason why you cannot run a made up flexi from that point all the way to the calliper cutting out that poxy little bit of awkward pipe


    Attached Files:

  6. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    But +1 on what grrrrr said on the rusty pipes this furlough has probley saved me loosing all my braking one day check under your cars

    Grrrrrr likes this.
  7. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    13,963
    Likes Received:
    3,787
    Location:
    Buckinghamshire, UK. ('95 DT)
    I had a look for the stainless braided kit for the later models but couldn't find it. Looks like you just have to fit oversized hoses or buy the rubber ones.

    Mole-grips were used a lot with getting my flexis out!

  8. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,864
    Likes Received:
    4,913
    Location:
    Trapped inside my head @ LZ asylum
    Look what youve done Brian :rolleyes:

    They’re all at it :D

    brianp38dse likes this.
  9. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,621
    Likes Received:
    4,519
    Location:
    heathrow

    Sorry :D
    but if it stops a few brake fail incidents its a good thing:D

    RangeRoller dt and Grrrrrr like this.
  10. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,621
    Likes Received:
    4,519
    Location:
    heathrow
    Pete if your having trouble with them i can send you a pair ready to fit,
    i was looking at doing sets but having done Grrrrrr`s there was no guarantee what was needed, we were looking at having a get together to do brakes but your past that point now.

  11. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    I've the long flexis have the same fitting on the end of the short ones Mabey can get some made up from a motorcycle supplier I saw a company called Phoenix I think that make up pipes I'm struggling to understand why they would put in that short peice of copper pipe and not go that little bit further with a flexi

  12. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    You probably saved a few accidents Brian

  13. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy

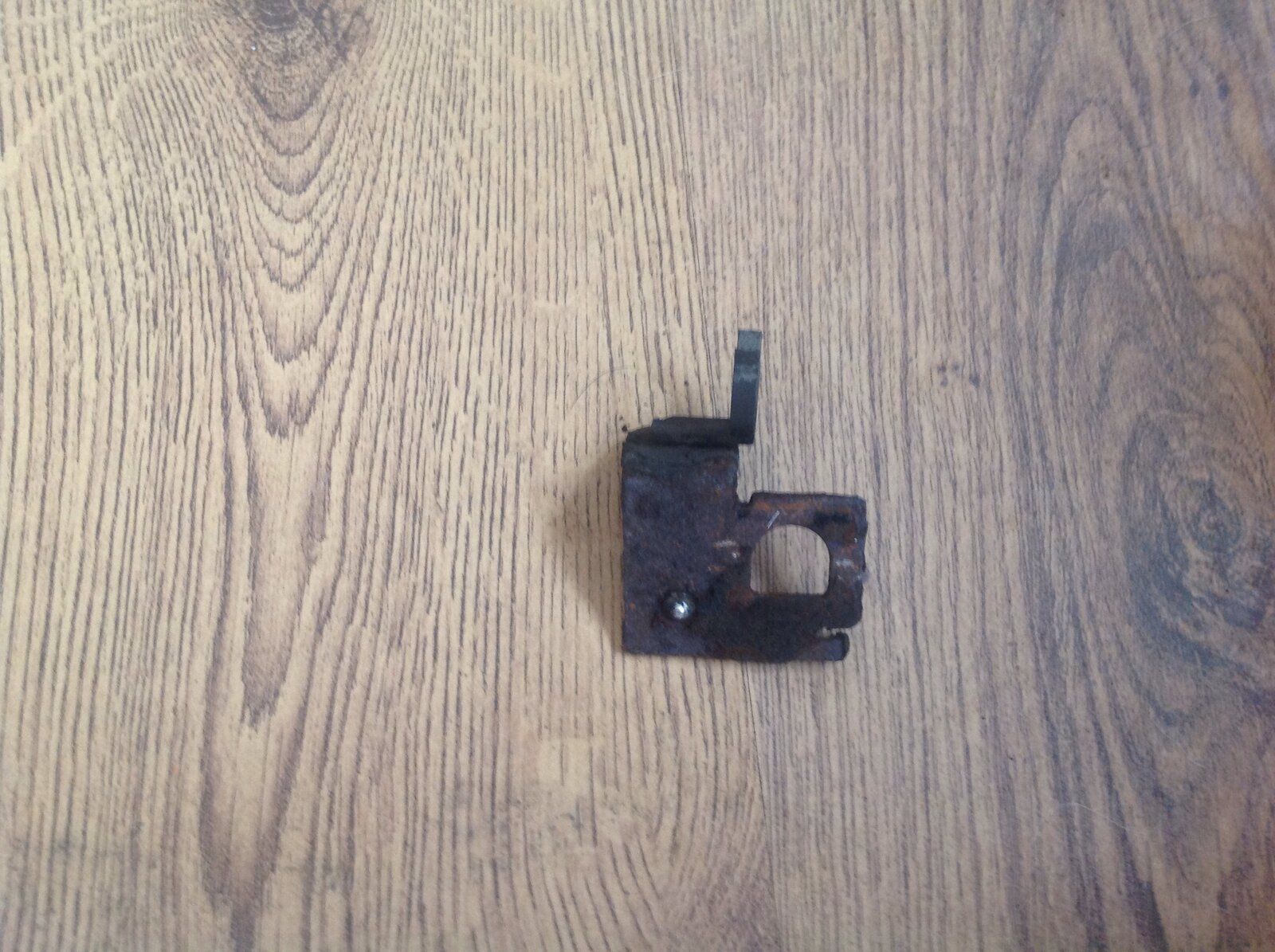

    Does anyone know where I can get the bracket that holds the down pipe on the rear brakes they are pop riveted to the chassis and mine broke off trying to release the top nuts also my pipes that ran along the car were rusty for about 2 to 3 ft


    Attached Files:

  14. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    13,963
    Likes Received:
    3,787
    Location:
    Buckinghamshire, UK. ('95 DT)
    I got away with it but backup plan was some drywalling ties or maybe some angle-iron and a bit of fettling.

  15. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,621
    Likes Received:
    4,519
    Location:
    heathrow
    Remove the pop rivet clean it up paint it and rivit it back on, mind if its drivers side access may be to tight, you could use a self taping bolt or screw.

  16. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Yer was thinking that Brian they are cleanable I suppose but was just going to replace but I've can't get anymore I will clean up

  17. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Can anyone tell me the pipe size for the brake lines just want to double check is it 3/16 thanks

  18. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    13,963
    Likes Received:
    3,787
    Location:
    Buckinghamshire, UK. ('95 DT)
    Yes.

  19. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Cheers

    Grrrrrr likes this.
  20. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    13,963
    Likes Received:
    3,787
    Location:
    Buckinghamshire, UK. ('95 DT)
    kunifer, copper-nickel stuff. £18 from Allparts for 25'. You need 2 rolls to do the rears.

    RangeRoller dt and Tenebreaux like this.
