Brake pipe dilemmas

Discussion in 'Defender 90 / 110 / 130' started by congo181, Sep 9, 2021.

< Previous Thread | Next Thread >
  1. congo181

    congo181 Well-Known Member

    Joined:
    Dec 26, 2007
    Posts:
    263
    Likes Received:
    150
    Location:
    Maidstone, Kent, U.K.
    Some of the brake pipes on my ‘87 110 need replacing.
    Should I:
    A) buy individual made-up pipes as required
    B) buy an Automec pipe set
    C) buy a set of brake pipe tools and make my own.

    C) would be my preferred option but how much do I need to spend to get Tools that are going to work.

  2. 110tim

    110tim Member

    Joined:
    Dec 22, 2015
    Posts:
    35
    Likes Received:
    11
    Location:
    Maldon
    when I did mine many years ago I used a Sealey brake pipe flaring tool and cupro nickle pipe, was easy enough to do, put some anti seize paste on the fittings but keep it out of the pipework, you will need to know whether the set up is metric or imperial if you are going to change the cap nuts

  3. congo181

    congo181 Well-Known Member

    Joined:
    Dec 26, 2007
    Posts:
    263
    Likes Received:
    150
    Location:
    Maidstone, Kent, U.K.
    Thanks Tim. I’ll look at the sealer kit. The Halfords looks kind of Ok too.
    How would I find out if it’s metric or imperial? I thought that all the defender pipes were 3/16” with metric fittings but…

  4. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    8,602
    Likes Received:
    7,052
    Location:
    Shropshire

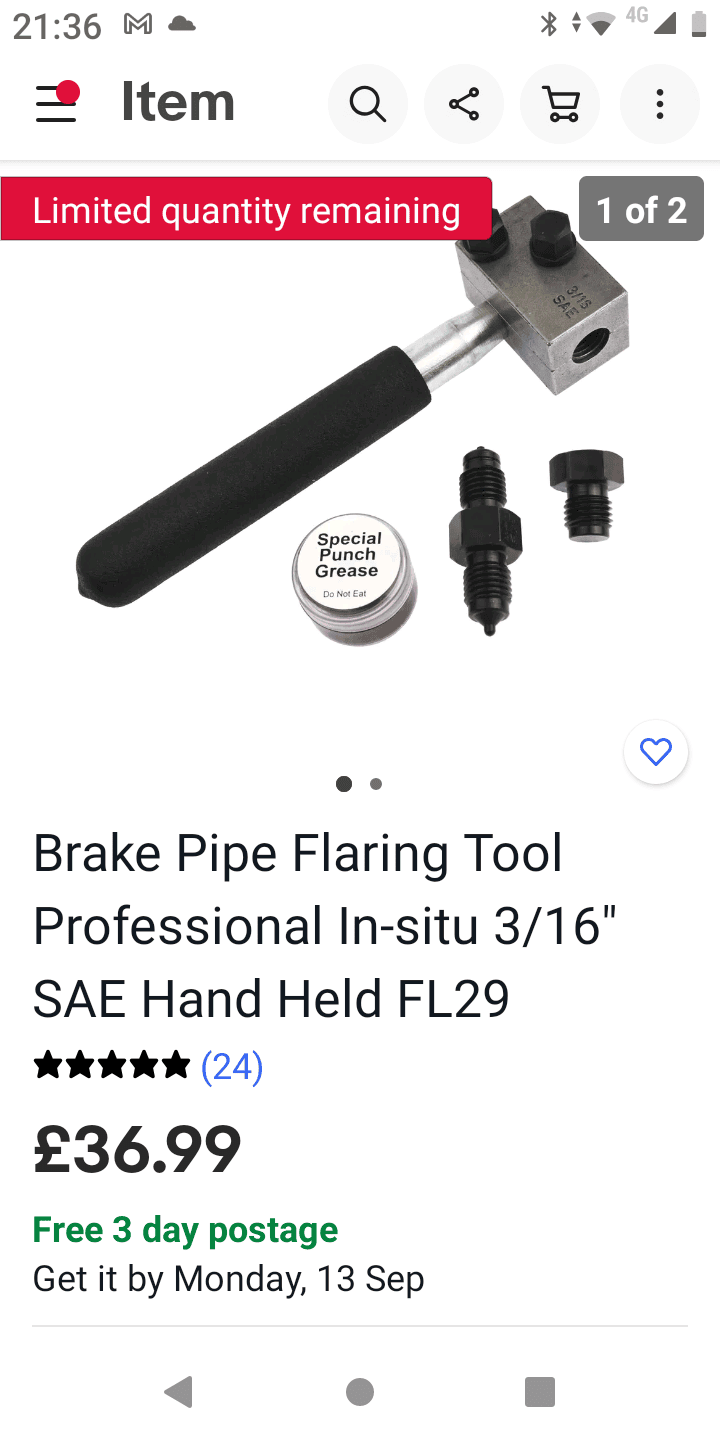

    An excellent tool is a shade under £40.
    Fittings are, M10x1.
    Pipe 3/16".
    I can't for the life of me remember what the flare tool is called so I'll go search..

    congo181 likes this.
  5. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    8,602
    Likes Received:
    7,052
    Location:
    Shropshire

    wireman and meego like this.
  6. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,748
    Likes Received:
    3,700
    Location:
    Far away from you!!
    I think it’s called a ‘brake pipe flaring tool’ :D

    Make your own from cupronickel, also think about buying The straightening tool then you can dress the straight bits so they look really neat

    Flossie and congo181 like this.
  7. congo181

    congo181 Well-Known Member

    Joined:
    Dec 26, 2007
    Posts:
    263
    Likes Received:
    150
    Location:
    Maidstone, Kent, U.K.
    Thanks
    Thanks Flossie

  8. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,576
    Likes Received:
    14,934
    Location:
    Current
    Make your own, it is a great skill to have
    Always worth having 3/8 and metric fittings as you never what the previous owners gave been up to!
    If old fittings are good I quite happily use them again.

    congo181 and flat like this.
  9. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,507
    Likes Received:
    1,535
    Location:
    Warwick
    Definitly make your own. once you have the tools and some fitting and pipe on the shelf a potentially show stopping breakdown or broken pipe become and 20min job to rectify. Several times I have had pipes break trying to remove calipers (wheel bearing changes etc) and once I have the jack slip when removing the fuel tank on the 110 and crush the pipe on the rear axle. All would have been expensive and time consuming vehicle off the road instances, but instead just became an annoyance and 20min extra work.

  10. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    8,602
    Likes Received:
    7,052
    Location:
    Shropshire
    This^^^^^^
    My 110 is my only transport, it's happened to me at least 6 times over the years, long walk to my nearest motor factors then a long walk back @ £15 a pipe soon woke me up but cheap and good flaring tools weren't easily available then.

  11. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,507
    Likes Received:
    1,535
    Location:
    Warwick
    That is the same with me. 110 was my daily drive and I could not afford it to be off the road.

    congo181 likes this.
  12. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,654
    Likes Received:
    1,739
    Location:
    west wales coast
    Been making my own brake pipes up for many years, one of the first diy jobs I learned. Get yourself a kit as above. Do not worry about making perfect bends in your new tube just ensure the ends are fitted correctly. The fine thread is easy to cross thread, put in by hand a couple of turns and even with a spanner little effort is needed to turn them in the rest of the way. Also make sure you have pipe secured to the axle/chassis

    mick 1986 and congo181 like this.
  13. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    5,162
    Likes Received:
    4,793
    Location:
    Sligo,Wild West of Ireland.
    That's the one I got. Cheap and simple. Came in handy when the wife's car failed mot on corroded brake pipes. Paid for itself. I also got a bending tool just to satisfy my ocd :)

  14. congo181

    congo181 Well-Known Member

    Joined:
    Dec 26, 2007
    Posts:
    263
    Likes Received:
    150
    Location:
    Maidstone, Kent, U.K.
    My pipe tool arrives today so I thought I’d give it a go. Sadly it doesn’t seem to be any good as the pipe clamp hole is not in the centre of the swager.
    The formed end is always poorly made. Bah.
    57FC9A56-723E-4FEE-B2EF-042CF94D5A5B.jpeg FDA0EDD7-DC95-4D28-80A0-CF4E8FFCF001.jpeg 9D69C25B-0ACB-4D6B-8B7B-4BC3D3D1EE99.jpeg

  15. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    2,293
    Likes Received:
    667
    Location:
    monkeyhangerland
    That’s**** send it back , I got one of these off the widow of mechanic who lived next door amongst other tools , it’s so easy just clamp in vice and gives good results , maybe not the quickest but it’s almost meditation doing it , I originally bought copper pipe but that goes a funny colour so recently bought copper nickel and replaced the earlier ones , used brass fittings too so,they don’t rust in place


    Attached Files:

  16. Tenebreaux

    Tenebreaux Well-Known Member Full Member

    Joined:
    Sep 28, 2019
    Posts:
    2,533
    Likes Received:
    3,296
    Location:
    Armagh
    This is the flare tool I have. Quality is excellent.


  17. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,654
    Likes Received:
    1,739
    Location:
    west wales coast
    Just purchased a Draper 51762 DP brake flair set, the same as my old worn out one after 20 plus years use.

  18. congo181

    congo181 Well-Known Member

    Joined:
    Dec 26, 2007
    Posts:
    263
    Likes Received:
    150
    Location:
    Maidstone, Kent, U.K.
    Only suitable for soft copper and aluminium though. Kunifer is quite a lot harder than straight copper.

    flat likes this.
  19. Tenebreaux

    Tenebreaux Well-Known Member Full Member

    Joined:
    Sep 28, 2019
    Posts:
    2,533
    Likes Received:
    3,296
    Location:
    Armagh
    I have one of those anvil types, much prefer the handheld one.

  20. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,576
    Likes Received:
    14,934
    Location:
    Current
    Copper brake pipes are banned in some countries, you want Kunifer.
