P38A Brake pipe connection

Discussion in 'Range Rover' started by pete12345, Jul 5, 2020.

< Previous Thread | Next Thread >
  1. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,393
    Likes Received:
    312
    Location:
    Isle Sheppy
    does it matter what pipe goes where at the front end connection on the bulkhead for the rear brakes I forgot to check when taking them off cheers

  2. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,127
    Likes Received:
    11,611
    Location:
    Preston Lancs.
    It certainly does if you have traction control fitted.

  3. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,393
    Likes Received:
    312
    Location:
    Isle Sheppy

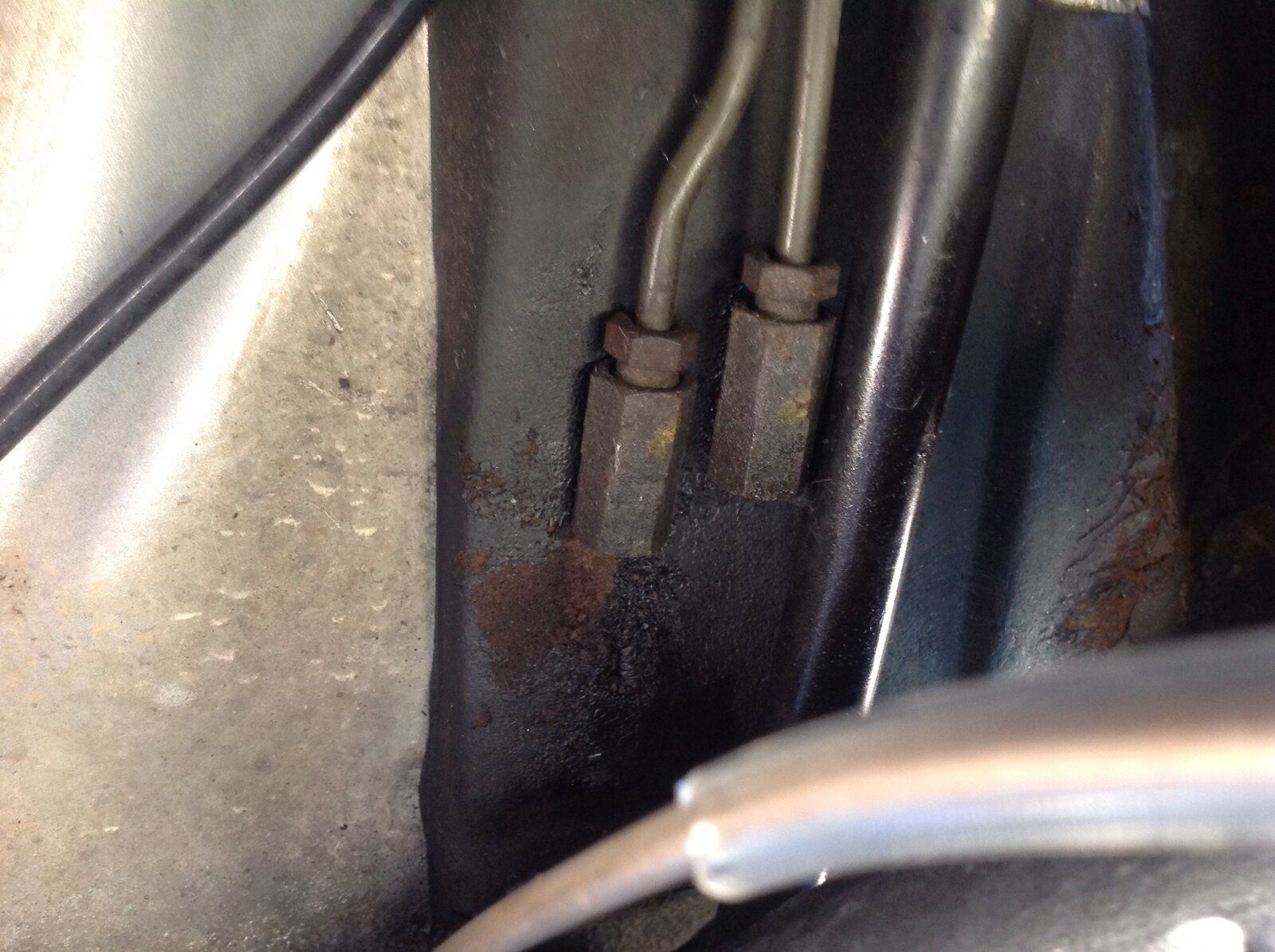

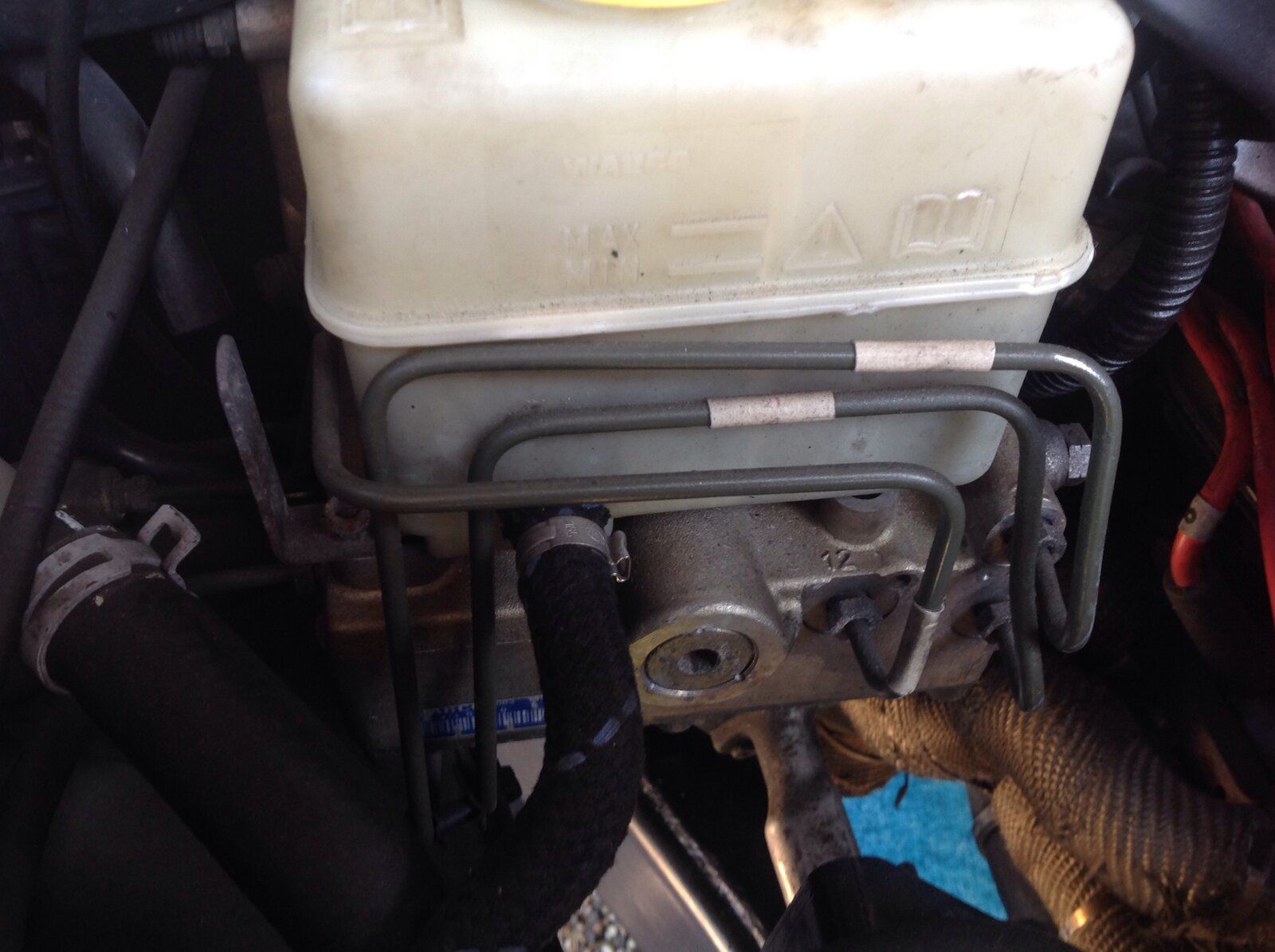

    I've taken a couple of pics hope it helps the two connection on the bulkhead as you look at them the one on the left goes to the bottom right port on the servo I think it's called that brake line runs across the back and to the nearside calliper


    Attached Files:

  4. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,393
    Likes Received:
    312
    Location:
    Isle Sheppy
    Help any ideas welcome

  5. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    12,008
    Likes Received:
    5,606
    Location:
    heathrow
    The one on the left in the pic goes to drivers rear the other to passenger rear, unless you have managed to cross them somewhere along the way, you could if you need to check undo one of the new pipes out of the old connectors and plug it then see which side you can bleed properly.

    Gunnerhavesome likes this.
  6. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,393
    Likes Received:
    312
    Location:
    Isle Sheppy
    Cheers Brian I found an old thread covered by wammers an grrrrr so managed to sort it

    Gunnerhavesome likes this.
  7. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,393
    Likes Received:
    312
    Location:
    Isle Sheppy
    i pm you couple of times Brian to sort out paying postage and the price of them pipes you made up
