brake fluid reservoir cap

hi does anybody know if any other rover caps fit the disco 2 td5 brake fluid reservoir

looking for 1 I can drill a hole it to fit pressure kit to bleed the brakes - all caps in pressure kit are screw so need to make my own

Ive got a spare one you can have for p&p? Off a defender res should be the same

bankz5152 said:

Ive got a spare one you can have for p&p? Off a defender res should be the same

Click to expand...

thanks
will message you

I think Rover 200 / 400 & 800 may use a similar bayonet fit cap.

Pawl said:

I think Rover 200 / 400 & 800 may use a similar bayonet fit cap.

Click to expand...

thanks will have a check at the local scrappy - ( PC vehicle recycler )

cfwnotloB said:

thanks will have a check at the local scrappy - ( PC vehicle recycler )

Click to expand...

well managed to get one off a Rover MG
@Pawl thanks for the heads up

That was quick - lol.
Glad to help.

Pawl said:

That was quick - lol.
Glad to help.

Click to expand...

was planning on doing it today so got the cap and sorted the pressure fitting

then the clouds opened & i thought F**k that for a game of soldiers it can wait till tomorrow

Hi,
Could you please post some pictures on the end result as I too have a pressure bleeder and would like to do this.
Regards,
Griff

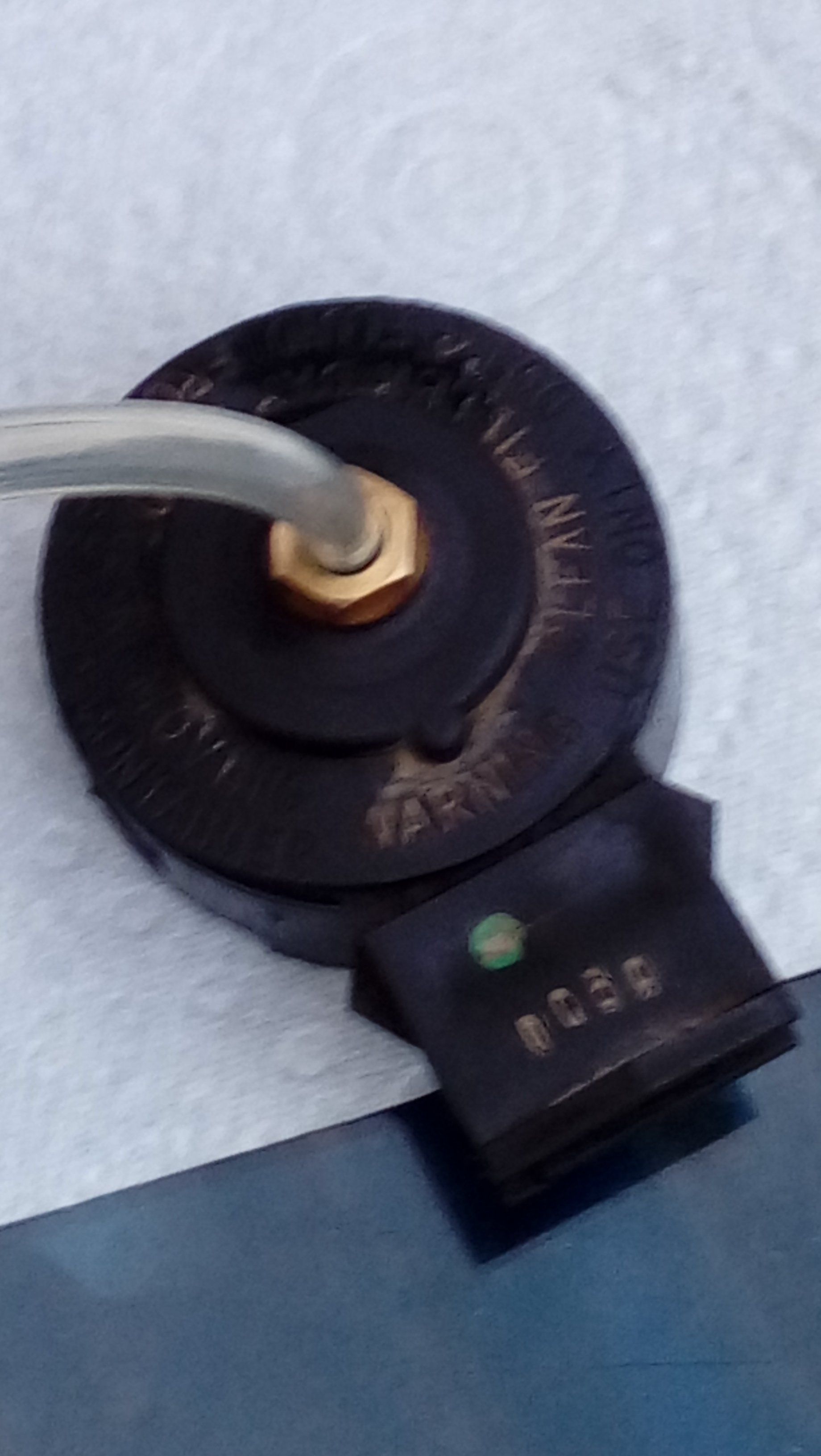

it was reasonably easy to do

remove the centre sensor - had to break the cap part to remove it

I then drilled it out with a 20 mm wood bit - take care as it bites when it hits the brass/metal contacts
once i got down to the cap i drilled out a 10 mm hole to fit the brass connection
managed to screw it all together and fit to reservoir for a pressure test

found it leaks the part of the cap that has the seal is not sealed into the cap after drilling out the sensor parts

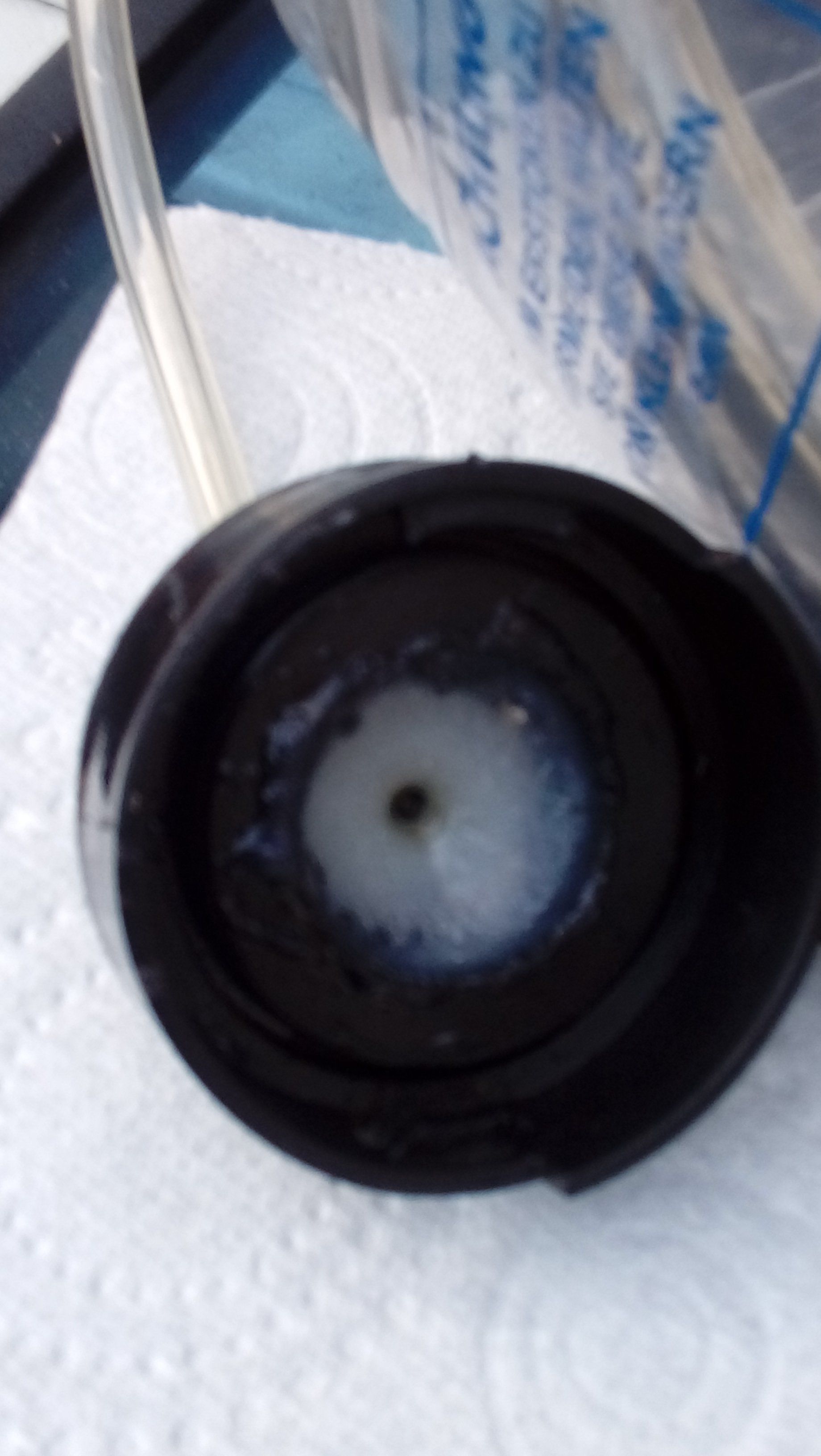

found some Arraldite in the shed and mixed up enough to seal the inside see second photo - only mix enough to seal the inside I did it in 2 steps about 1 inch from each tube per mix

once it was all set worked perfectly - wont be able to use it on anything else tho

Landmark2 said:

Hi,
Could you please post some pictures on the end result as I too have a pressure bleeder and would like to do this.
Regards,
Griff

Click to expand...

You can buy a kit for the Disco, cap, seals, strap and adjustable holding down bolts.

Nigel1943 said:

You can buy a kit for the Disco, cap, seals, strap and adjustable holding down bolts.

Click to expand...

or DIY for around £3
go to scrappy for the cap (£2 for mine) and 1/2 hours time
i suppose you could use silicone where i used the arraldite - i didnt have any to hand
