Bonnet seal

Discussion in 'Series Land Rovers' started by Fatrover, Dec 19, 2019.

< Previous Thread | Next Thread >
  1. Fatrover

    Fatrover Active Member

    Joined:
    Feb 7, 2007
    Posts:
    669
    Likes Received:
    30
    Location:
    Ardrishaig, Argyll, Scotland
    is there meant to be some kind of seal between the bonnet an the bulkhead? Alls I’ve got is a wee metal channel that runs along the bulkhead and funnels the water nicely into the footwell....

  2. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland
    Which side, is there some other seals missing around the heater matrix or servo /brake are or extra holes that should be plugged

  3. Fatrover

    Fatrover Active Member

    Joined:
    Feb 7, 2007
    Posts:
    669
    Likes Received:
    30
    Location:
    Ardrishaig, Argyll, Scotland
    It’s a left hander and doesn’t have a heater...I’ve plugged all the unused holes,in the bulkhead. It’s coming in through the clutch box from above looks like it’s running off the wee metal channel between the bonnet and the bulkhead

  4. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland

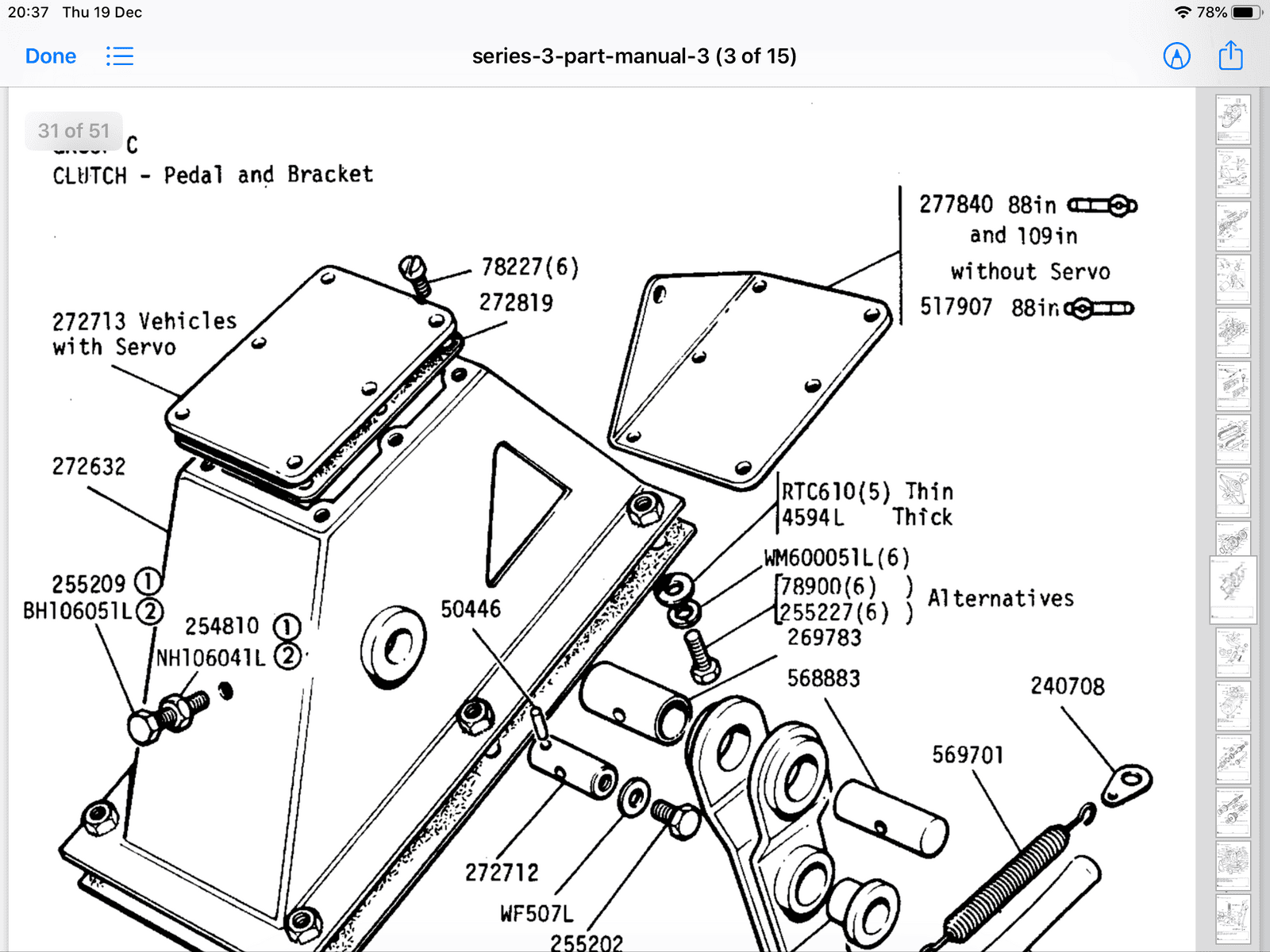

    Is the rubber seal fitted and ok


    Attached Files:

  5. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    2,949
    Likes Received:
    1,136
    Location:
    Warwick
    ^^ that was going to be my suggestion. If it is coming through the clutch mechanism. That should be sealed between the bulkhead and the pedal assembly. I do not have any further seals and do not get any leaks. (Other than standardnissue Land Rover) from The bulkhead.

  6. Fatrover

    Fatrover Active Member

    Joined:
    Feb 7, 2007
    Posts:
    669
    Likes Received:
    30
    Location:
    Ardrishaig, Argyll, Scotland
    Garage put a new pedal box in during the summer, bet they didn’t seal it.

    ) suppose I could seam sealer round it ?

  7. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland
    It’s very tight round there, worth a look though , might be easier undoing all the bolts and slipping a new gasket in place if it’s missing

  8. Fatrover

    Fatrover Active Member

    Joined:
    Feb 7, 2007
    Posts:
    669
    Likes Received:
    30
    Location:
    Ardrishaig, Argyll, Scotland
    Yes, that’s undoubtedly best. Because it’s a LHD, there’s all the brake servo on top,to come off as well....PIA

    steve2286w likes this.
  9. John S

    John S Well-Known Member

    Joined:
    Oct 30, 2008
    Posts:
    3,215
    Likes Received:
    635
    Location:
    Kinross
    There’s only one channel underneath the bonnet to direct the water out the side. If it’s coming in around the pedal heights that’s totally different. Are the mud shields still there? The bulkhead is protected by the mud shields and they have bolts though to the lower bulkhead foot wells to secure them.

    Fatrover likes this.
  10. Fatrover

    Fatrover Active Member

    Joined:
    Feb 7, 2007
    Posts:
    669
    Likes Received:
    30
    Location:
    Ardrishaig, Argyll, Scotland
    Ah now that’s a thought. Didn’t think about that. Don’t think they are....will check!

  11. Webley1991

    Webley1991 Well-Known Member

    Joined:
    Feb 4, 2012
    Posts:
    1,612
    Likes Received:
    150
    Location:
    London
    It may be possible to unbolt the pedal box bolts and slip the rubber gasket over the pedal and up through into the gap between the pedal box and bulkhead. That way the pedal box may not need to be entirely removed.

  12. Hopper78

    Hopper78 Member

    Joined:
    May 20, 2019
    Posts:
    17
    Likes Received:
    2
    Location:
    UK
    Is it leaking whilst parked up? If it is the mud shields shouldn't be the problem, although worth putting washers between the bulkhead and the mud shield at some point.

  13. Fatrover

    Fatrover Active Member

    Joined:
    Feb 7, 2007
    Posts:
    669
    Likes Received:
    30
    Location:
    Ardrishaig, Argyll, Scotland
    Yes, through the clutch box...it’s an LHD....
