blown fuse

Discussion in '2.5 TD (19J)' started by watercoolerguy, Oct 14, 2018.

< Previous Thread | Next Thread >
  1. watercoolerguy

    watercoolerguy New Member

    Joined:
    Feb 1, 2015
    Posts:
    7
    Likes Received:
    0
    Location:
    Southampton
    Having replaced my 19J engine with another one, I got around to trying to start the 90 last week. I think I have everything connected correctly! I turned the key to warm the glow plugs, but after a few seconds I heard a pop and there was a burning smell. Eventually got to investigate in the daylight and found a blown fuse (no 4) and one of the glow plug connectors was touching the engine block. Moved that, changed the fuse. Is there anything else I should be looking for before I have another go?

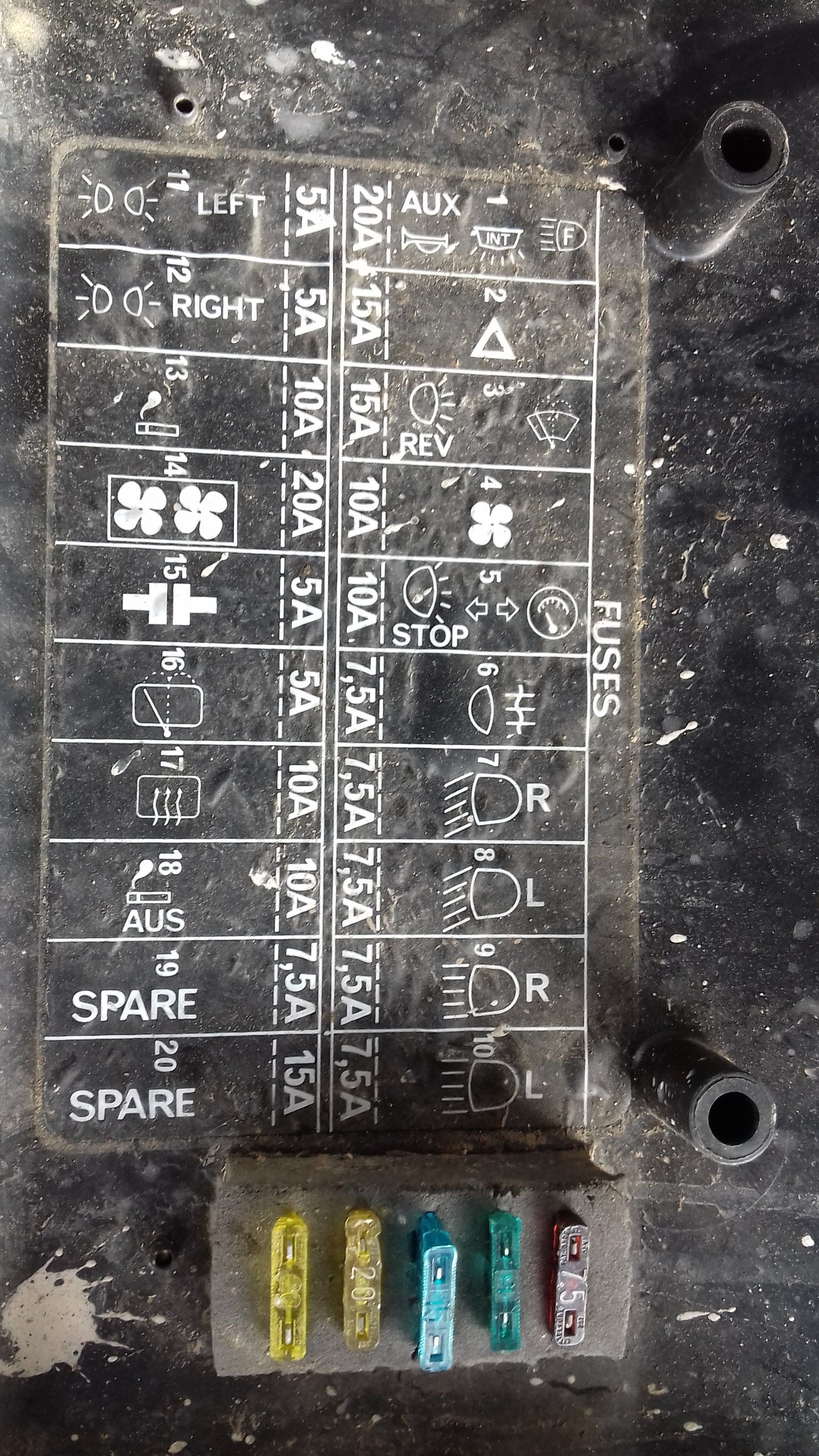

    Also – can anyone provide a list of what the fuses are all for? Some are pretty self explanatory, but I can’t see a connection between a fan and the glow plugs!


    Attached Files:

  2. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,021
    Likes Received:
    3,388
    Location:
    Arse!
    Glow plugs arnt normally fused.

  3. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    3,975
    Likes Received:
    3,289
    Location:
    Wiltshire
    Check the glow plug relay to make sure it still works.

  4. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,070
    Likes Received:
    224
    Location:
    Tyneside
    Typically a set of glow plugs will take about 40 amps as youn have no fuse that size suggest you wire in seperately unless they are fed by a relay and seperate supply.
    What landrover is it?
    Overlapped with hi cap Phil

  5. Britcyclerider

    Britcyclerider Member

    Joined:
    Jul 2, 2017
    Posts:
    68
    Likes Received:
    22
    Location:
    Dorset, UK
    My 19j had no relay for the glow plugs, it was a direct feed from the ignition switch.

  6. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,021
    Likes Received:
    3,388
    Location:
    Arse!
    I fitted a switch and relay into mine, a complete stand alone circuit, I dont like the idea of all those amps running through an ignition switch, too much can go wrong with that.

    Hicap phill likes this.
