Bell housing

S

Series Three

Member

Posts

14

Location

Scunthorpe

• Jan 7, 2023

• #1

Hi all, bit more advice if possible please, the rear crank seal is now done but I have noticed a very small amount of gearbox oil on the bell housing too so want to try and rectify this before the gearbox goes back on. Can anyone please tell me if the bronze bush in front of the thrust bearing is a seal as there is a bit of play in the shaft that presses on the pressure plate. Or am I looking in the wrong place? Thanks I’m advance.



steve2286w

Well-Known Member

Posts

4,573

Location

monkeyangerland

• Jan 8, 2023

• #2

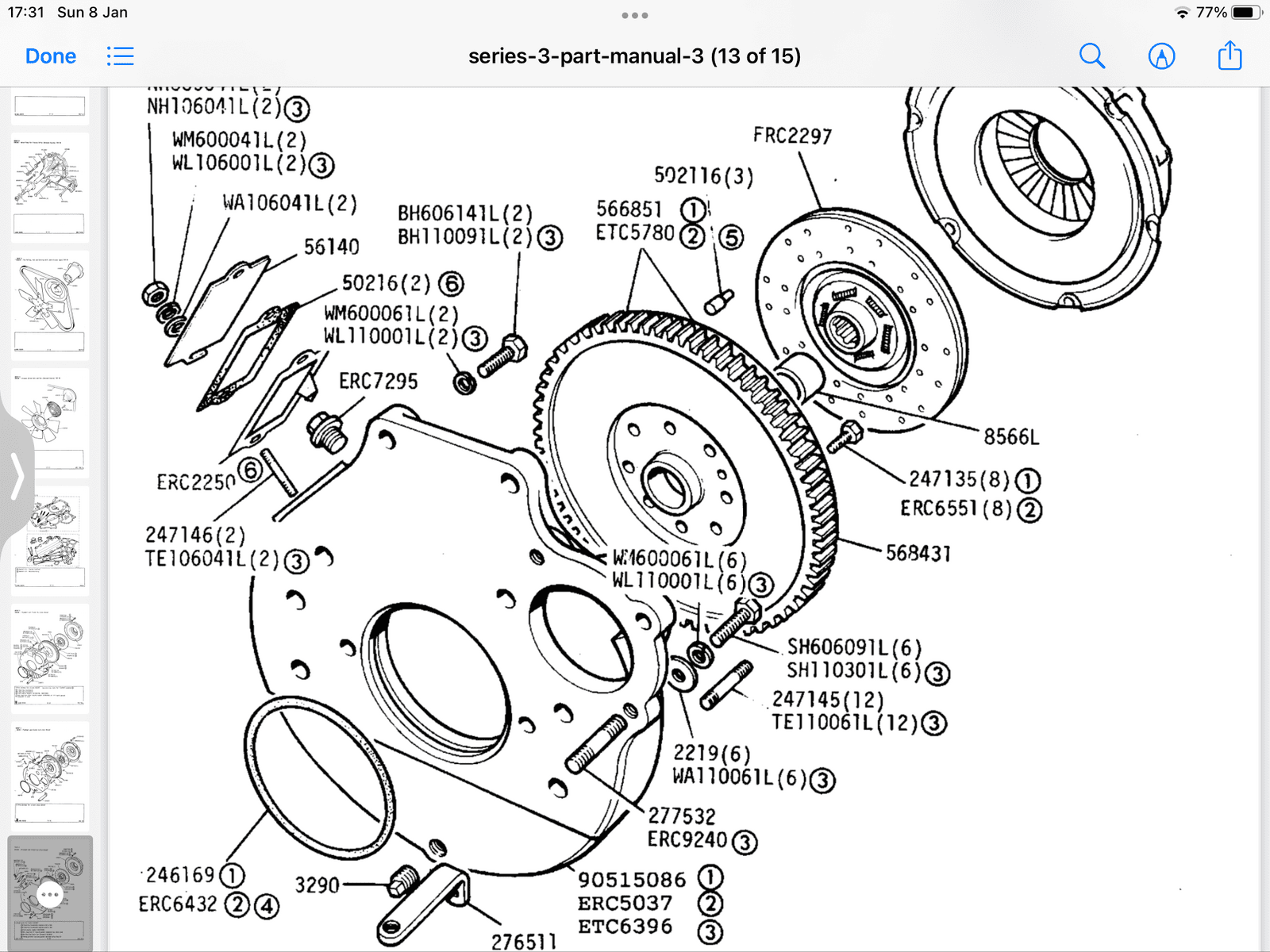

if you mean 8566L it’s just a bush think there was a bit play on mine but left it and been ok, can be a bit tricky to get out, could the oil be brake fluid from slave cylinder



Shippers

Well-Known Member

Posts

10,693

Location

Algarve

• Jan 8, 2023

• #3

Maximus Ironthumper has just done this job on his S3 resto find it on youtube...



tottot

Well-Known Member

Posts

8,073

Location

west wales coast

• Jan 8, 2023

• #4

If gearbox oil, then it has to be from gearbox. First motion shaft oil seal. Bronze bush is spigot bearing.



steve2286w

Well-Known Member

Posts

4,573

Location

monkeyangerland

• Jan 8, 2023

• #5

Shippers said:

Maximus Ironthumper has just done this job on his S3 resto find it on youtube...

Click to expand...

don’t think he grasped the principle of how the grease principle supposed to work

about 36mins in
