Belgian MOT problem with starting key...
- Thread starter DirkR
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Anaconda
Well-Known Member
- Posts
- 5,722
- Location
- Thames Valley
No , it shouldn't do that, worn ignition barrel or key but most likely both.
Anaconda
Well-Known Member
- Posts
- 5,722
- Location
- Thames Valley
Surely a Series 3 doesn't have a pull to stop cable?
Guess it might.
I just presumed it should stop with the ignition key, so I could be wrong (again)
I am not sure what year ign switch off diesels first appeared?
Knowing LR probably years after everyone else!
tottot
Well-Known Member
- Posts
- 8,641
- Location
- west wales coast
My series 3 does and I am pretty sure so did the early 83 One Ten models that still had the 2.25 engine
Recon solenoid stop came with the 2.5 engine that came with the Ninety introduction in 84.
Wildefalcon
Well-Known Member
- Posts
- 2,072
Yes, no faculty on the cav pumps
Anaconda
Well-Known Member
- Posts
- 5,722
- Location
- Thames Valley
I would say it's unbelievable but then again it's Land Rover we are talking about.
Anaconda
Well-Known Member
- Posts
- 5,722
- Location
- Thames Valley
Don't thank me as it seems I am most likely incorrect.
To clarify you have a cable to pull to stop the engine and a separate ignition switch?
If that's the case then that's how they are from factory.
Maybe an interior photo might be useful.

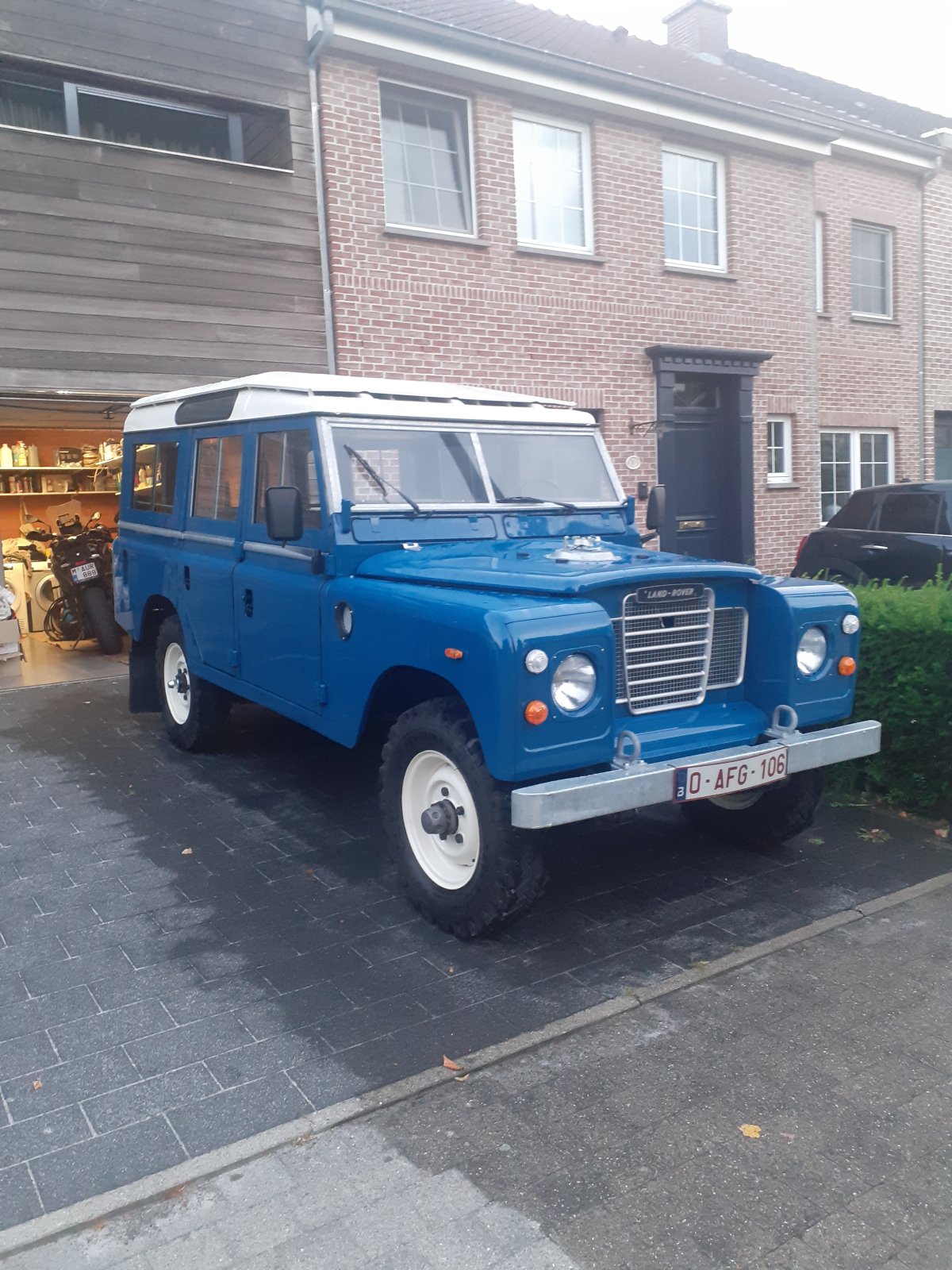

Apart from that your Land Rover looks very smart.
tottot
Well-Known Member
- Posts
- 8,641
- Location
- west wales coast
With my 77 Series 3. You normally pull the stop out first to stop the motor, you have to hold it out until the motor stops running and then let go the stop and it returns to the run position ready for next time.
If you switch off the ignition key first most electric items stop but engine keeps going. [ key can be removed] But now when the stop is pulled it stays out in the off position and will only spring back to the run position when key is turned to on position. Nut's but that's the way it has always been. Its a Land Rover!
If you switch off the ignition key first most electric items stop but engine keeps going. [ key can be removed] But now when the stop is pulled it stays out in the off position and will only spring back to the run position when key is turned to on position. Nut's but that's the way it has always been. Its a Land Rover!
Indeed Lynall, the car is a pull cable stop and I can remove the ignition key while the car is running. The MOT guys don't accept that, especially with the wheel lock...
300bhp/ton
Well-Known Member
- Posts
- 5,290
- Location
- Near MK
But it is working as intended and as designed from the factory. If it is a legal design of vehicle in your country, then surely there must be a way to object or protest the MoT.
Hello Anaconda and Tottot,

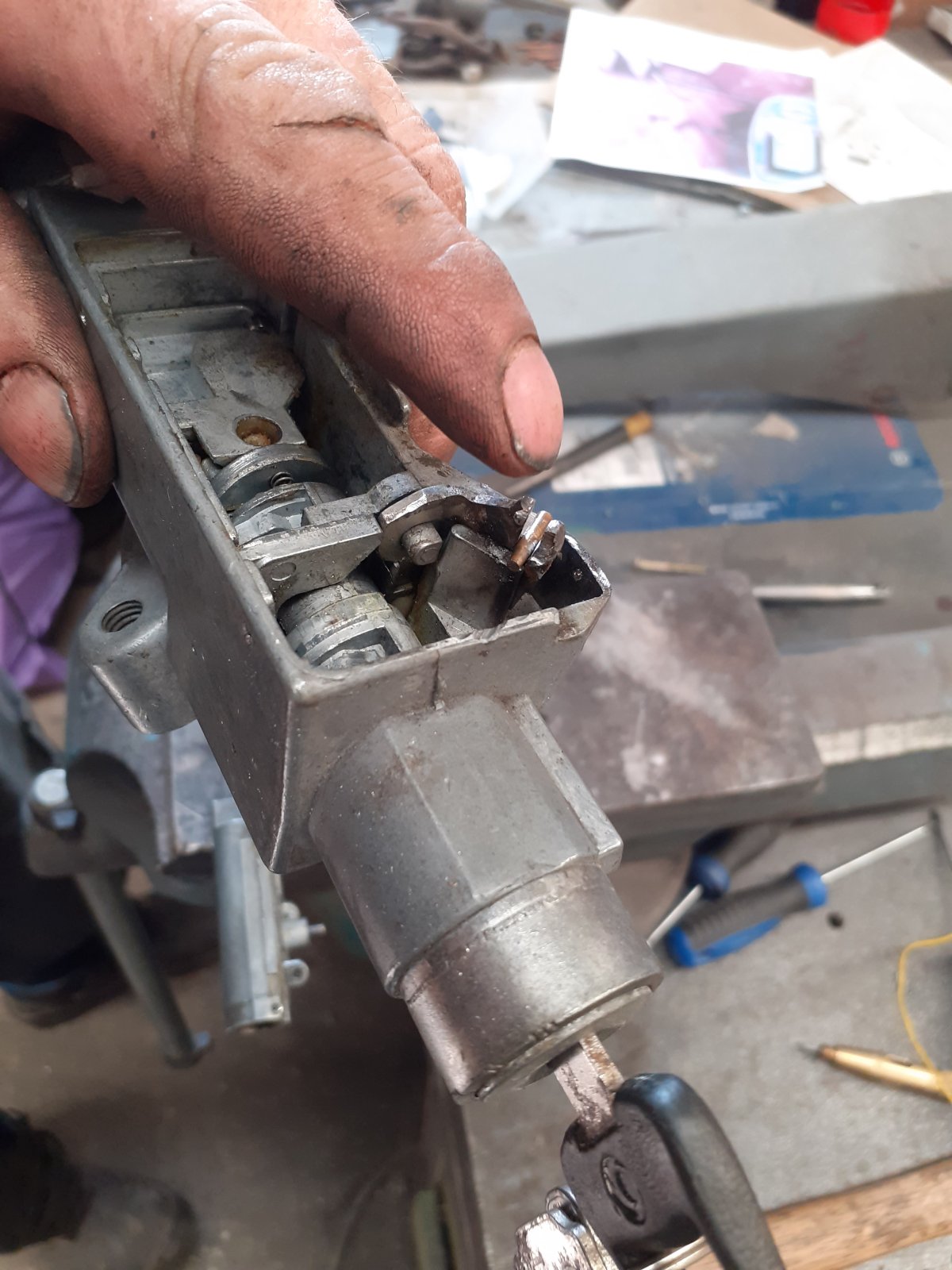

Lile I said, I looked into it today... I took out the start and stop combination and went to a Land Rover wizard with it. He opened it up and then we saw that the system that makes it impossible to pull the key out while the motor is running was worn out. He welded the worn off 'things' back up and now it's funtioning as it should. Like Tottot explained, you should only be able to turn the key to the lock position if the stop knob is fully out, hence the motor is out... and it is only possible to push the stop knob back in with the key in the preheating position... It is a fine piece of mechanical engineering. In the photo you see the 2 'things' that stick out a bit and are welded up. The metal sheath(?) Of the stop knob pushes these down. With the stop knob fully out, they go up and make that the ignition key can be turned to the lock or off position.
So yes, Anaconda thank you for your remark without it I would not have taken action.
Lile I said, I looked into it today... I took out the start and stop combination and went to a Land Rover wizard with it. He opened it up and then we saw that the system that makes it impossible to pull the key out while the motor is running was worn out. He welded the worn off 'things' back up and now it's funtioning as it should. Like Tottot explained, you should only be able to turn the key to the lock position if the stop knob is fully out, hence the motor is out... and it is only possible to push the stop knob back in with the key in the preheating position... It is a fine piece of mechanical engineering. In the photo you see the 2 'things' that stick out a bit and are welded up. The metal sheath(?) Of the stop knob pushes these down. With the stop knob fully out, they go up and make that the ignition key can be turned to the lock or off position.
So yes, Anaconda thank you for your remark
without it I would not have taken action.Attachments
Anaconda
Well-Known Member
- Posts
- 5,722
- Location
- Thames Valley
I am glad I have helped, even if it was by accident
tottot
Well-Known Member
- Posts
- 8,641
- Location
- west wales coast
So that's how it works. Every day a school day.
