L322 Battery MF31-1000 in an L322

One with a remote wireless display on the dash would be good

backinblack said:

@Datatek re the continued charging, that's why I'm thinking if the controller only charges over around 13v input it would isolate the 2 batteries and stop the second battery pulling power until the engine is running and the alternator is up to speed. Otherwise like you say an isolation relay.

Any particular reason for you recommending that controller only I have 2 of the ones I posted as I like the voltage display?

Click to expand...

I have not checked but I think that the controller relies on the potential difference between the source (solar panel or car) and the battery to be charged. So if the battery attached to the controller is down at 12.2 volts for example and the car battery at switch off is 12.8 or more, it may continue to charge. Easy enough to check.
The one I use is cheap and simple with just LED's to indicate what is going on. Displays may not like extreme cold. I have seven of them, so price was important.

backinblack said:

One with a remote wireless display on the dash would be good

Click to expand...

Which would use more power.

Datatek said:

Which would use more power.

Click to expand...

Agreed but if it's running off a 900amp battery it should be neglidgable.

The spec from the one I have looks like trigger voltages are adjustable

12V voltage system (if it is a 24V voltage system, data x2):
Float charge: 13.7V (default, adjustable)
Discharge stop:10.7V (default, adjustable)
Discharge reconnect:12.6V (default, adjustable)

Datatek said:

Which would use more power.

Click to expand...

There's a remote display with bluetooth app that draws 1mA

backinblack said:

Agreed but if it's running off a 900amp battery it should be neglidgable.

The spec from the one I have looks like trigger voltages are adjustable

12V voltage system (if it is a 24V voltage system, data x2):
Float charge: 13.7V (default, adjustable)
Discharge stop:10.7V (default, adjustable)
Discharge reconnect:12.6V (default, adjustable)

Click to expand...

That sounds good for your application.
Discharge stop:10.7V (default, adjustable) I would set that to 12 volts if you do not want to knacker the battery PDQ

Datatek said:

That sounds good for your application.
Discharge stop:10.7V (default, adjustable) I would set that to 12 volts if you do not want to knacker the battery PDQ

Click to expand...

Sound like a plan, need to rig it up to test what happens before the install.

Any idea if 16awg will do 20amp please? looking on web says 15amp but ready made cables come with a 15 and 20 amp fuse.

Cheers

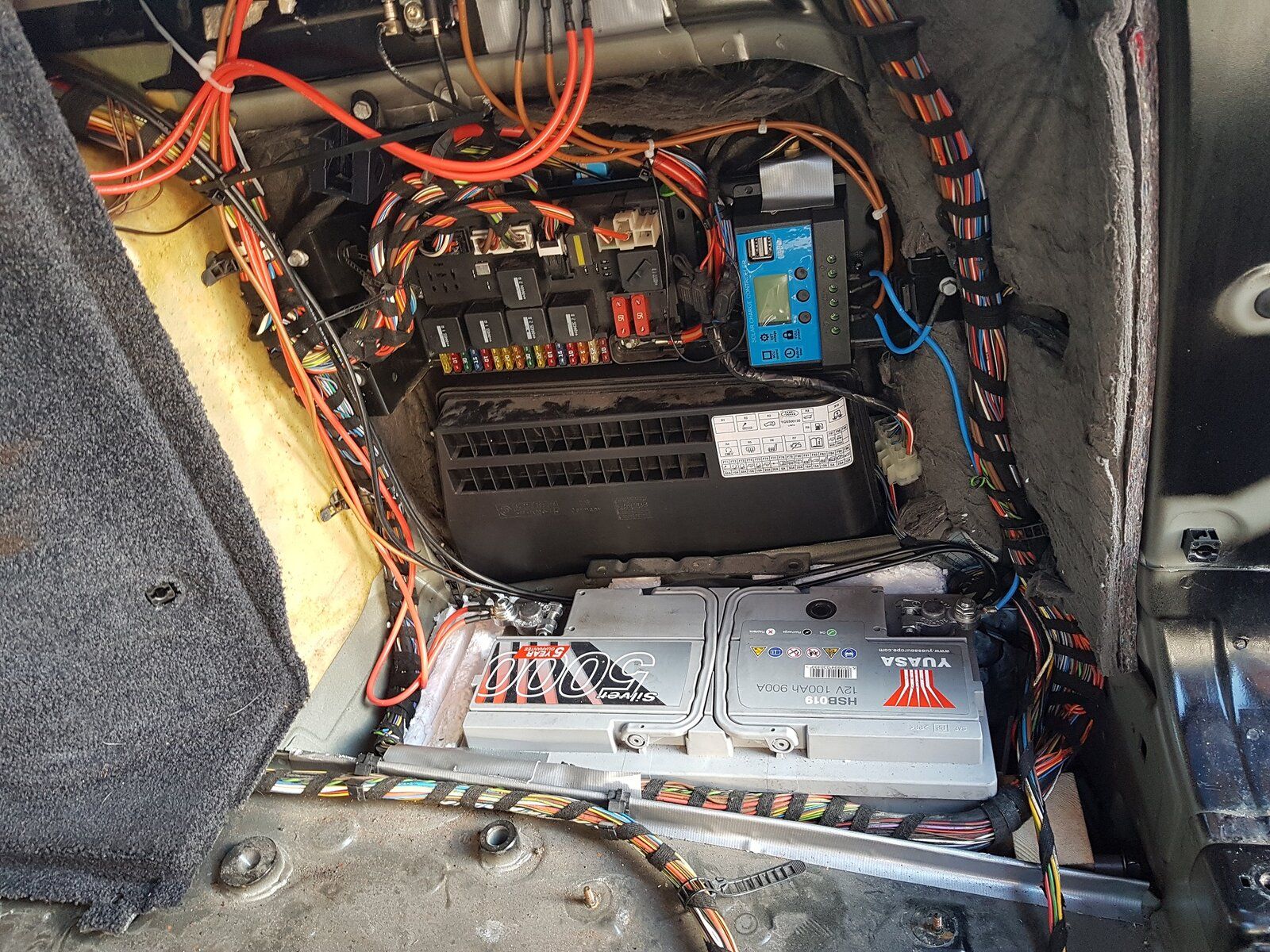

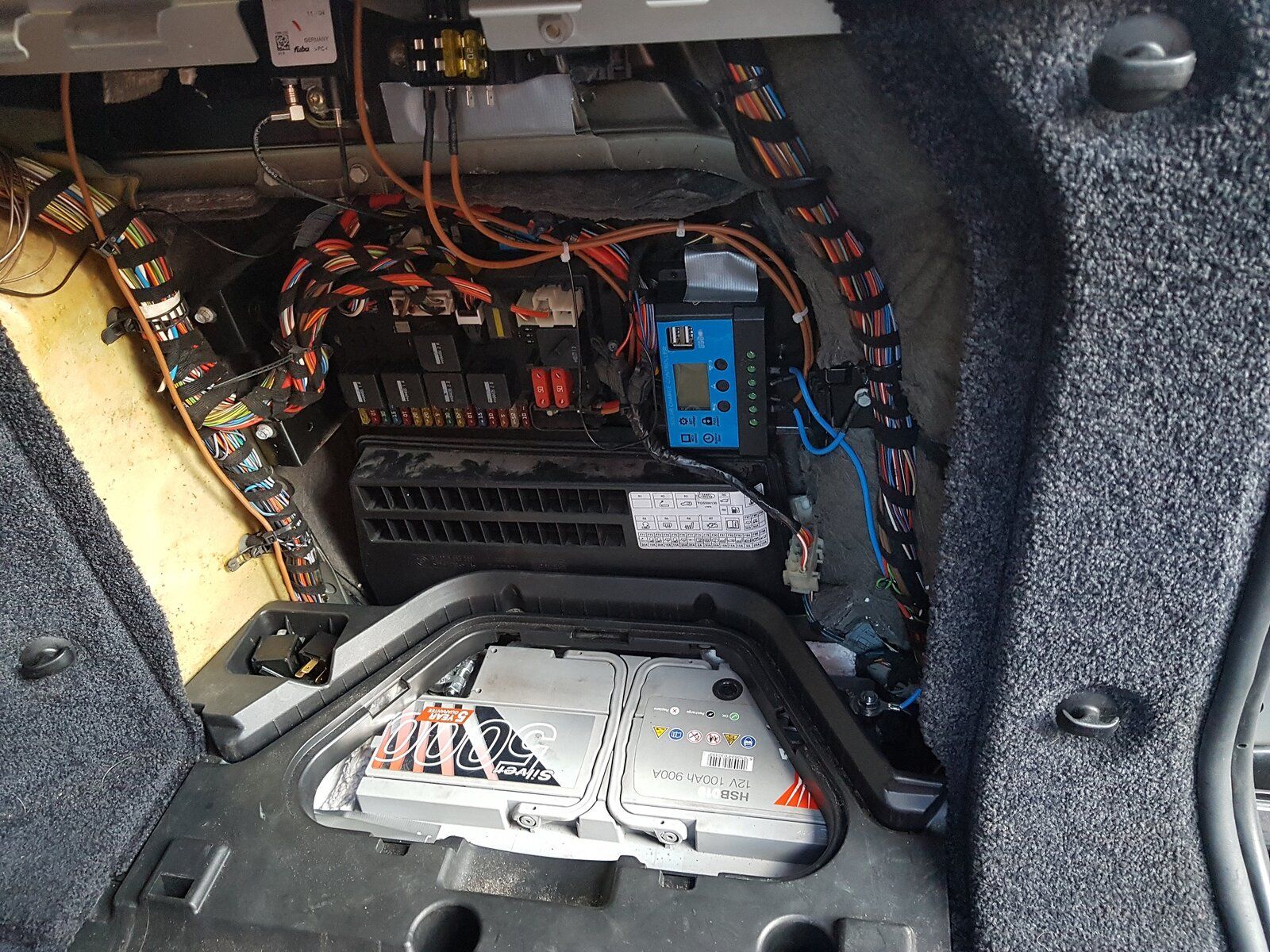

Took longer than expected but dual battery conversion now complete'ish

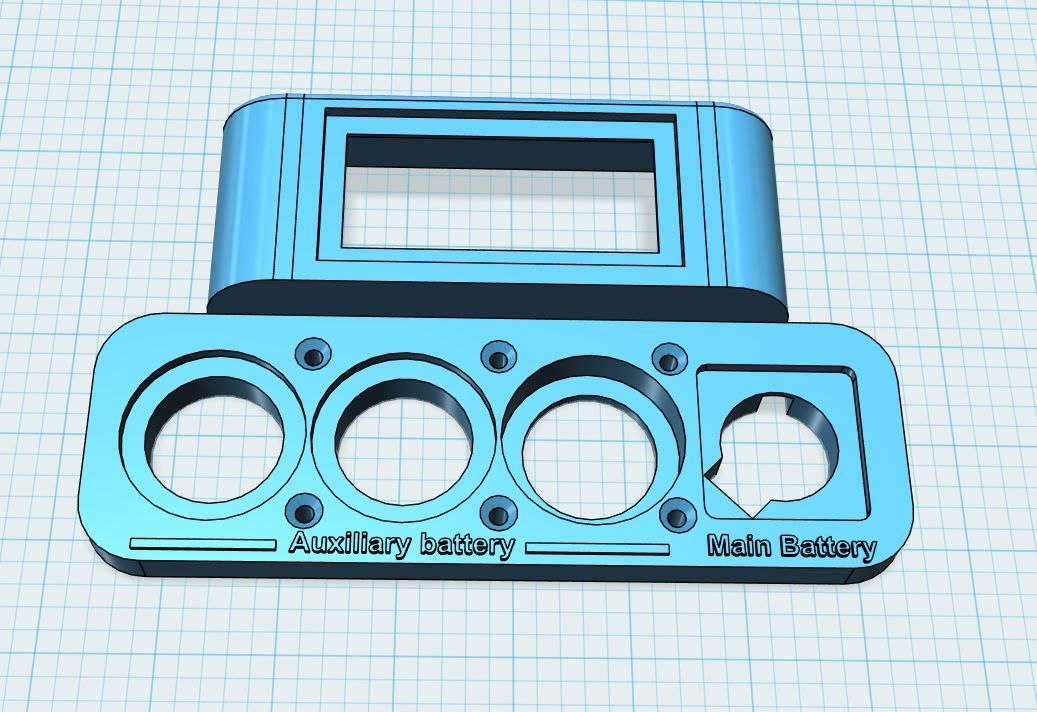

3D printed a new housing so I could move the light and use the existing cut out.

the white lettering

RangeRoller dt said:

the white lettering

Click to expand...

Tippex on the 3D printed lettering

Is a nice touch

RangeRoller dt said:

Is a nice touch

Click to expand...

I saw something on another thread about putting a label on the main battery to say about the dual battery conversion so thought it would be good to put something here as well.

Nevermind
elfreetutu will get it

RangeRoller dt said:

Nevermind
elfreetutu will get it

Click to expand...

Sorry you've lost me ?

Mi thirst elfreetutu

nope, still don't get it

Your starter for 10 @backinblack , my first.

my first L322 ? I'll sleep on it

backinblack said:

Took longer than expected but dual battery conversion now complete'ish

View attachment 214666

View attachment 214667

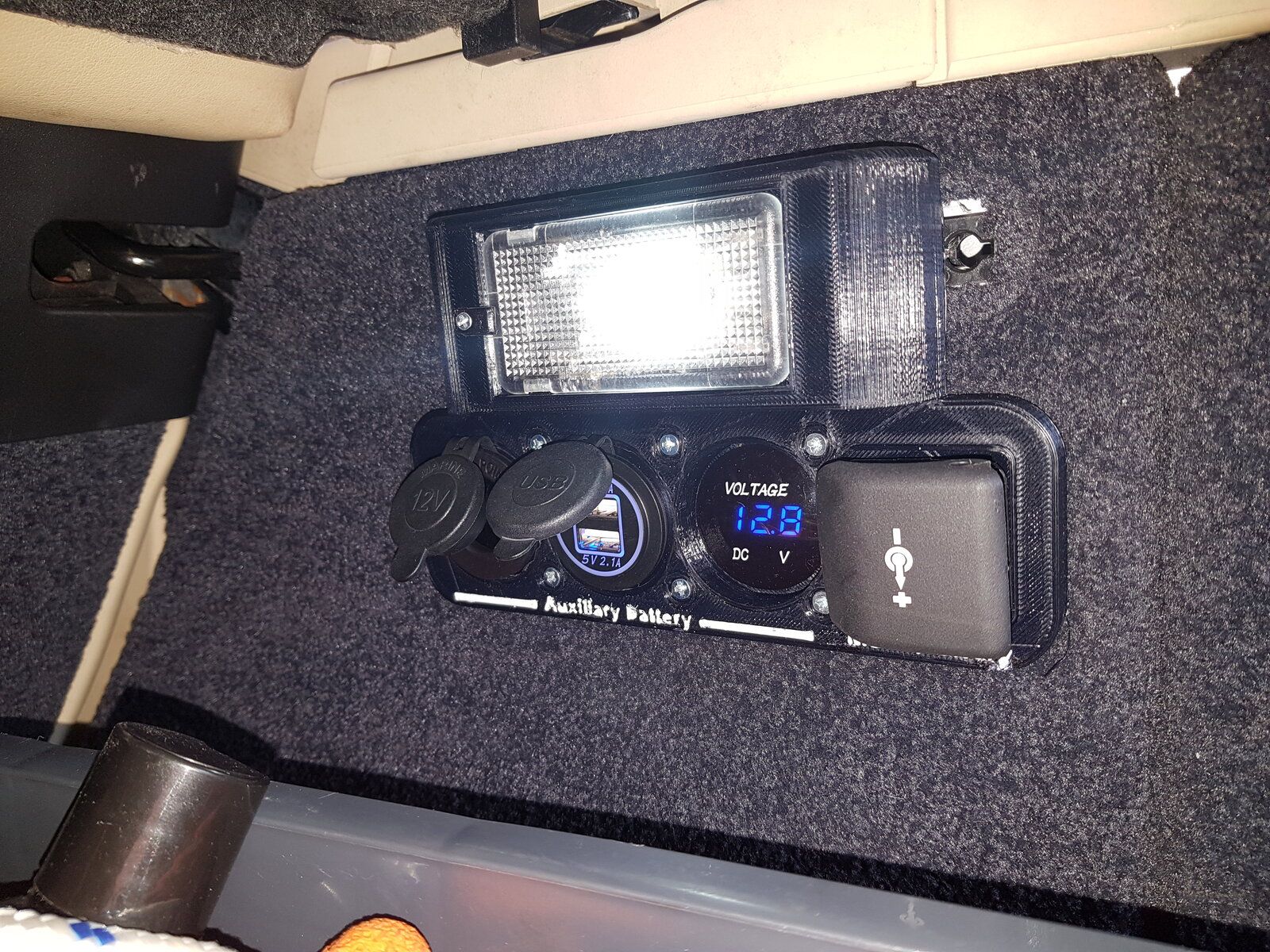

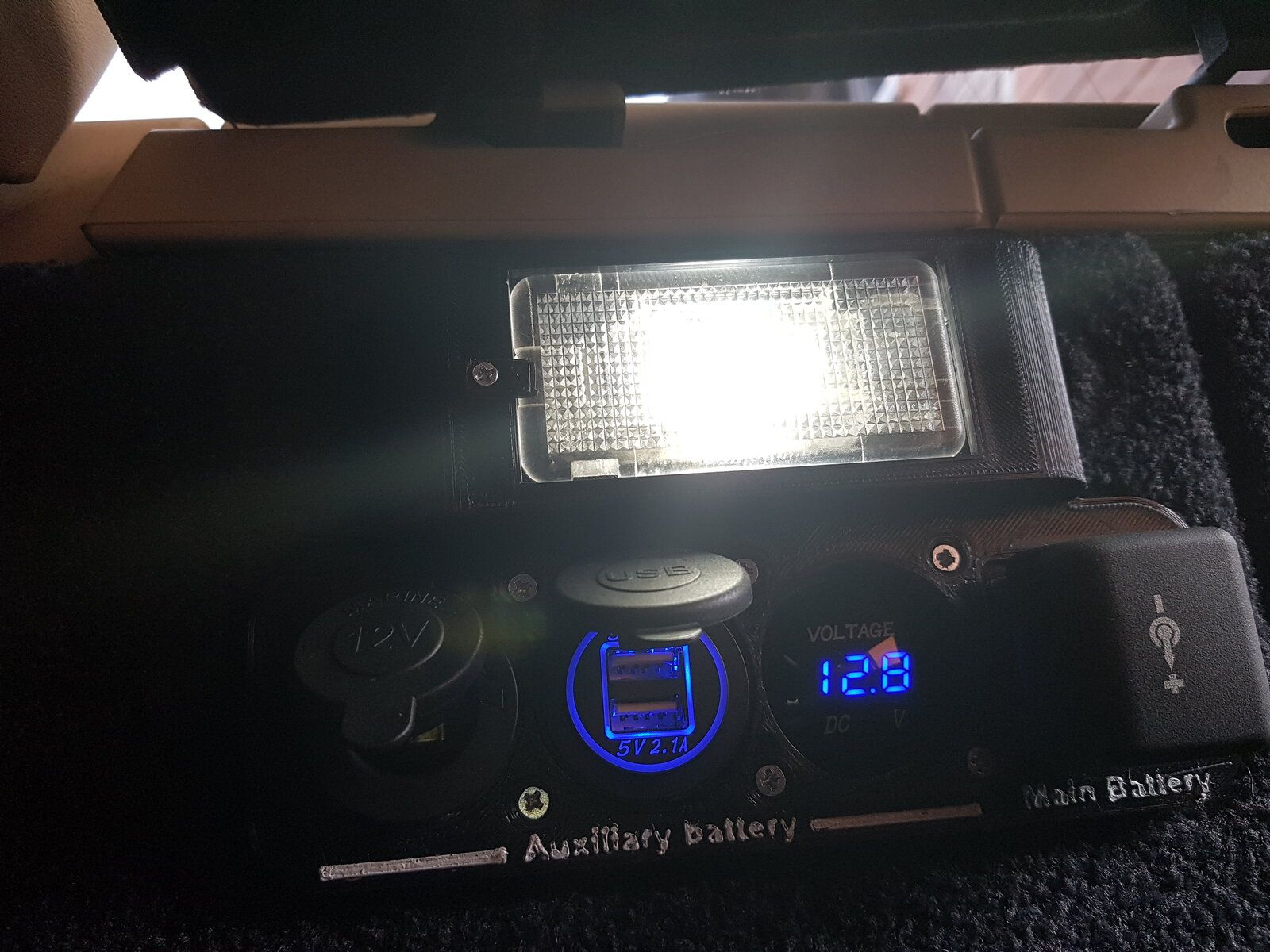

3D printed a new housing so I could move the light and use the existing cut out.


View attachment 214668

View attachment 214670

Click to expand...

Nice job
