Battery drain help

Ralfine · Apr 22, 2019

[GALLERY=][/GALLERY]

Anyone tell what fuse number 1 is for it seems to be draining my battery

neilly · Apr 22, 2019

I would hazard a guess,

Hazard lights???

Cheers

neilly · Apr 22, 2019

Ralfine · Apr 22, 2019

Hi Neilly
Yes it is the hazard warning light
Sorry no manual Pal
Any idea what I do next if this is the drain
Was wondering if there is a relay or something that could have gone faulty ?

neilly · Apr 22, 2019

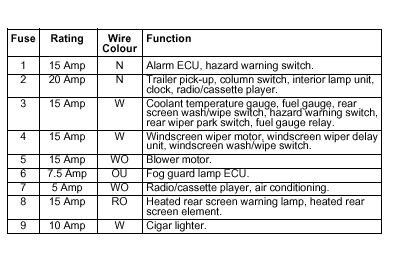

As you can see post# 3, it may also be the alarm, does yours have an alarm?

Cheers

Ralfine · Apr 22, 2019

No, no alarm
It’s a very basic truck
I’ve had it 6 years but I’m crap on auto electrics

neilly · Apr 22, 2019

I would recommend you downlaod the RAVE manual , then you can see all the wiring diagrams etc.

iirc the switch does all the work try disconnecting it and see what happens.

Cheers

Al2O3 · Apr 22, 2019

Ralfine said:

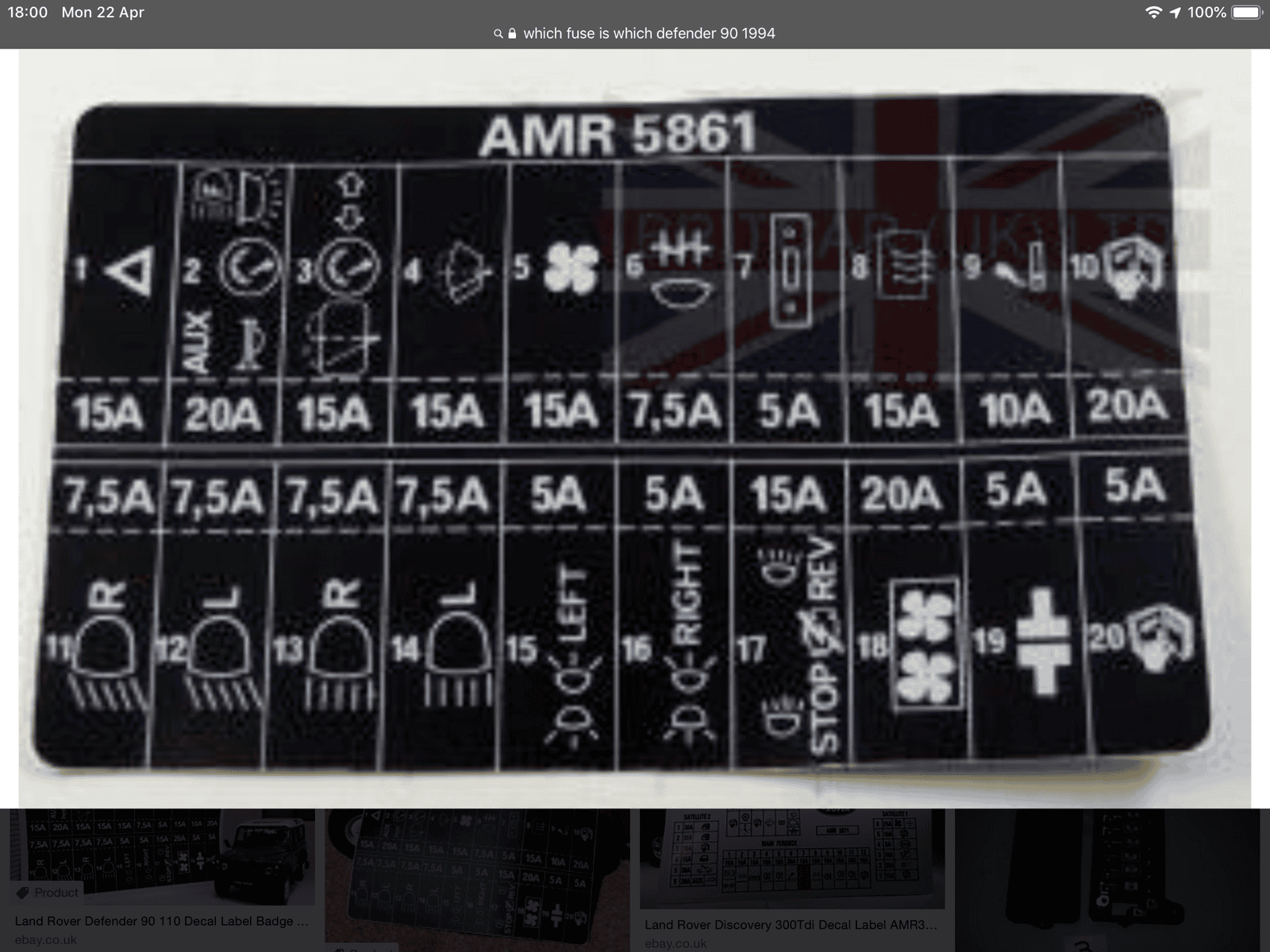

[GALLERY=][/GALLERY]View attachment 176149

Anyone tell what fuse number 1 is for it seems to be draining my battery

What current measurements are you getting before and after taking the fuse out?
I thought I had a drain big enough to flatten the battery quickly. But, it turned out that the alternator was on the way out.

Ralfine · Apr 23, 2019

With meter set at 20amp it’s 0.32 with fuse in and 0 with fuse out

Al2O3 · Apr 23, 2019

Ralfine said:
With meter set at 20amp it’s 0.32 with fuse in and 0 with fuse out

So there is no other drain, other than through that fuse? 320mA is a big drain.
Have you checked each indicator to see if the connections are corroded and shorting or if any are full of water?
