bastard wiring

Leonv · Sep 8, 2016

does anyone have a wiring diagram for a 19j its ex mod so it has loads of unnecessary wires and it is probably easiest to rewire the whole vehicle or at the wires that run to the fuse panel and along the dash

Leonv · Sep 8, 2016

or do you know anyone in the suffolk area that will do it for me for a reasonable price

Flossie · Sep 8, 2016

Might be easier to source a used loom from a breaker?

zeaphod · Sep 9, 2016

The 200TDi loom will be very similar if you can get one of those. I guess it's the MoD light switch that will cause the most head scratching.

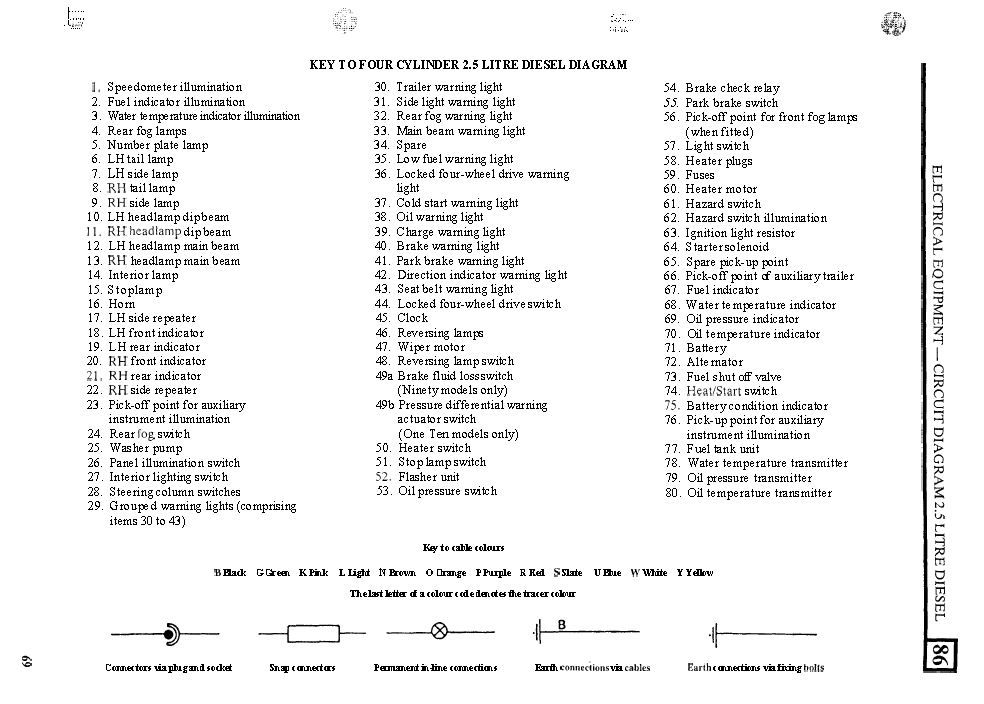

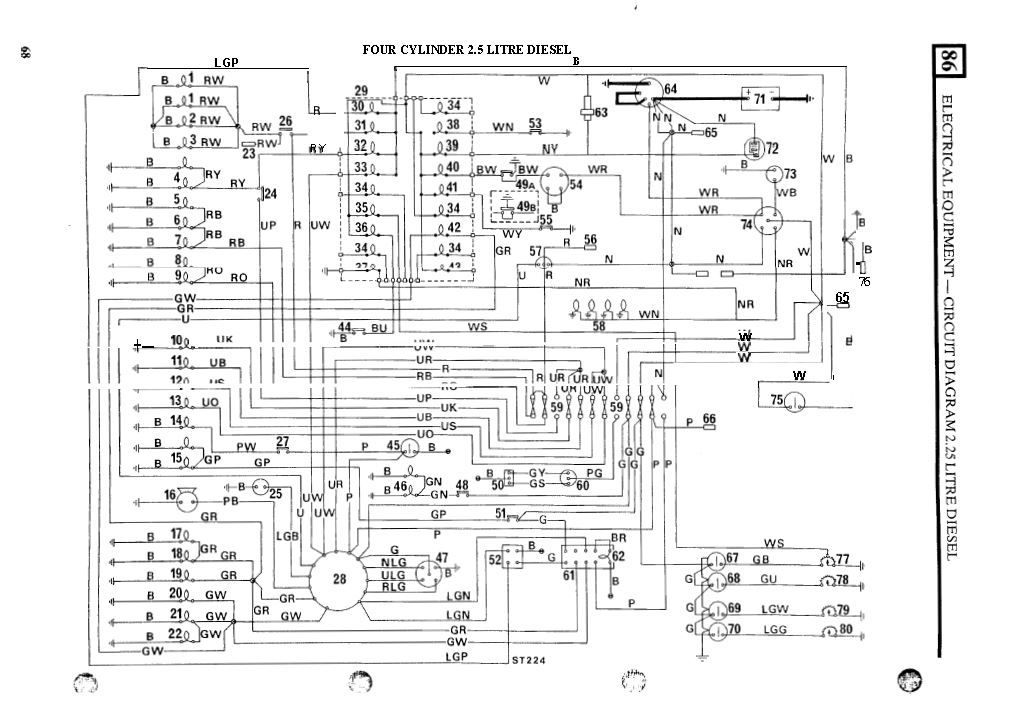

I've attached the diagram and key for the N/A - yours should be very similar.
