P38A Ball joints

Discussion in 'Range Rover' started by pete12345, Aug 8, 2020.

< Previous Thread | Next Thread >
  1. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Any clues on how to remove the nuts on the front ball joins they just seem to keep turning I’ve tried putting an Allen key in the bolt but it’s solid 1999 4,6

  2. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    57,967
    Likes Received:
    11,450
    Location:
    Preston Lancs.
    Heat.

  3. Blanco

    Blanco Member

    Joined:
    Mar 10, 2009
    Posts:
    74
    Likes Received:
    8
    Location:
    North Tipperary
    Not sure which one we are talking about here but clamping (big G-clamp) or jacking (assuming you aren't on a lift) can work to reset the taper, also make sure the threads are totally brushed clean and WD40'd before you start, if the nut has undone a thread or two and then jammed do it back up first and reclean the threads.

  4. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Heat wammers bloody 27 degrees already will give it a try cheers

  5. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Cleaned all the threads up and got it glowing but all that’s happening is it’s finger loose now but won’t go down the thread any further would it be ok to disc cut it off and still be able to push it out cheers

  6. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    Cut it off now is the bottom adjusting nut 32mm probably will be as that’s the size I ain’t got

  7. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,621
    Likes Received:
    4,519
    Location:
    heathrow
    Do not play with the big nut or you will have to reset the height so it does not destroy your shaft seal.

  8. DanClarke

    DanClarke Well-Known Member

    Joined:
    Mar 13, 2009
    Posts:
    6,329
    Likes Received:
    9,630
    Location:
    Benfleet, Essex
    "Oops?"

    RangeRoller dt likes this.
  9. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    I thought you had to remove that big nut to press them out no I was going to replace the seal

  10. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    13,963
    Likes Received:
    3,787
    Location:
    Buckinghamshire, UK. ('95 DT)
    If the shaft isn't absolutely smack bang in the middle of the seal it will rub and spinning as it does it won't take long. Need a special tool although you can bodge something. If you don't touch the alignment it shouldn't need adjusting.

  11. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy
    So I can press out the joint with that nut in place

  12. norseman

    norseman Well-Known Member

    Joined:
    Jun 26, 2009
    Posts:
    2,494
    Likes Received:
    699
    Location:
    Essex - UK
    I know some folks have success with WD as a releasing agent, but that's not it's function (WD = water dispersant)
    The best product I've found over the years is Duck-oil, spray bottle is better than aerosol.
    Just my opinion … sorry WD users.

  13. aj1954

    aj1954 Well-Known Member

    Joined:
    Oct 27, 2012
    Posts:
    2,480
    Likes Received:
    1,602
    Location:
    SURREY
    WD 40 do make a penetrating fluid, I have a can, works for me.

  14. frostythor

    frostythor Active Member

    Joined:
    Jul 10, 2020
    Posts:
    63
    Likes Received:
    39
    Location:
    NEW FOREST
    If I read this correct, your trying to remove the ball joint, but its turning when you try to take off the nut, if this is correct, then to stop it turning so you can completed the removal of the nut, you need to jack up the bit your trying to remove so the taper is forced back up in the hole until it grips the ball joint shaft, a trolly jack of use a long bar to put pressure on the part you want to remove


    Last edited: Aug 9, 2020
  15. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    12,662
    Likes Received:
    3,845
    Location:
    wirral and triquivijate
    What nut Pete? Photos required. If you have taken the drive shaft nut off and the wheel bearing housing bolts and the abs sensor the housing will tap off . With track rod end released,and the swivel nuts removed /cut off then the swivel hub can be removed leaving you with the swivel joints in the axle yoke.

    Last edited: Aug 9, 2020
  16. frostythor

    frostythor Active Member

    Joined:
    Jul 10, 2020
    Posts:
    63
    Likes Received:
    39
    Location:
    NEW FOREST
    I'm with Norseman about WD 40, water dispersant 40th time the tried to get it working , when I was in the military it was eventual banned as it promoted rust

  17. oldtel48

    oldtel48 Member

    Joined:
    Jun 18, 2016
    Posts:
    39
    Likes Received:
    2
    Location:
    Colchester

  18. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,199
    Likes Received:
    167
    Location:
    Isle Sheppy

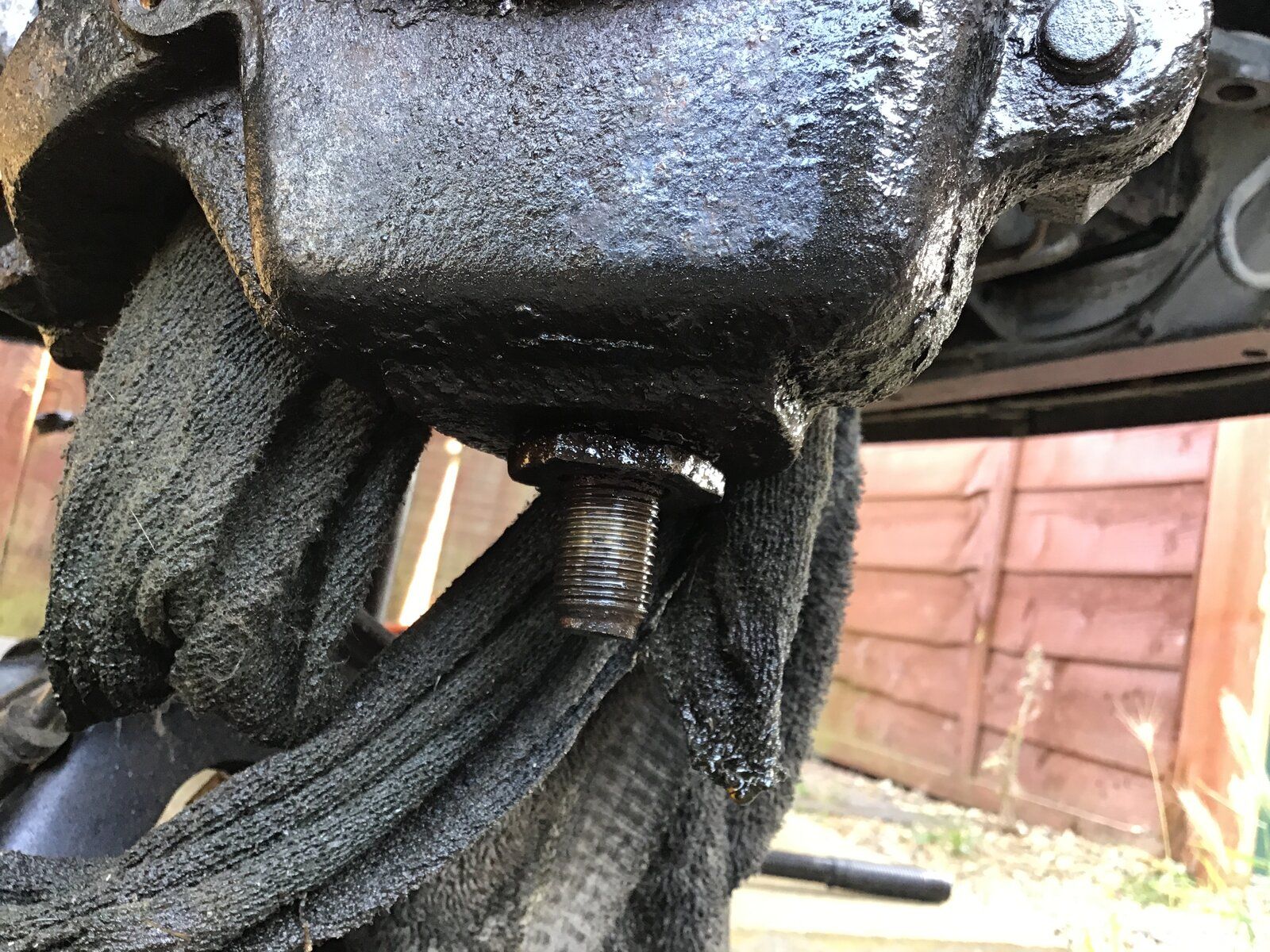

    I think I can leave the nut in place and still remove the ball joint here’s a pic of the nut


    Attached Files:

  19. oldtel48

    oldtel48 Member

    Joined:
    Jun 18, 2016
    Posts:
    39
    Likes Received:
    2
    Location:
    Colchester
    The nut you are talking about is the adjustment collet put a balljoint splitter in the gap on the top and bottom balljoint but you must take the hub out first if as I understand that you are going to fit new swivels

  20. frostythor

    frostythor Active Member

    Joined:
    Jul 10, 2020
    Posts:
    63
    Likes Received:
    39
    Location:
    NEW FOREST

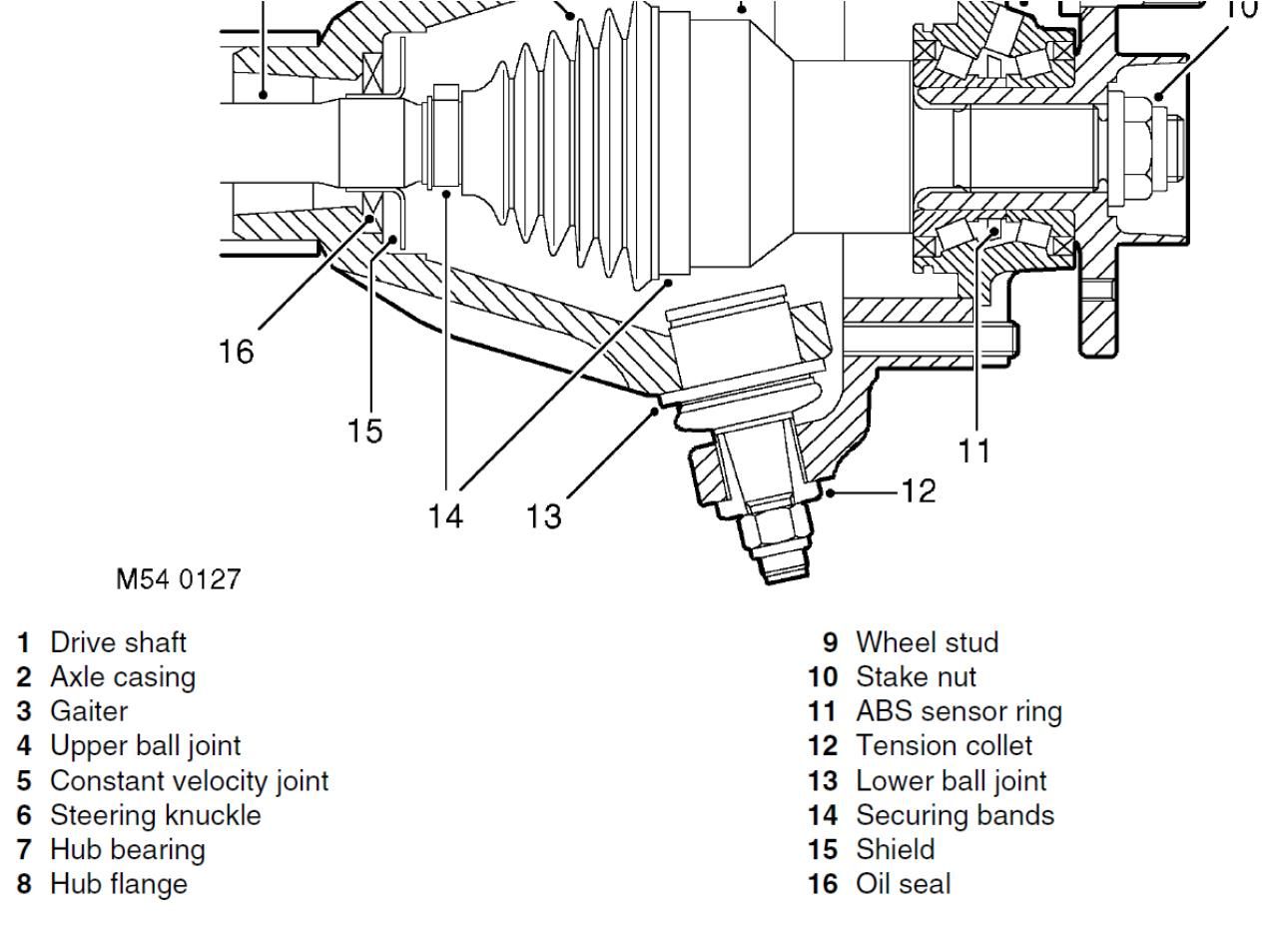

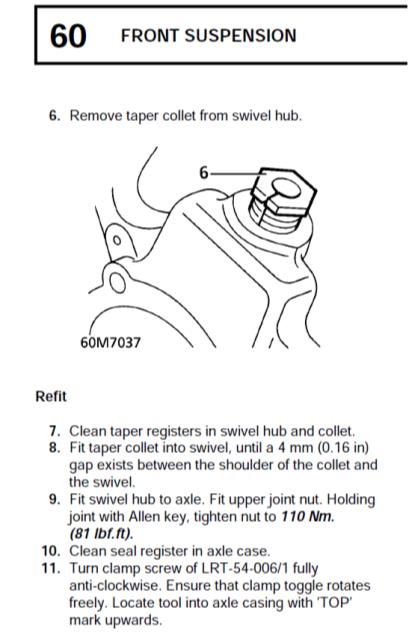

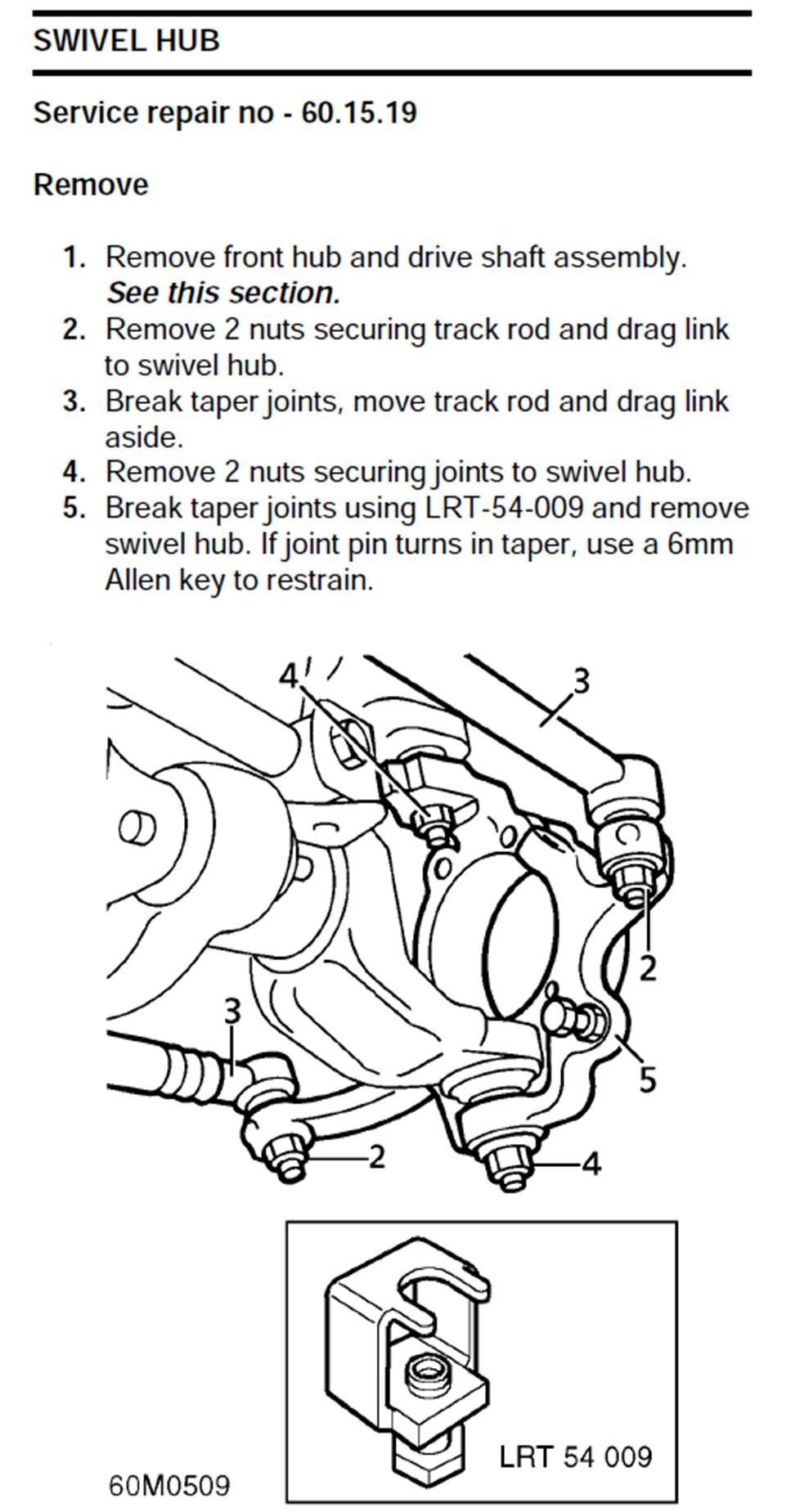

    Hi again, I downloaded the P38 manual, and I can see that the set up is very similar to my Disco 2




    as you can see the nut your trying to remove on my car is in fact a Tension collet n ow if you compare the P38 manual drawing we see that the item your trying to remove is the same


    and in fact it only mentions the ball joint nut all thought you can see the item in the drawing


    Attached Files:
