Audio Problem- no more sound! :(

Hello my RR friends!

i hope someone can help who had same or similar issue!

I recently drove and suddenly the bluetooth audio connection started to fail. It dis- and re connected itself a few times. Seemed weird. Then i tried to listen to Radio, but it also got cut off. Still showing a channel but couldn't select another. I thought maybe disconnecting the battery would help, but it didn't. I got worried. Next day no change. Then the audio source field in the infotainment system just went blank. No more sound. Also the navigation system said "loading" from now on. And there is a noice coming from cd changer below, as if its constantly changing.

Thats been it now for almost a week. I went to Land Rover dealer and they tried to update the software but couldn't. Aparently they got an error message that something is wrong with the "MOST" cable or network. And said they would need many hours to even find out whats wrong.
I can't afford to spend 1k only to find out what is wrong and had hope maybe someone here could give me a hint! Maybe something i can check myself or change myself.
Its a 2015 Range Rover Supercharged with a harman kardon logic7 sound system. Never had any issue before.

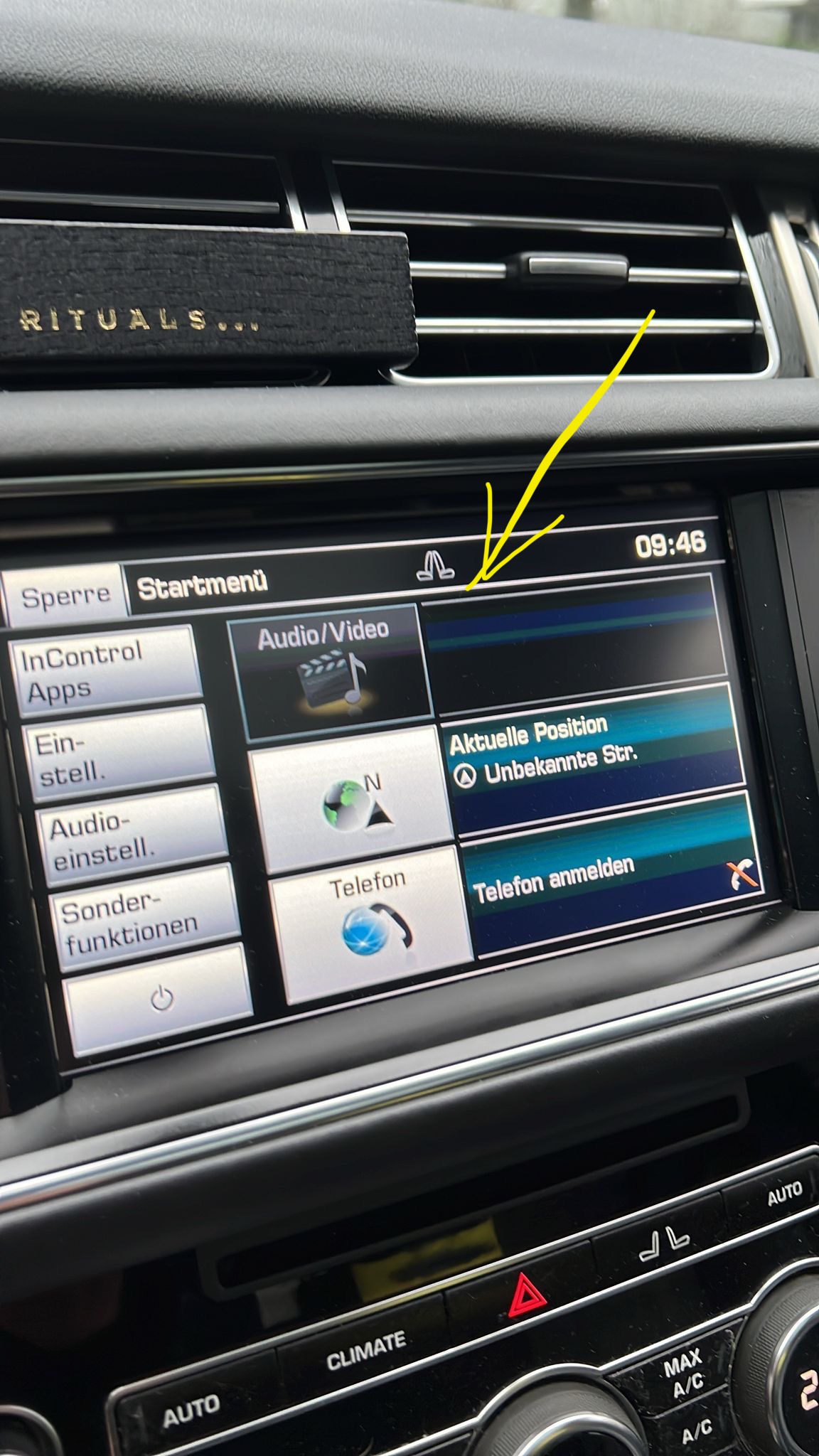

I attached a picture of the infotainment system. You can see i can't select any audio source anylonger. When i press on it nothing happens.

Thank you!!

BaronRR said:

Hello my RR friends!

i hope someone can help who had same or similar issue!

I recently drove and suddenly the bluetooth audio connection started to fail. It dis- and re connected itself a few times. Seemed weird. Then i tried to listen to Radio, but it also got cut off. Still showing a channel but couldn't select another. I thought maybe disconnecting the battery would help, but it didn't. I got worried. Next day no change. Then the audio source field in the infotainment system just went blank. No more sound. Also the navigation system said "loading" from now on. And there is a noice coming from cd changer below, as if its constantly changing.

Thats been it now for almost a week. I went to Land Rover dealer and they tried to update the software but couldn't. Aparently they got an error message that something is wrong with the "MOST" cable or network. And said they would need many hours to even find out whats wrong.
I can't afford to spend 1k only to find out what is wrong and had hope maybe someone here could give me a hint! Maybe something i can check myself or change myself.
Its a 2015 Range Rover Supercharged with a harman kardon logic7 sound system. Never had any issue before.

I attached a picture of the infotainment system. You can see i can't select any audio source anylonger. When i press on it nothing happens.

Thank you!!View attachment 306531

Click to expand...

Water ingress into the electronics in the rear left side quarter behind the trim is the most common problem.

^^^^what he said.
On the older models it's a process of elimination, I'd start by bypassing the bluetooth module with fibre loop but not sure if it's the same for later models.

backinblack said:

^^^^what he said.
On the older models it's a process of elimination, I'd start by bypassing the bluetooth module with fibre loop but not sure if it's the same for later models.

Click to expand...

Where is the module located?

On the earlier ones it's in the rear left quarter but 2015 may be different

backinblack said:

On the earlier ones it's in the rear left quarter but 2015 may be different

View attachment 306573

Click to expand...

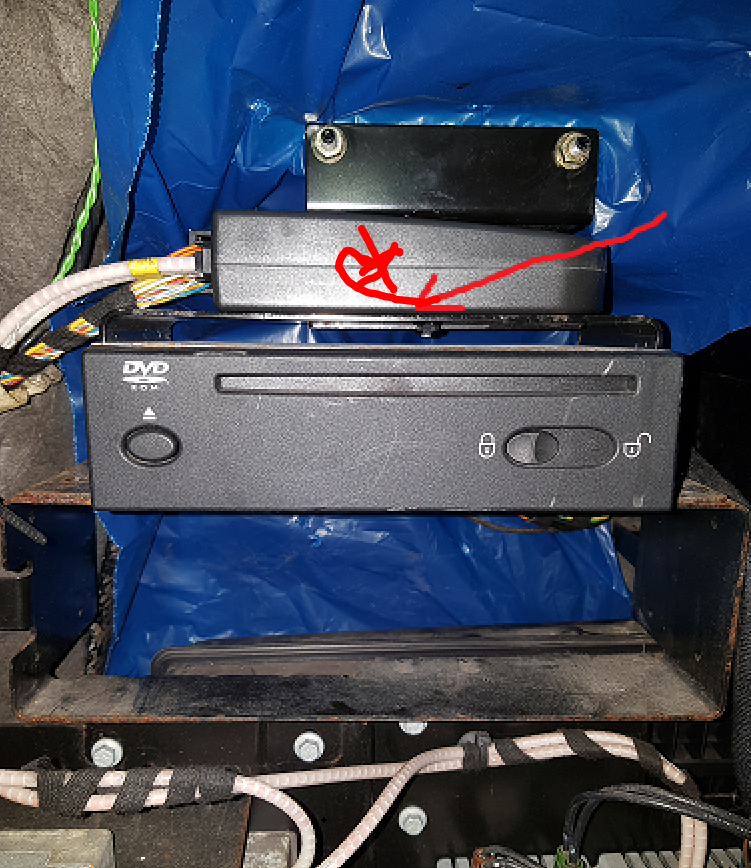

I opened both sides and what i found is this:

Sorry no idea for your year. Nice quilted carpet though
