ARB compressor CKMA12 fitting location

Morning all hope you are all having a good Mother's Day. I have brought a ARB Compressor not that I'm aloud to fit it today but am thinking of were where to mount it.

I can't put it in the batter box because I have two battery's there. Would behind the front seats of my 90 work or under the bonnet with my V8 be better. I am going to be running a rear locker so will need to run the airline to it as well. Any help would be much appreciated phots are alway a big help to see what you have done. Many thanks Simon

mines a 90 truckcab, arb compressor is fitted behind the middle seat, mounted to the rear bulkhead, but I have removed the middle seat from mine

On the top part of the bulkhead I have the high lift and I also have fitted a cubby box in the middle with a radio on the back of it. How have you run the airlines

Simon 90 v8 said:

On the top part of the bulkhead I have the high lift and I also have fitted a cubby box in the middle with a radio on the back of it. How have you run the airlines

Click to expand...

drilled floor behind seats, fitted a grommet and fed them through the hole and along chassis rails

Mine is behind the drivers seat on the bulkhead, nice and high. Remember you want to keep it dry, so don't put it under the bonnet or battery box because that is too low.

Thanks I'll have a look at the weekend you don't have any photos by any chance

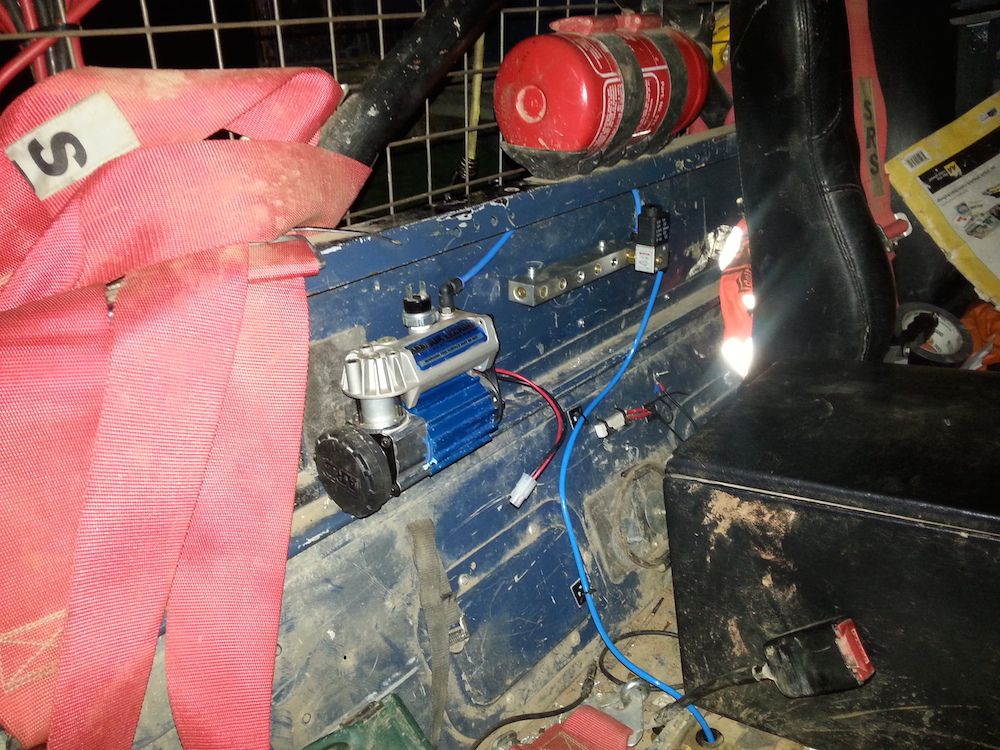

Attached. Taken before I had quite finished the install (no wiring and drivers seat is obviously out), but you can see where it is. On a side note, it's a total pain in the arse to do the bolts up when you try and attach it to something vertical

jackmac said:

Attached. Taken before I had quite finished the install (no wiring and drivers seat is obviously out), but you can see where it is. On a side note, it's a total pain in the arse to do the bolts up when you try and attach it to something vertical

Click to expand...

Thank you
