Air Suspension problems
- Thread starter arcadenut
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 33,912
- Location
- North Shropshire
Start with soapy water in a spray bottle.. bags, lines and connections.. go from there. Check bags at normal and extended height, access height too if you can
Datatek
Well-Known Member
- Posts
- 45,023
- Location
- Near Poitiers SW France
Leaking airbags is the most likely cause. If that proves the be the case, both should be replaced at the same time.
Welcome to the mad house.
Welcome to the mad house.
Thanks & noted.
It’s getting to them which is going to be tricky.
Datatek
Well-Known Member
- Posts
- 45,023
- Location
- Near Poitiers SW France
Try a search, others have had the same problem.
Sounds like you are probably right. Do you get any messages on the dash?
The use of the LR approved leak detection fluid is the best way to check bags
, failing that Fairy liquid+ water in a spray bottle works and is usually the first and cheapest diagnostic tool available.As you only leave it overnight it will only drop at the "leaky front". If you leave it longer does the back go down too?

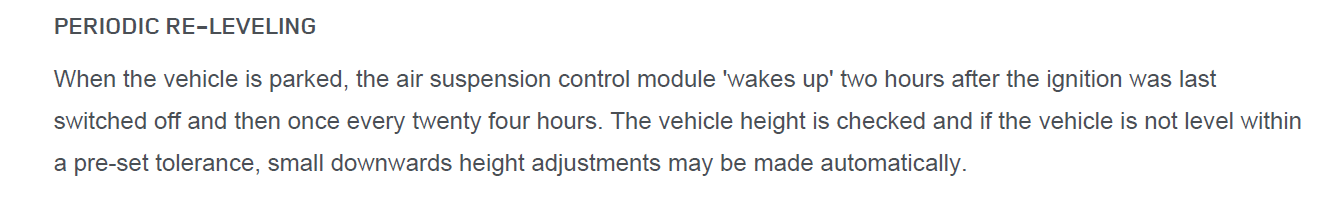

The newer 1s only self level every 24hrs. (from 2011 manual).
So as its only overnight and you say both fronts seem low would lead to both being knackered.
There will be a fuse in the rear fuse box you could pull to cut power to the module that controls the "periodic leveling) if pulled then left overnight and day (need 24hrs) it would show a droopy corner.
But as said replacing in pairs is really the way to go.
Reading of codes would be handy but wont tell you xx bag is leaking it will say something more confusing
. But if you are not getting a message it would probably not show a fault code.Fairy liquid keeps your hands soft too
.J
Oh and Welcome
its all fun in LR ownership.
