Air spring suspension lift kit

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Jack rush

Member
Posts
40
Location
Essex
Hi there looking at getting a 2 inch lift spring and shock air kit I'll leave a picture underneath I want to know what else I'll need to get or can I just bolt it straight on.

Also can someone shed some light on what exactly air suspension is please

Once again thanks please see pic below.


Attachments

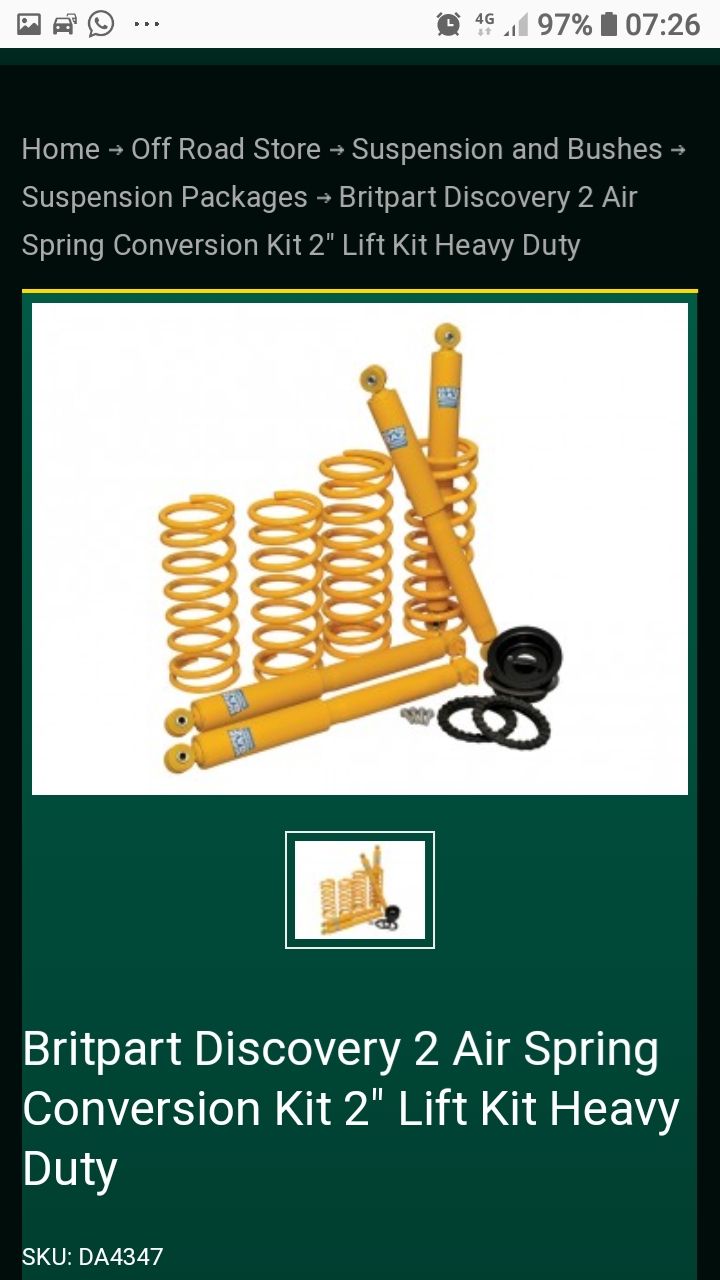

  • Screenshot_20181219-072618_Chrome.jpg
    87.2 KB · Views: 125
That looks like BritPart lift springs an dampers with new rear spring lower seats an top isolator rings.

Electric air suspension (EAS) is amazing, like riding a magic carpet, it replaced steel coils with pneumatic air bladders, still running shocks but the front shocks now sit afore the spring on separate mounts as they can no longer run through the center of the air spring, if I didn't off road as much as I do I'd fit them in a heart beat.

Your profile page shows you having a Disco 2, in which case there were some versions sold with steel coiled springs on the rear and other, mainly the seven seat version were sold with air suspension, also known as Self Levelling Suspension.
The simple way to tell which is on your vehicle is to just look at the rear axle, if there are coiled springs between the axle and the chassis then you don't have air suspension.
Some owners think that the SLS system is the work of the devil and should be ripped off and buried in a deep hole at the earliest opportunity. I and many others disagree, it's a good system and it's easy to understand. the main thing to remember is that the air springs or air bags should be treated as "service items" and changed every 5 years or so.
As for the lift, that's a mistake that many people make, fitting the lift before they get to know how the vehicle feels and works. A poorly fitted lift will adversely affect the handling of the vehicle.
Before you go for lifting, you must ask yourself some questions, not least is why you feel you need to lift the thing.
To find out more about lifting a Disco 2, take a look at this thread:-

https://www.landyzone.co.uk/land-rover/lifting-a-d2-properly.300573/#post-3749057

Fitting a lift by changing to steel springs instead of air bags will result in you losing the self levelling system as well as the ability to raise the suspension with just a flick of a switch on the dashboard.
There are some 2" lift blocks available for the air suspension which allow you to retain the air suspension facilities.
