air filter query

Discussion in 'Defender 90 / 110 / 130' started by witchlight, Sep 15, 2019.

< Previous Thread | Next Thread >
  1. witchlight

    witchlight Member

    Joined:
    Nov 6, 2018
    Posts:
    16
    Likes Received:
    2
    Location:
    Hampshire
    Hi there
    We are wondering why there is an open vent at the bottom of our Defenders air filter. I think it’s a Wolf/Donaldson filter

  2. Pappasmurf

    Pappasmurf Well-Known Member

    Joined:
    Apr 29, 2019
    Posts:
    353
    Likes Received:
    146
    Location:
    Barnsley
    Drain away water.

  3. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,193
    Likes Received:
    2,478
    Location:
    North of the Wall
    It should have a rubber, birds mouth valve on it.

  4. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,671
    Likes Received:
    1,028
    Location:
    Aberdeenshire
    One way valve to drain off water

  5. witchlight

    witchlight Member

    Joined:
    Nov 6, 2018
    Posts:
    16
    Likes Received:
    2
    Location:
    Hampshire
    We were wondering if the vent was to draw air in so we are totally wrong! What stops dust and muck going into the turbo?

  6. manchestershire

    manchestershire Active Member

    Joined:
    Jun 18, 2017
    Posts:
    125
    Likes Received:
    97
    Location:
    Peak district
    As far as I know, it's still on the "outside" of the filter element so it shouldn't cause the scenario that you're concerned about.

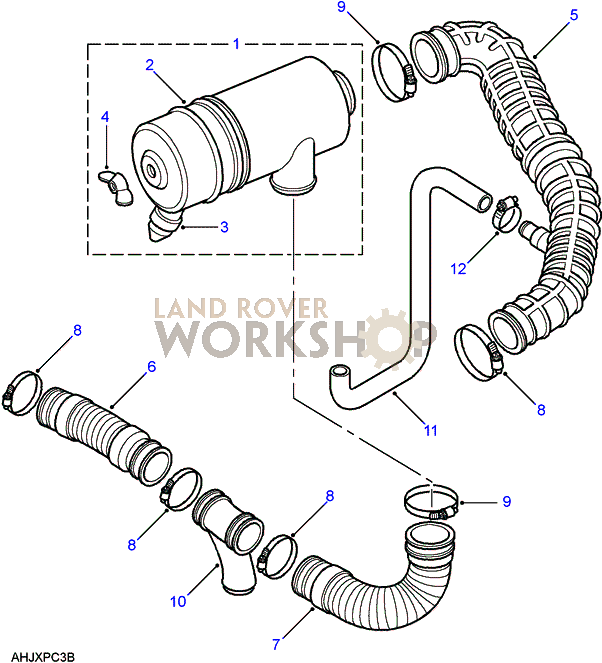

    Is it item 3 on the drawing?

  7. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,193
    Likes Received:
    2,478
    Location:
    North of the Wall
    Yes, as above, the air still has to go through the filter.

    Pappasmurf likes this.
  8. witchlight

    witchlight Member

    Joined:
    Nov 6, 2018
    Posts:
    16
    Likes Received:
    2
    Location:
    Hampshire
    hi, no it is the vent that is linked to 9 onthis diagram

  9. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,193
    Likes Received:
    2,478
    Location:
    North of the Wall
    Do you mean item No 10?
    That's another one way valve.

  10. Pappasmurf

    Pappasmurf Well-Known Member

    Joined:
    Apr 29, 2019
    Posts:
    353
    Likes Received:
    146
    Location:
    Barnsley
    So the air intake then? That's number 9. Should have the hose going to the wing.

  11. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,421
    Likes Received:
    7,952
    Location:
    Oxfordshireness
    9 is a jubilee clip.

    Cheers

    flat likes this.
  12. witchlight

    witchlight Member

    Joined:
    Nov 6, 2018
    Posts:
    16
    Likes Received:
    2
    Location:
    Hampshire
    I don’t think I am explaining myself very well sorry-the vent I am talking about is the in-numbered part within the box pointing directly downwards-the line then points down to the jubilee clip and a whole section of hoses and clips-we are missing this whole section for some reason

  13. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,193
    Likes Received:
    2,478
    Location:
    North of the Wall
    So, the whole of the pipework from the inner wing, where it's supposed to be attached to a grille there, to the air filter box, is missing?

    Pappasmurf likes this.
  14. Pappasmurf

    Pappasmurf Well-Known Member

    Joined:
    Apr 29, 2019
    Posts:
    353
    Likes Received:
    146
    Location:
    Barnsley
    So what I said then?

  15. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,421
    Likes Received:
    7,952
    Location:
    Oxfordshireness

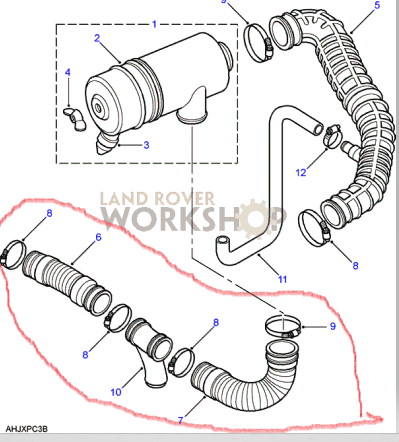

    So you are missing all this section? in the red ring?


    Cheers

  16. witchlight

    witchlight Member

    Joined:
    Nov 6, 2018
    Posts:
    16
    Likes Received:
    2
    Location:
    Hampshire
    Yes!

  17. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,193
    Likes Received:
    2,478
    Location:
    North of the Wall
    That means your sucking air in from the engine bay, rather than from outside your wing. The air going in that hole still has to go through the air filter, so nothing is going to get to your turbo or engine. The duct work will help deter water and spray getting direct access to the filter and help you get cooler air from outside. Worth a trip to a scrap yard to see if you can get that section. It's the sort of thing can can be expensive new, but I don't know for sure.
