P38A AC condenser

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

kermit_rr

Very
Full Member
Posts
33,852
Location
North Shropshire
Well i think I've finally found someone to do a proper job on recommissioning my aircon, but need help putting the condenser in place, the old one was missing so i don't have anything to refer to.

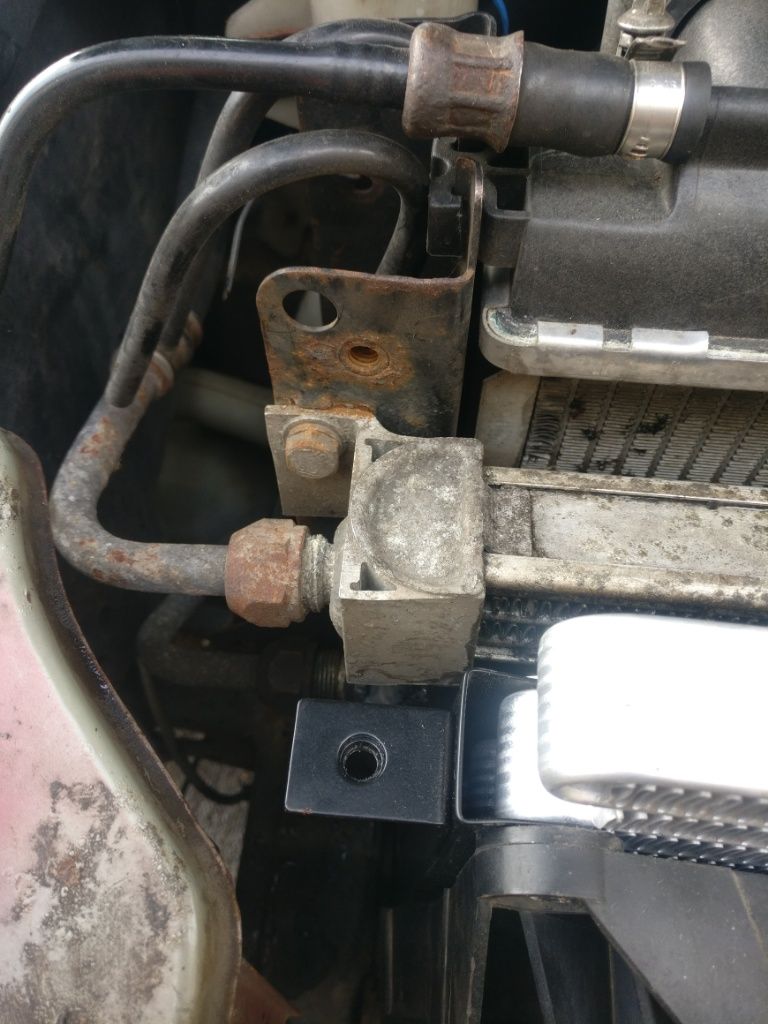

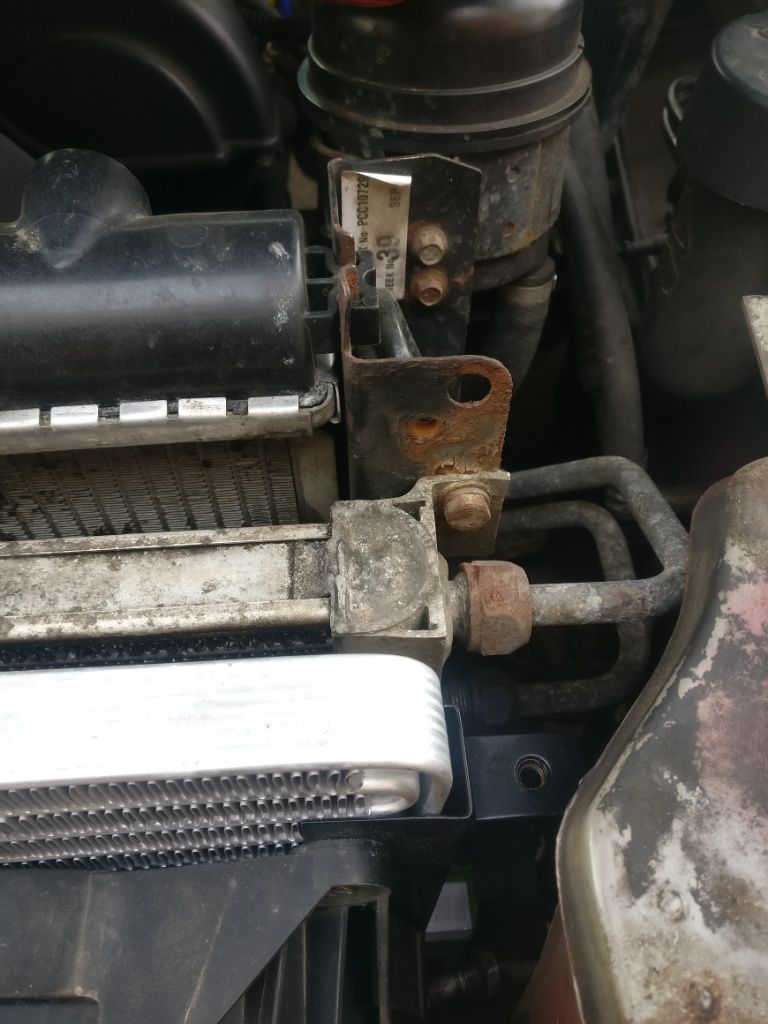

From the perspective of standing at the bumper facing the engine, to left and top right there are 2 captive bolts that look useful, although they don't line up with the captive bolts in the top of the condenser.. not a huge deal.

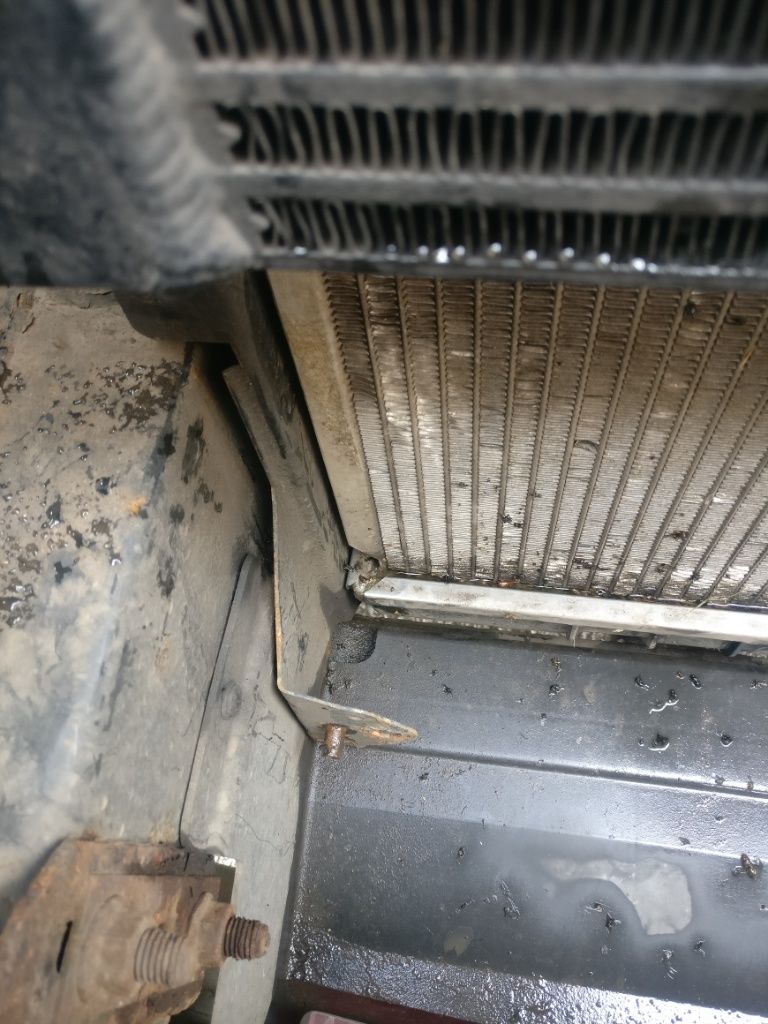

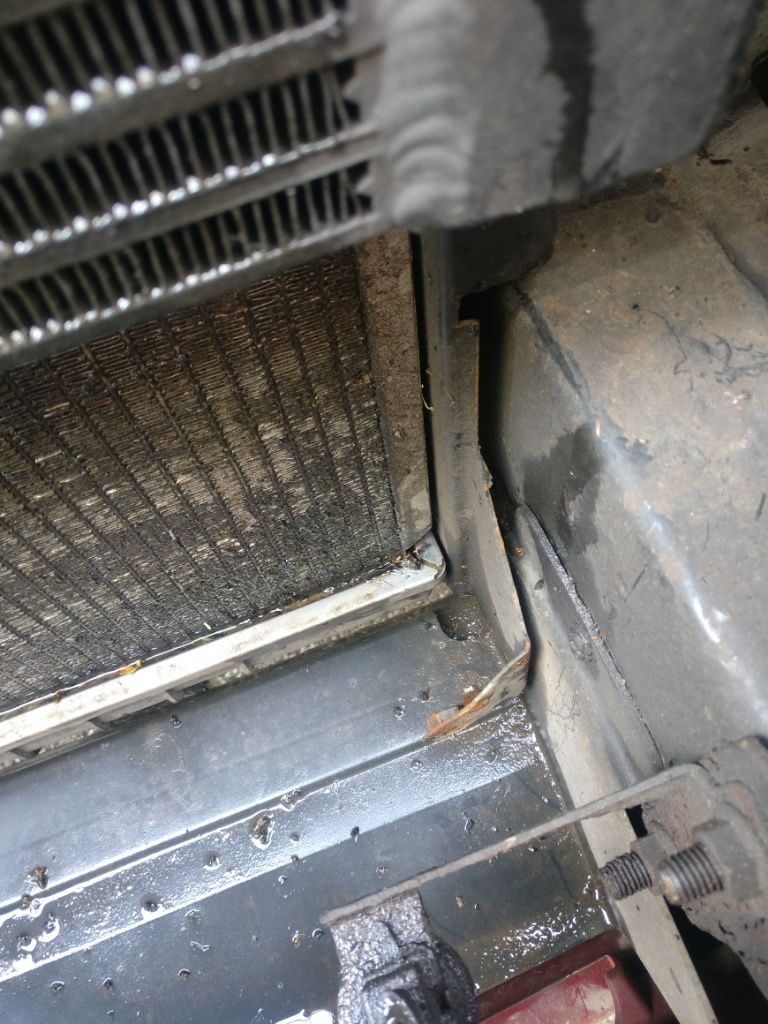

Bottom left, there's what looks like a locator pin? And bottom right another captive bolt which again doesn't seem to line up. Can anyone give me some pointers, better still some pics of how it should be?
Hopefully you can see my pics and relate to what I've described.
16272324254092.jpg 16272324254573.jpg 16272324096870.jpg 16272324098811.jpg

There should be 2 long bolts that go in the front at the bottom one each side two short bolts through them top holes then the other holes are for the fans I did mine a few weeks ago

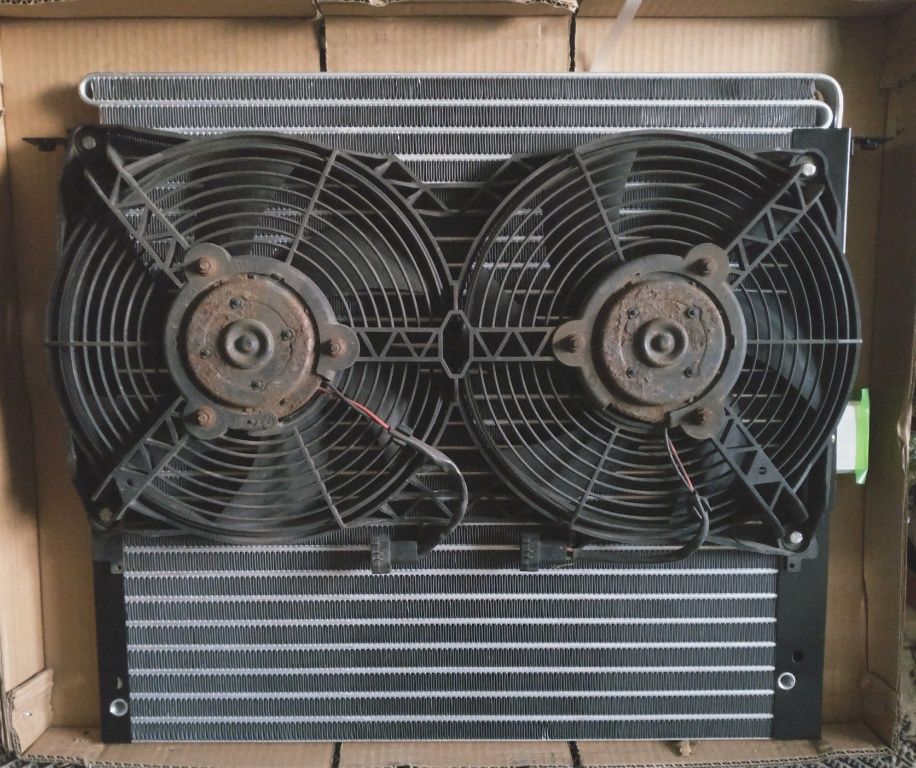

Here it is.. i thought the pin located in the hole in the lower left, obviously not!
I guess i need to make a bracket to bolt the condenser tabs to the captive bolts, stepping over the oil cooler
