P38A ABS Pump

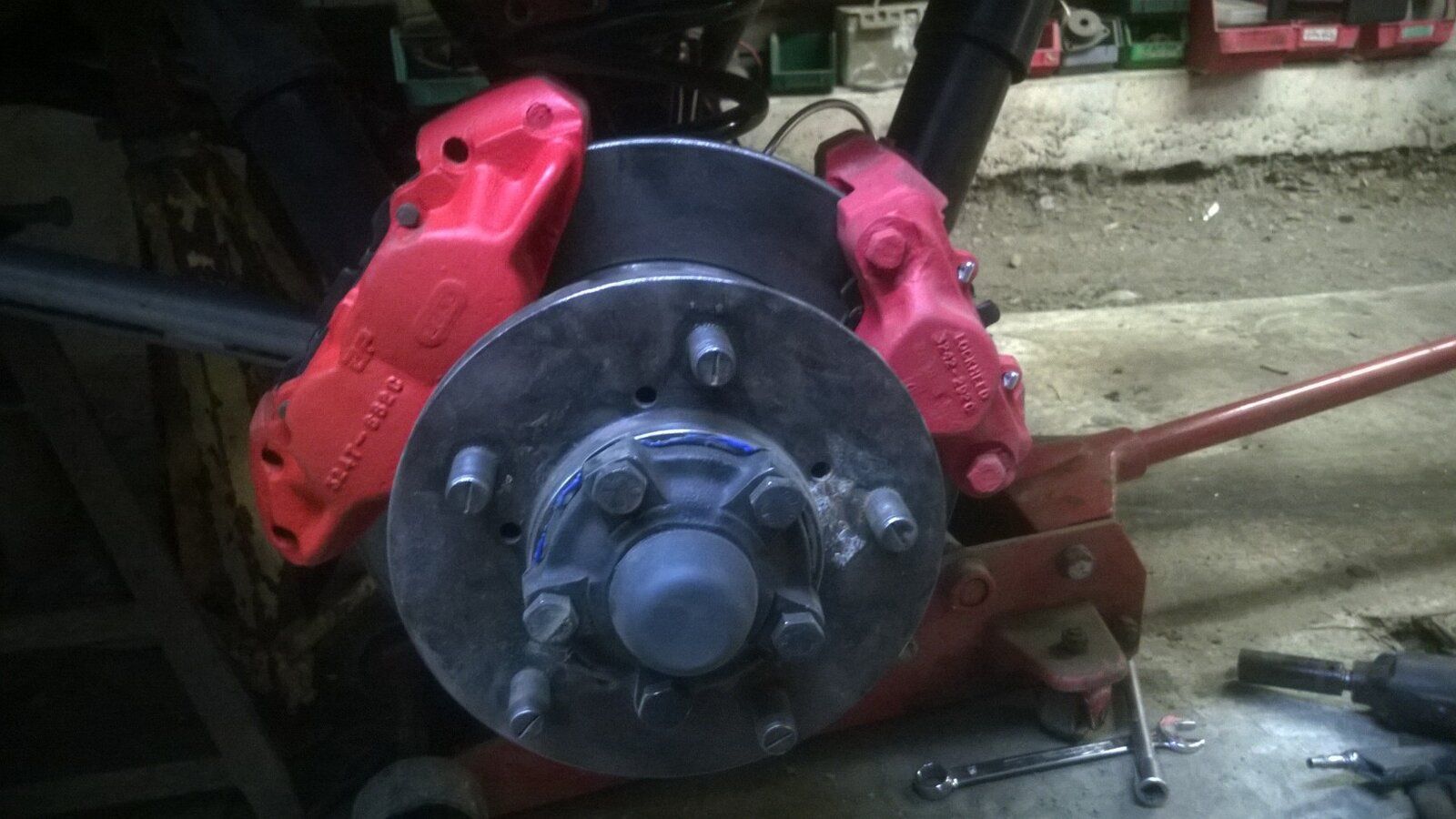

Just thought I would show the set caliper set up the large ones on the left are for the fiddle brakes
Hi need some help I’m trying to use a P38 ABS pump to power my fiddle brakes on my off roader I have installed a second pair of calipers bought a pump & a pair of solenoids for the rear axle I know I will need a fluid reservoir, do I need the relay PRC9566 or can I use a standard relay 40 amp. Can anybody help with the wires on the pressure switch. Cheers

Andy J said:

Hi need some help I’m trying to use a P38 ABS pump to power my fiddle brakes on my off roader I have installed a second pair of calipers bought a pump & a pair of solenoids for the rear axle I know I will need a fluid reservoir, do I need the relay PRC9566 or can I use a standard relay 40 amp. Can anybody help with the wires on the pressure switch. Cheers

Click to expand...

You're fitting p38 brakes to something else?

You'll need the modulator and pressure switch, together with the ABS ECU and wiring loom, ABS sensors and so forth. Wiring and full details in RAVE. Sounds like a bit of a project.

Grrrrrr said:

You're fitting p38 brakes to something else?

You'll need the modulator and pressure switch, together with the ABS ECU and wiring loom, ABS sensors and so forth. Wiring and full details in RAVE. Sounds like a bit of a project.

Click to expand...

Hi not the brakes system just using the pump to provide the pressure to operate calipers either on the left or right rear axle I have a complete pump unit with pressure switch and accumilator
