90 inlet hose 200tdi question ?
- Thread starter haza88
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 23,050
- Location
- In the next Glen

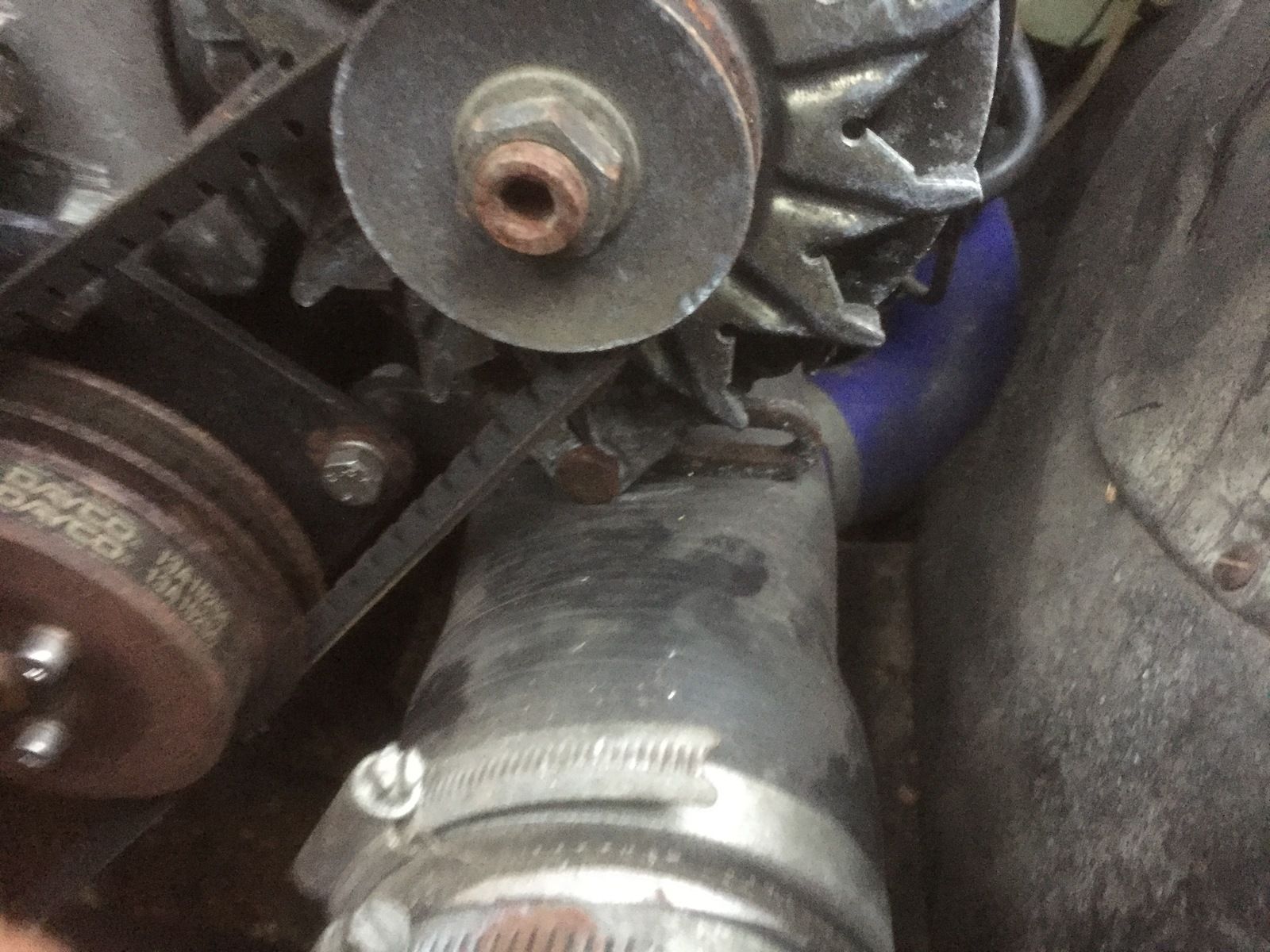

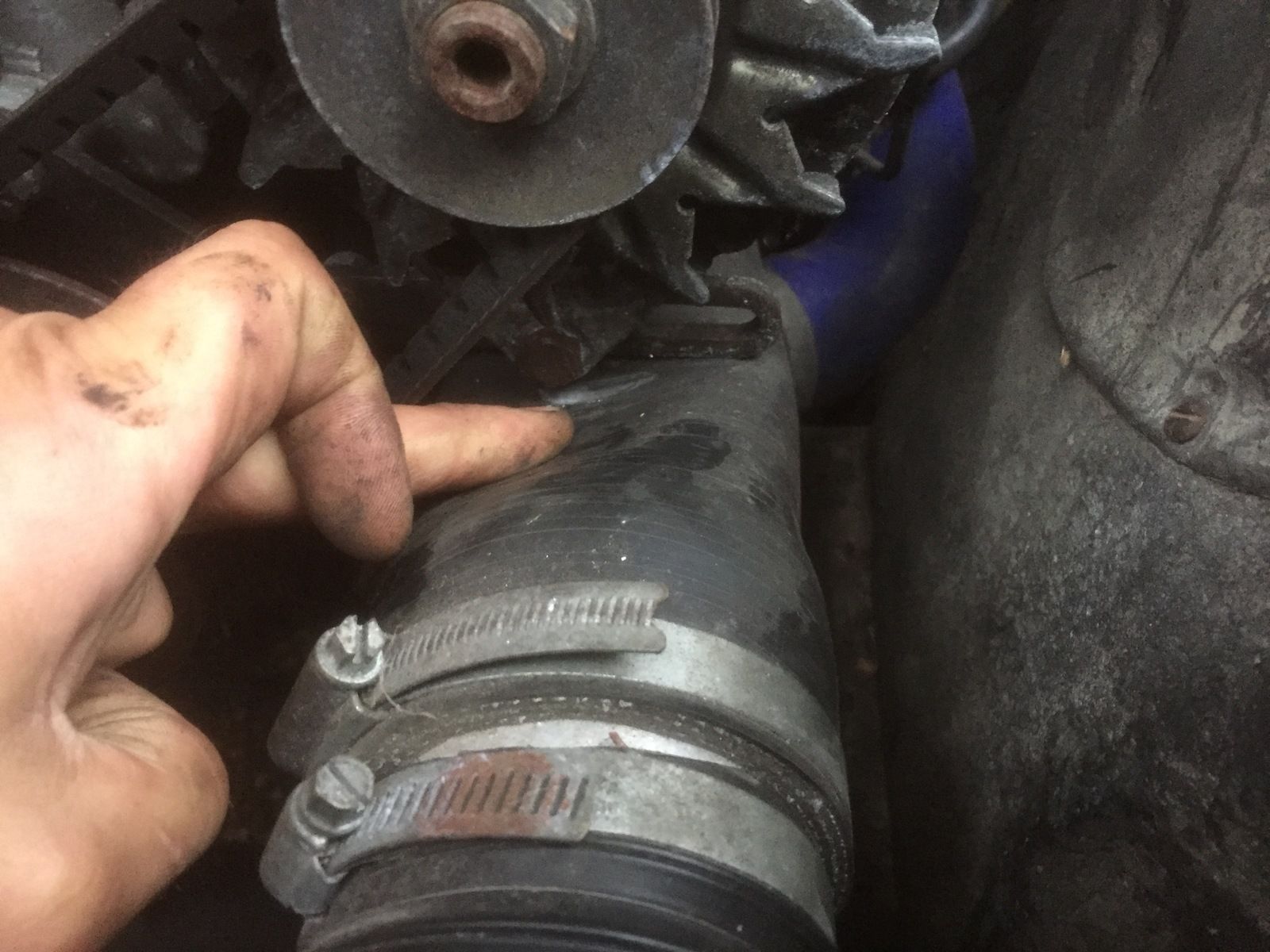

To me it looks like you need a longer fan belt which would allow for the alternator to swing up
giving you more clearance for the pipe.
- Posts
- 23,050
- Location
- In the next Glen
flat
Well-Known Member
- Posts
- 9,075
- Location
- Far away from you!!
The standard TDi part there is a metal tube with a squashed bit in it to clear all that area
Its because you have a disco 200 in a fender.
Im sure there were retrofit kits incl the hoses on ebay?
Ive just looked, search conversion kit 200tdi, Im not saying buy the entire kit, but it will give you ideas how to sort it yourself.
Im sure there were retrofit kits incl the hoses on ebay?
Ive just looked, search conversion kit 200tdi, Im not saying buy the entire kit, but it will give you ideas how to sort it yourself.
Can you fit the slider bracket the other way around so the fixed end is on the alternator and the sliding end is on the power steering bracket?
I also have a disco 200tdi in my 110 but I have far more clearance than that. I used a combination of pipework to get the routing correct. I have a silicone dicovery 200tdi turbo pipe which I have cut down and joined to a section of stainless pipe.
I also have a disco 200tdi in my 110 but I have far more clearance than that. I used a combination of pipework to get the routing correct. I have a silicone dicovery 200tdi turbo pipe which I have cut down and joined to a section of stainless pipe.
zeaphod
Well-Known Member
- Posts
- 3,107
- Location
- Belfast, Norn Iron
With a disco 200 conversion like yours, I found the disco hose worked well, although I have "clocked" the turbo, which moves the outlet pipe out of the way.
bluedog333
Well-Known Member
- Posts
- 5,450
- Location
- Henley on Thames, Oxfordshire
Steve Parker conversion kit from FleaBay. Did it on mine as I’ve got a Disco 200tdi lump conversion too. Kit works great, you can probably assemble your own for cheaper, but it’s not a vast expense for the job to be done.

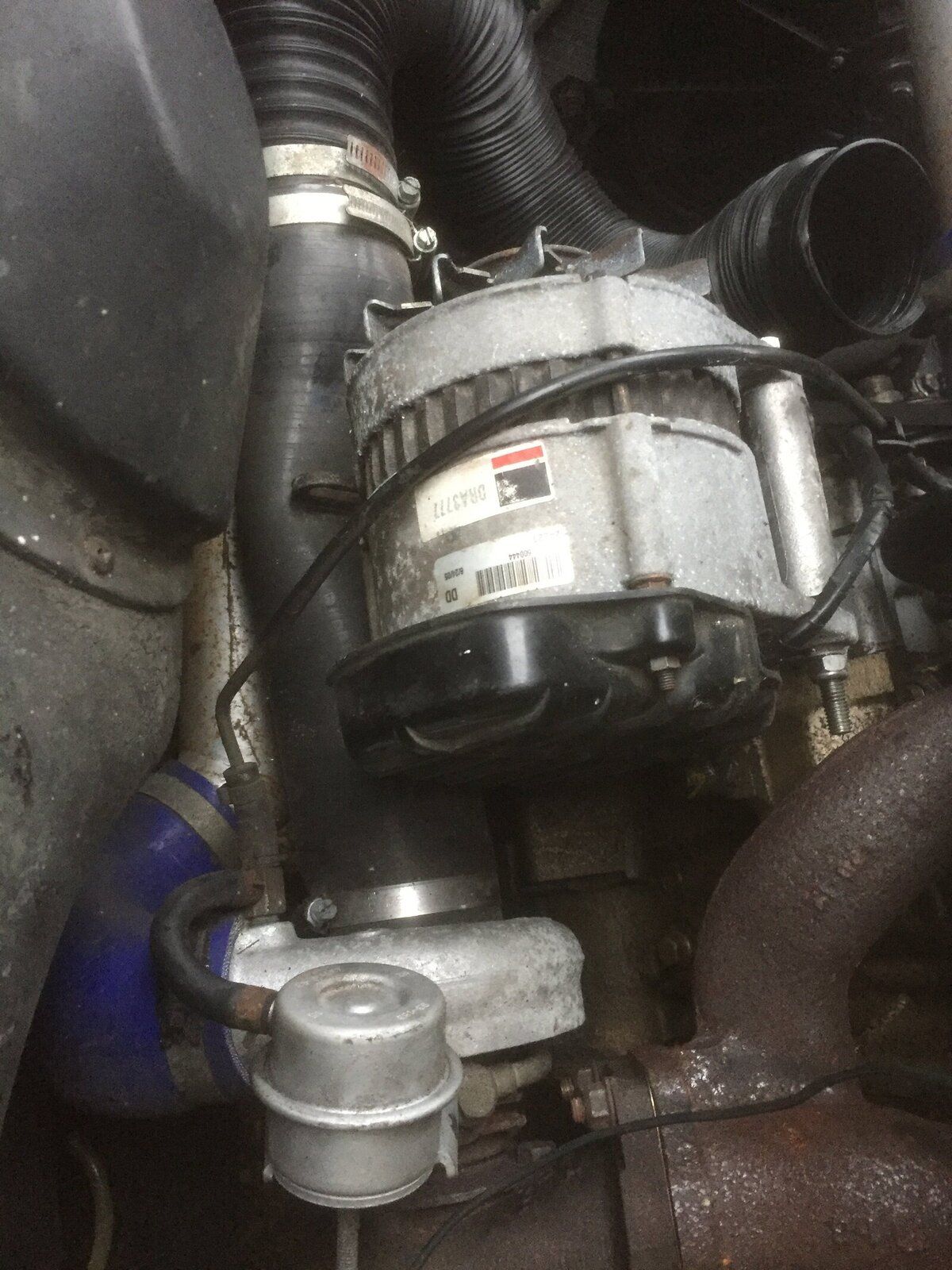

Will try and take some at lunch but it is not the easiest to see as I still have the TD air-box in the original position. The intake pipe comes out of the turbo past the alternator (disco silicone turbo pipe) and then turn 90 up (stainless pipebend) to run up the side of the air-box (in-front of the alternator) before doing a 180 turn (series 3 oil-bath flexible intake pipe) into the top of the air-box.
None of it is pretty but it works and is water tight which are the important things for me.
