RustyDefender
Well-Known Member
- Posts
- 568
- Location
- Lake District
300tdi hoses
- Thread starter RustyDefender
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 23,065
- Location
- In the next Glen
When I dont my last conversion I bought a silicone hose kit, cut the shortest ones in the middle & used stainless pipe
to extend them with nice polished stainless jubilee clips. I done the same with my power steering pipes as they were
too short but new lying in the shed so chop chop.
Anaconda
Well-Known Member
- Posts
- 3,708
- Location
- Thames Valley

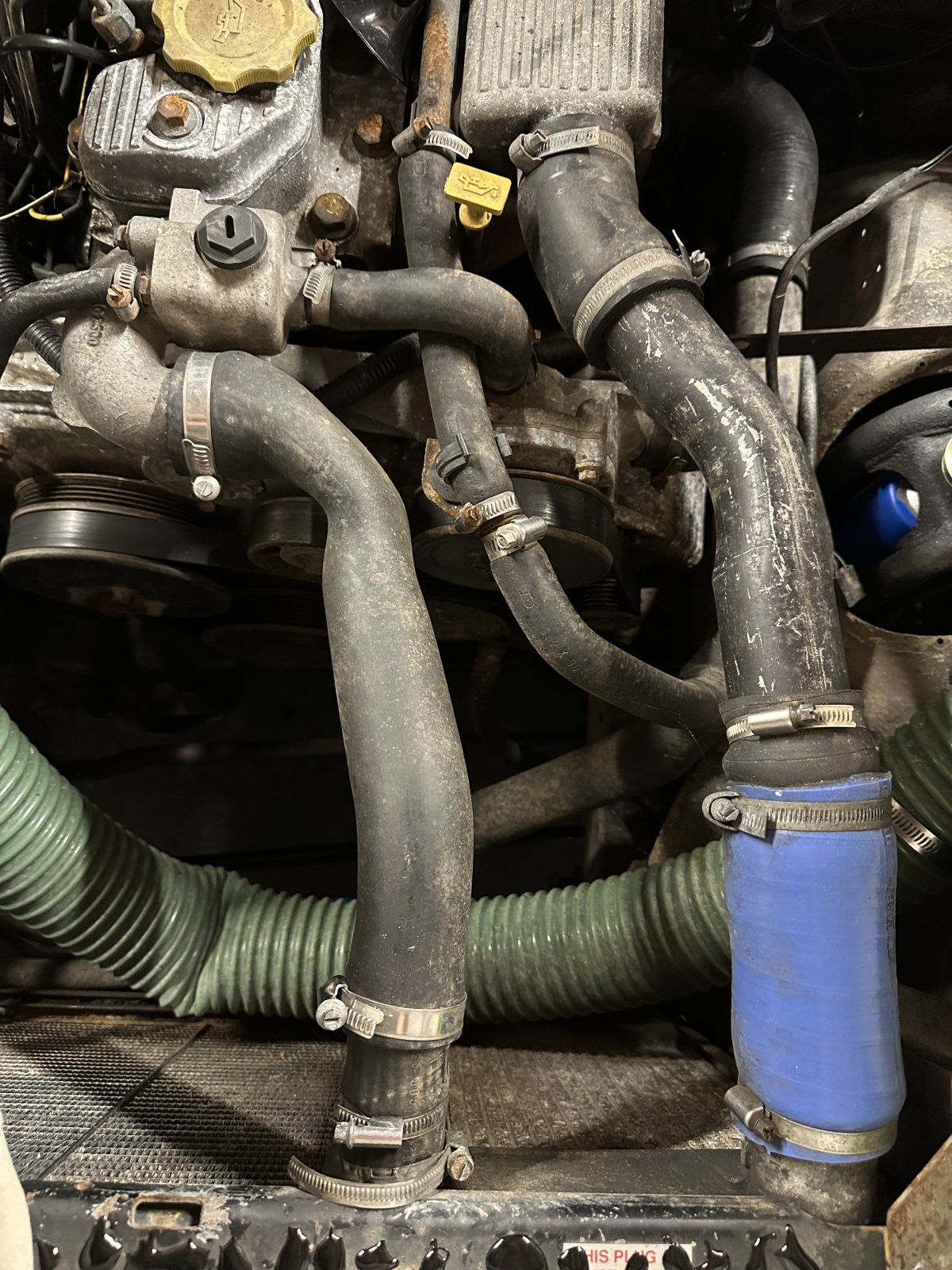

What's going on with the top hose? It looks like a hose clamped to a smaller hose and then clamped to the rad!
RustyDefender
Well-Known Member
- Posts
- 568
- Location
- Lake District
Just the final tail of the power steering hose not the middle bit with connectors either side right?When I dont my last conversion I bought a silicone hose kit, cut the shortest ones in the middle & used stainless pipe
to extend them with nice polished stainless jubilee clips. I done the same with my power steering pipes as they were
too short but new lying in the shed so chop chop.
Any idea on sizes to order? I’ve found a kit I want already but need the stainless steel bit
RustyDefender
Well-Known Member
- Posts
- 568
- Location
- Lake District
Too short due to 300tdi conversion, very common
Anaconda
Well-Known Member
- Posts
- 3,708
- Location
- Thames Valley
That makes more sense.
tottot
Well-Known Member
- Posts
- 8,082
- Location
- west wales coast
Steve Parker does a 300tdi to LT 77 hose conversion kit.
If looking for some stainless tube there is likely a farm dairy parts supplier in your area, may even have some off cuts.
If looking for some stainless tube there is likely a farm dairy parts supplier in your area, may even have some off cuts.
- Posts
- 23,065
- Location
- In the next Glen
Nope it was the pipes with the pipe fittings either side, worked a treat for 5 years until I sold it.
I dont recall the sizes off hand.
RustyDefender
Well-Known Member
- Posts
- 568
- Location
- Lake District
Like the exact length I need?
tottot
Well-Known Member
- Posts
- 8,082
- Location
- west wales coast
Sure it can be cut to length you need.
RustyDefender
Well-Known Member
- Posts
- 568
- Location
- Lake District
Sorry i meant, the kit they do are a set of extended hoses right and i don't have to bodge it together?
tottot
Well-Known Member
- Posts
- 8,082
- Location
- west wales coast
Yes, they do a kit just for 300tdi to LT77 short bell housing. Find on the Ebay or Steve Parker on the web.
RustyDefender
Well-Known Member
- Posts
- 568
- Location
- Lake District
Yeah 100% but if there's a kit.. then that saves me making the whole thing look ugly..
RustyDefender
Well-Known Member
- Posts
- 568
- Location
- Lake District
I'm actually laughing at this build.. previous owner didn't want to buy a bigger bell housing so they just cut the engine mounts off and welded them back 6 inch
tottot
Well-Known Member
- Posts
- 8,082
- Location
- west wales coast
It is more common to find 200's fitted to a Lt 77 as this is pretty much a straight swap with just rad mounts and exhaust [if Disco 200]needing modification.
Finding a long bellhousing for Lt77 another matter. I think some were made for 200 engine Range Rover.
So moving engine mounts reward to fit 300 is the answer.
Finding a long bellhousing for Lt77 another matter. I think some were made for 200 engine Range Rover.
So moving engine mounts reward to fit 300 is the answer.
It will look very smart if you get the correct angled silicone hoses, then do as suggested with the stainless intercooler pipes.
