300tdi front crankcase seal direction....

S

sundogcwolfe

New Member

Posts

6

Location

Duluth, MN USA

• Nov 27, 2018

• #1

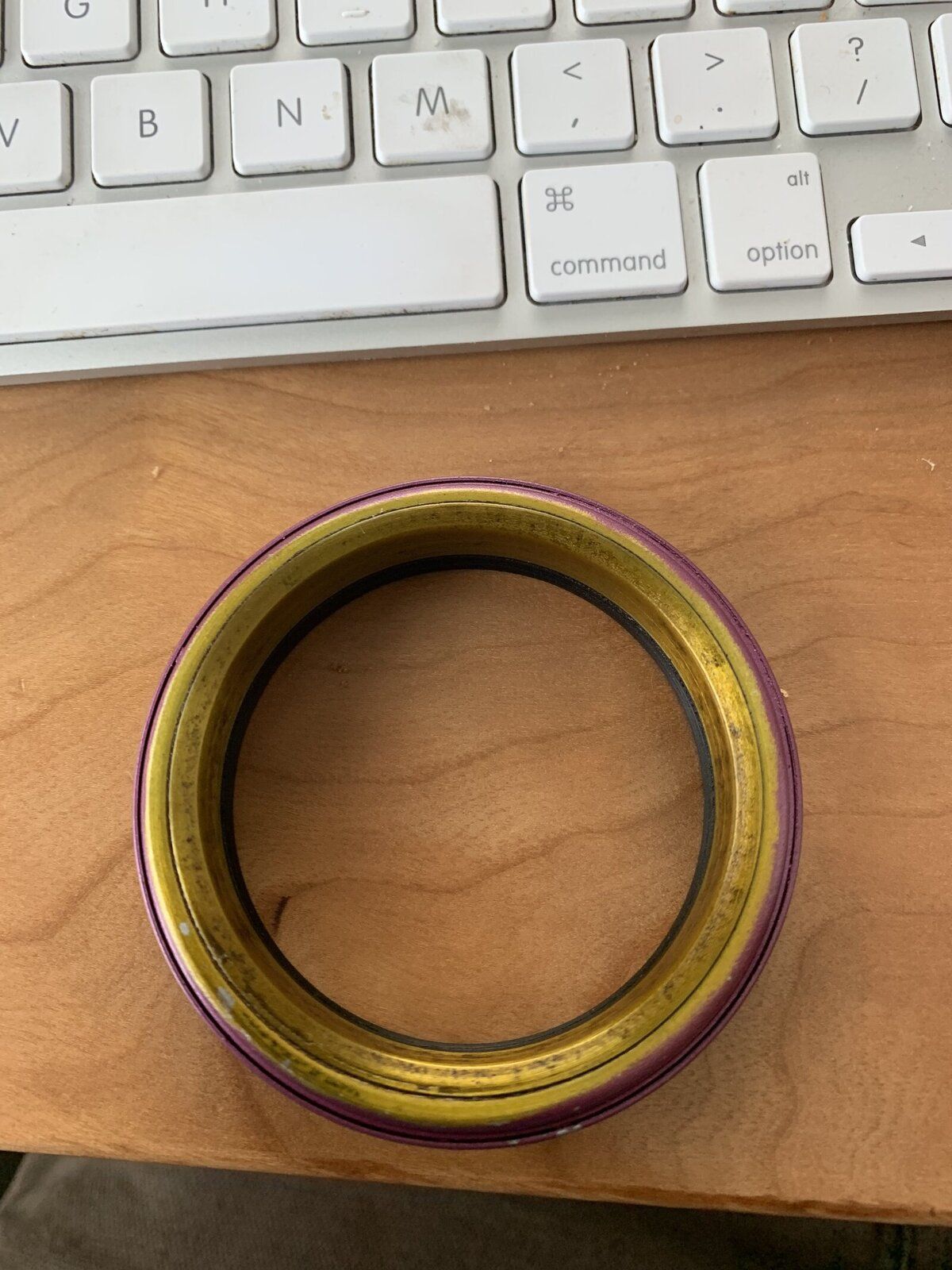

Replacing my front crank shaft seal Bearmach ERR7143.
I am unsure which side should be facing inward toward bearing and which should be pointing out.

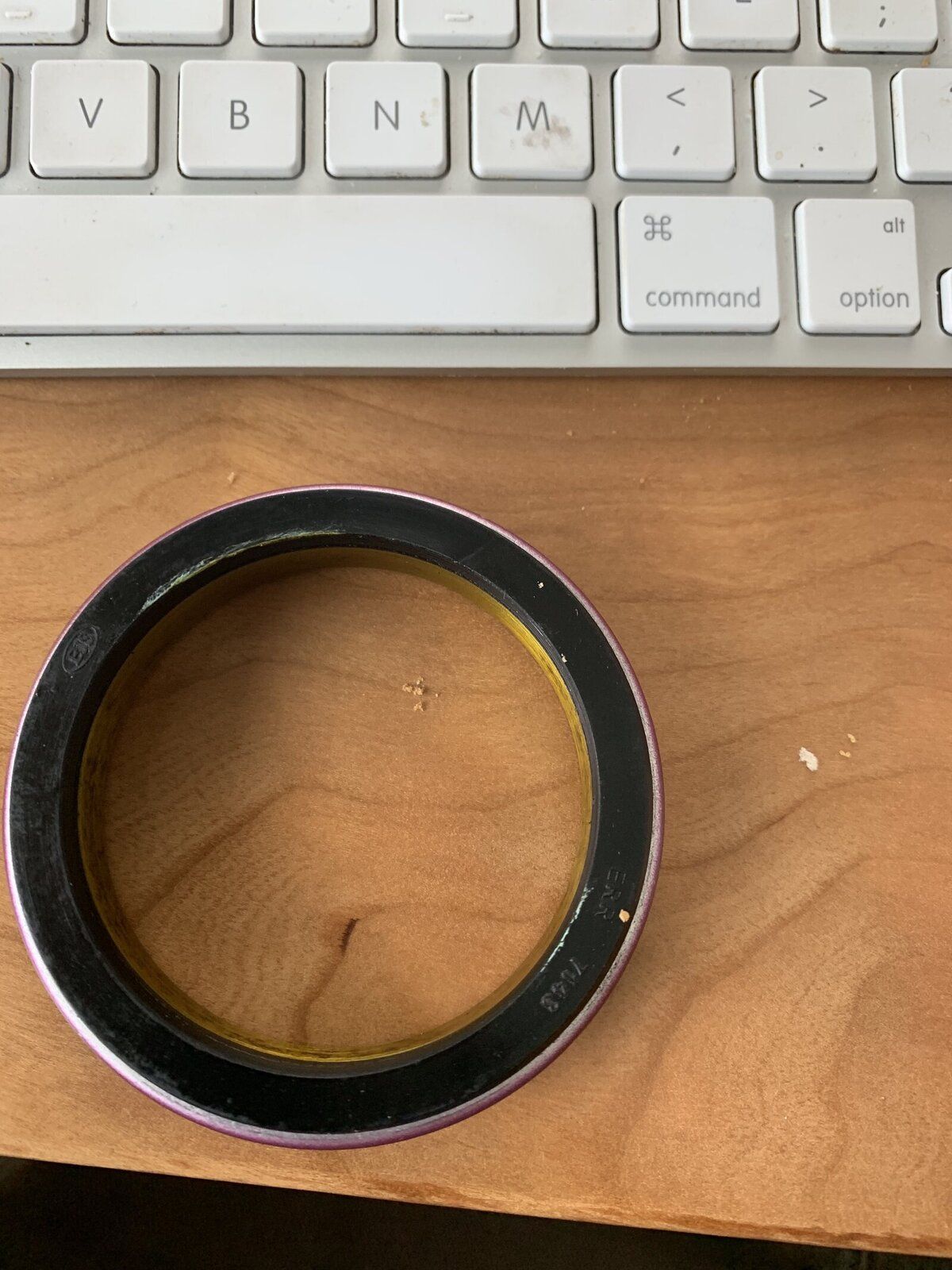

The black /rubber side in??I



Attachments

•

  262.4 KB · Views: 219
•

  247.6 KB · Views: 134

Al2O3

Well-Known Member

Full Member

Posts

11,023

Location

North of the Wall

• Nov 27, 2018

• #2

sundogcwolfe said:

Replacing my front crank shaft seal Bearmach ERR7143.
I am unsure which side should be facing inward toward bearing and which should be pointing out.
The black /rubber side in??I

Click to expand...

Yes.



Al2O3

Well-Known Member

Full Member

Posts

11,023

Location

North of the Wall

• Nov 27, 2018

• #3

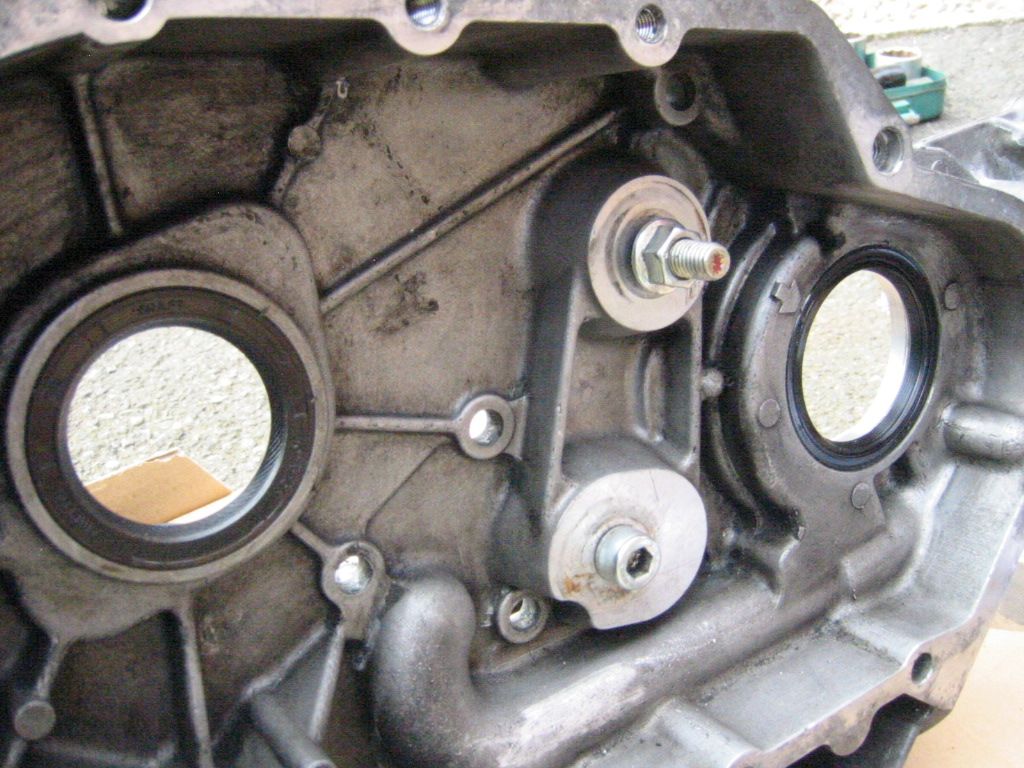

Here you go.



L

lynall

Well-Known Member

Full Member

Posts

25,891

Location

Kent

• Nov 27, 2018

• #4

If its a std seal the garter spring is normally the pressure side ie the side yoyu want to stop the fluid excaping from.
