300td I air filter hose

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
T

tempest

Member
Posts
42
Putting my 300tdi defender air intake back to standard. The pipe that I have got. from the air box to the turbo on the first bend from the air box it has a small pipe connected to it. Can anyone tell me where this goes or is it needed because I can't see this pipe on any diagrams.

tempest said:
Putting my 300tdi defender air intake back to standard. The pipe that I have got. from the air box to the turbo on the first bend from the air box it has a small pipe connected to it. Can anyone tell me where this goes or is it needed because I can't see this pipe on any diagrams.
Click to expand...

Is that the one that goes round the back of the engine then onto the oil catch can/breather.

tempest said:
I'm not shure .when I got the hose it had that small pipe on and couldn't find where it went
Click to expand...

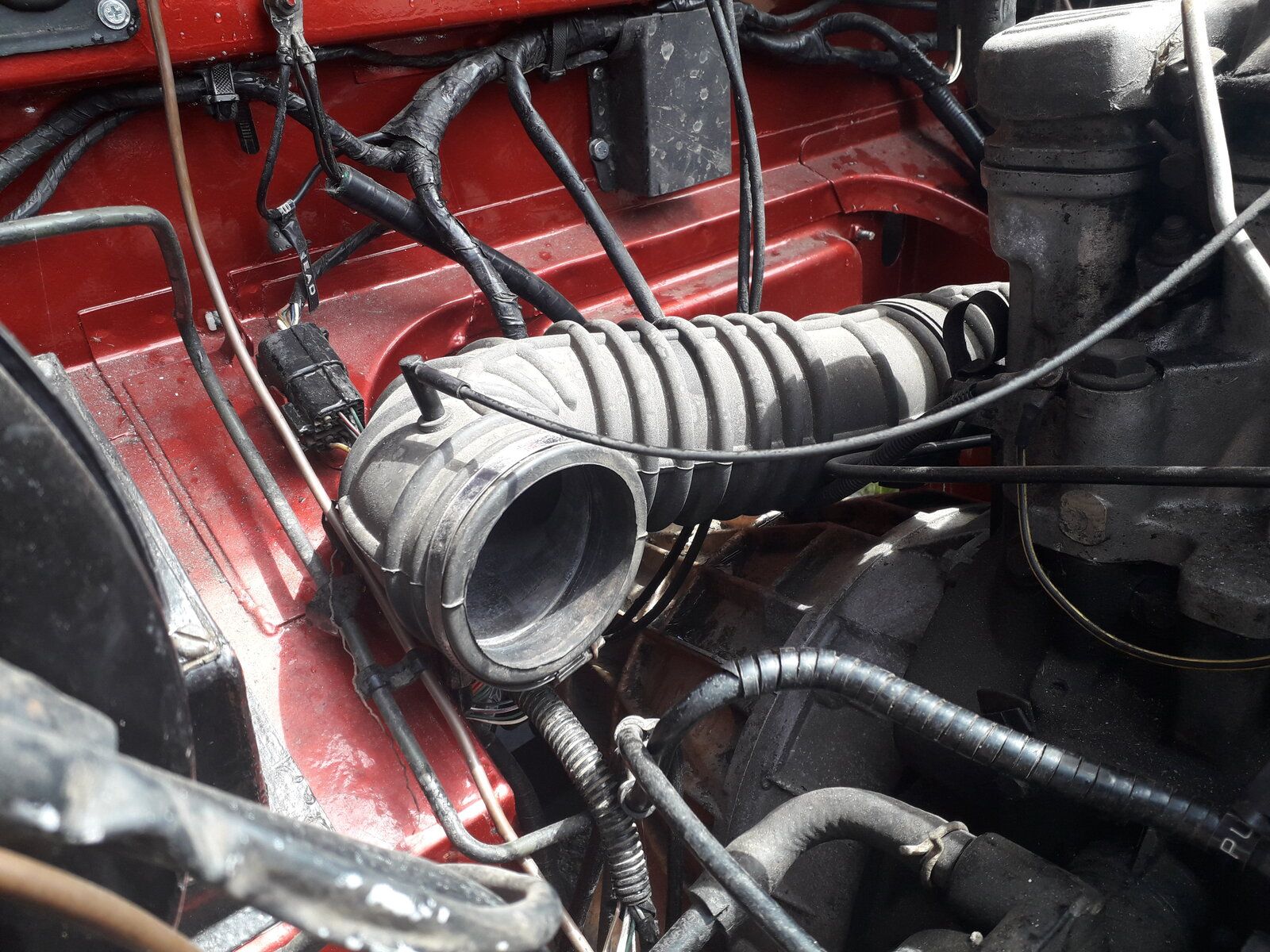

This one? the one coming out in the top of the picture.


Cheers

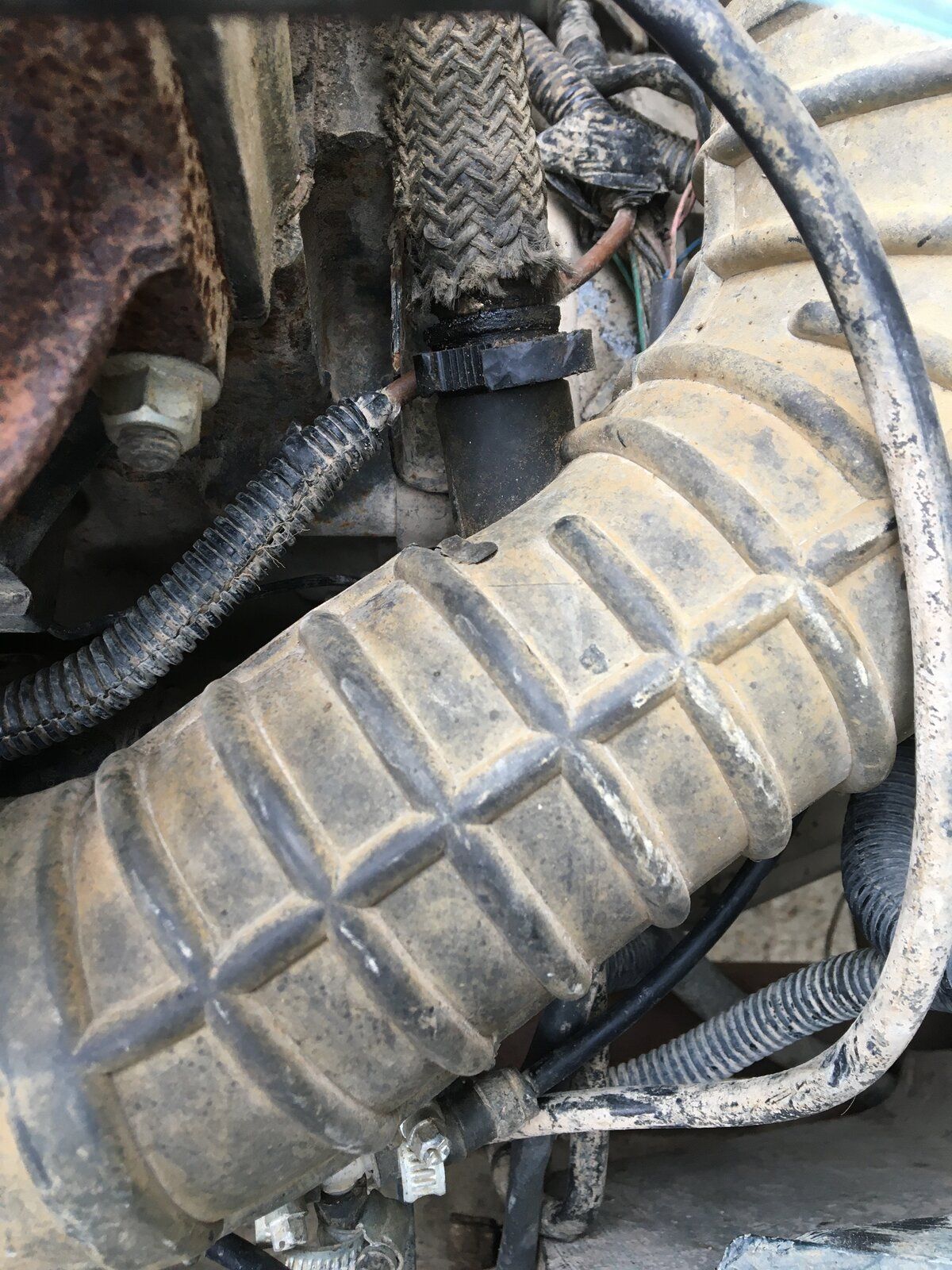

No. It's at the other end near the air box .It's only about 5mms wide. And comes out of the pipe with an elbow

tempest said:
Putting my 300tdi defender air intake back to standard. The pipe that I have got. from the air box to the turbo on the first bend from the air box it has a small pipe connected to it. Can anyone tell me where this goes or is it needed because I can't see this pipe on any diagrams.
Click to expand...
Did yopu ever find out where that pipe went? I have the same issue.
