300 TDI - Does anybody know what shoud be in this hole, bottom of cam belt housing

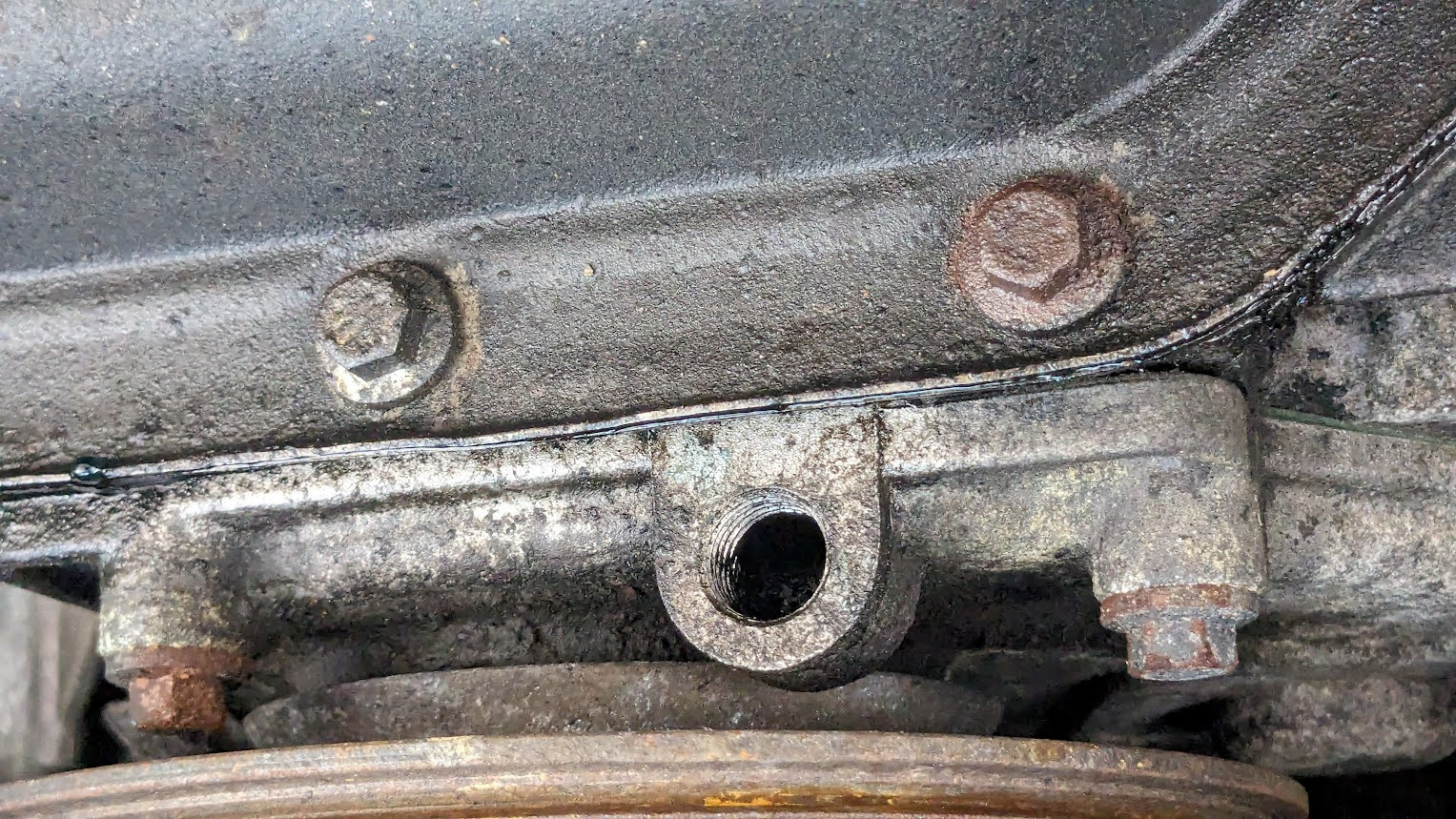

300 TDI - Does anybody know what shoud be in this hole, bottom of cam belt housing please ?

Wagon Loon said:

300 TDI - Does anybody know what shoud be in this hole, bottom of cam belt housing please ?
View attachment 309421

Click to expand...

If you are going through deep water you are supposed to put a plug in there to keep the water off the clutch. Remove when you aren’t

Thanks, although it's actually at the front of the engine, at the bottom of cam belt housing

Another wading plug goes in that hole as well
Same size bolt as the one for the bellhousing

Thanks, I'm just concerned ****e could get in at the cam belt, don't have a plug but I could probably make one.

Unless going in deep water you don't need one as any oil that leaks into cam housing can then escape.
If fitted then regular removal to drain/check housing.

Wading plugs hole - the name gives it away really. I wouldn't fi them in mine unless going through water. Easily purchased from ebay or a LR parts supplier. Keep them in the vehicle just in case!

If tool wrap is still behind seat may be in there.

That sounds like a job to do
The tools are all untouched for decades by the looks of them, so it may be a good thing to give them a clean up and service thanks

Ive got a sparkplug in mine

If the sparkplug fits

kevstar said:

Ive got a sparkplug in mine

Click to expand...

Long or short reach?

Wagon Loon said:

Thanks, I'm just concerned ****e could get in at the cam belt, don't have a plug but I could probably make one.

Click to expand...

The cam belt is more likely to get contaminated with the plug in.

The casing can fill up with condensation, or oil leakage from the front crank seal, and this will eventually reach the bottom of the belt.

kevstar said:

Ive got a sparkplug in mine

Click to expand...

But did you put the electric lead and cap on from the High pressure diesel pump? And was it quicker?

J

Def90man said:

Long or short reach?

Click to expand...

Long iirc

kevstar said:

Long iirc

Click to expand...

If you were ever to sell it, I would put a plug lead on it just to confuse to new owners

marjon said:

But did you put the electric lead and cap on from the High pressure diesel pump? And was it quicker?

J

Click to expand...

Yup highly recommended, egt was up on towing tho.

Def90man said:

If you were ever to sell it, I would put a plug lead on it just to confuse to new owners

Click to expand...

Think I'll do it at mot time just to prank my mate

kevstar said:

Think I'll do it at mot time just to prank my mate

Click to expand...

Just need to tuck the other end out of sight

Def90man said:

Just need to tuck the other end out of sight

Click to expand...

Ive got a spare coil I'll put it onto that
