200tdi struggling to start - fuel?

Discussion in 'Defender 90 / 110 / 130' started by bluedog333, Aug 16, 2020.

< Previous Thread | Next Thread >
  1. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire
    For a while now my Disco 200-engined tratter has struggled to start if left unstarted for a few days. This has now become overnight. Once started, she runs fine and will restart no problem throughout the day. The starter will spin for about 10-15 secs, fire up then die, it will then start. To me, it feels like air getting in/fuel draining down. Where should I start to look? I’ve replaced all the leak-off pipes as they looked a bit old and perhaps porous, I’ve got a new fuel filter on order. Anything else?
    The symptoms don’t really point to the solenoid, but I’m happy for someone to say otherwise!
    Cheers

  2. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    6,007
    Likes Received:
    1,998
    Location:
    west wales coast
    You are on the right track bluedog, air getting into the system while standing causing fuel to drain back to the tank. Fuel filter and leak off pipe's are the common cause. Lift pump next port of call after you have done the filter. Cheers.

  3. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    968
    Likes Received:
    340
    Location:
    Forfar/Dundee
    Is the battery still up to the job.
    As it gets weak it slowly has trouble spinning the engine fast enough.
    Eventually there is not enough grunt to start it at all.

  4. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    2,536
    Likes Received:
    806
    Location:
    Lost
    Put a piece clear plastic in the fuel line. Move it round until you find the join that has no air going into it, but air coming out. On my 200, it was the main fuel line from the pickup pipe to the lift pump.

  5. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire
    Cheers Mick. Did the engine have any running issues when it actually started?

  6. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    2,536
    Likes Received:
    806
    Location:
    Lost
    No, it would drive fine for a few miles, and then all of a sudden die. Struggle to start, eventually start, then drive fine again for another few miles. If you drove like miss daisy, slowly slowly, then it drove ok with occasional misfire.

    Edit: I will say that mine appeared to have quite large air bubbles entering the fuel line, so I would guess less air will give different symptoms.

    It didn’t take long to fix it. I bought a 25mtr roll of fuel hose, and replaced everything from the tank to the injection pump. It’s all piped up in the same size now, not a narrower return pipe like standard.

  7. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire
    If the fuel filter & leak off pipes don’t fix it I think I’ll go down this route and replace all the fuel line!

    mick 1986 and Hicap phill like this.
  8. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    6,007
    Likes Received:
    1,998
    Location:
    west wales coast
    Don't forget the lift pump. A pin hole in the diaphragm is enough to cause problems.

    bluedog333 likes this.
  9. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    19,548
    Likes Received:
    19,126
    Location:
    Kent
    Do not forget the old favourite, the stop solenoid, especially the wiring connector itself, solenoids under a tenner.

  10. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire

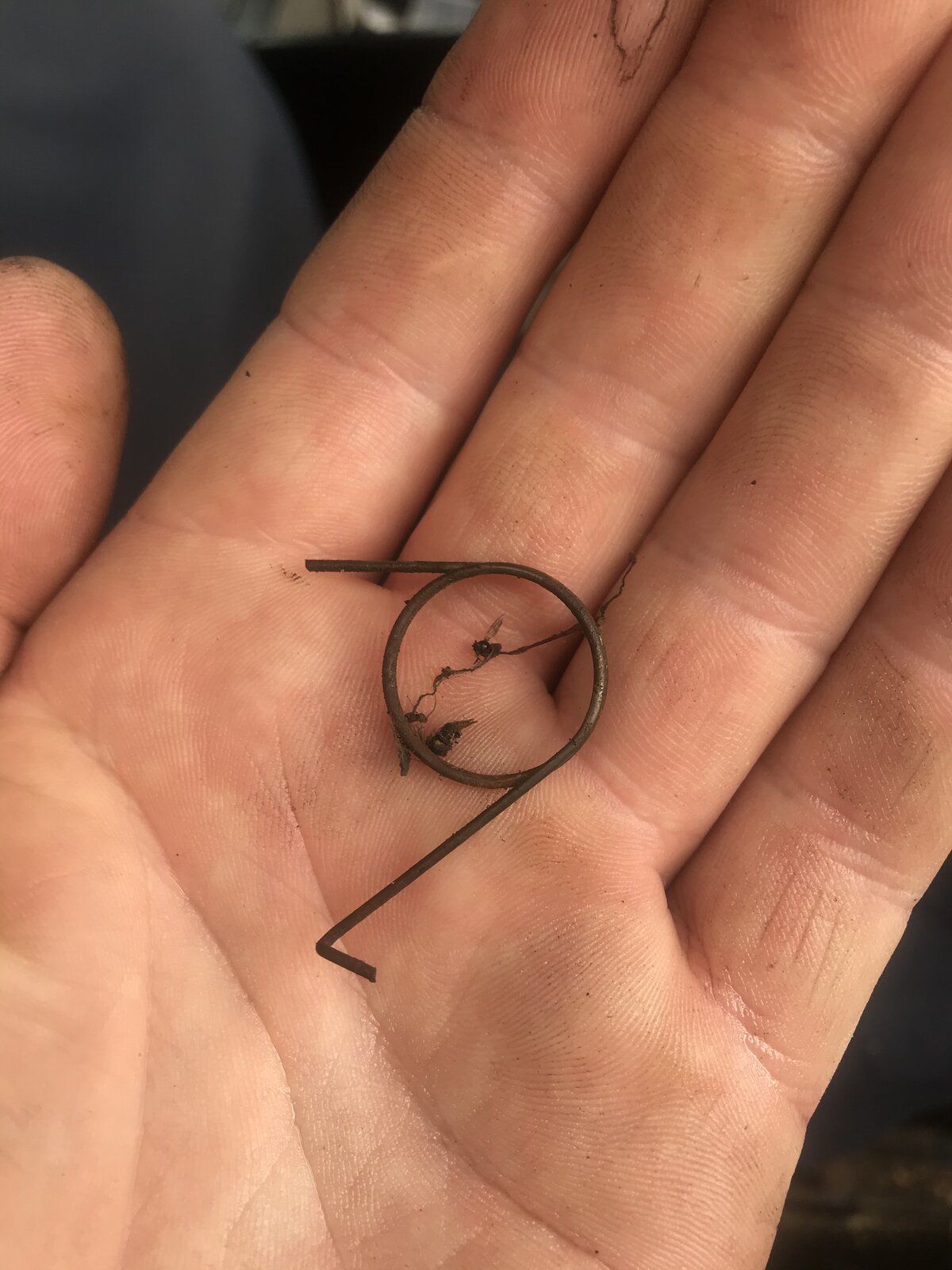

    I’ve got the solenoid on the list. Definitely feels like fuel draining down, I’ve read that a faulty lift pump can cause this, so I’m going to order a Delphi one and see what happens. I found this little spring on the manual pump lever on the pump, may be unrelated, but a bit unusual.

  11. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    6,007
    Likes Received:
    1,998
    Location:
    west wales coast
    It is there to return lever to the down position after you have pushed it up. Quite often lost or broken and you have to work lever both ways.

  12. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire
    Cheers, that makes sense. I’ll replace the unit anyway, if it doesn’t fix the issue at least I’ll have a spare.

  13. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    19,548
    Likes Received:
    19,126
    Location:
    Kent
    Lets hope lift pump fixes it, you will need a spare as all the current ones are pants!
    I gave up after the last one died, and went electric, Facet copy from ebay, ten quid iirc.

  14. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire
    Picked up a pump today. It’s a Delphi, but made in Turkey, so God knows how long it’ll last, it doesn’t look as good as the Delphi one that’s fitted.

    lynall likes this.
  15. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire
    Well, the original pump was goosed, no pumping action at all on the cam lever. New one fitted, I’ll see over the next couple of days if she’s cured.

  16. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,163
    Likes Received:
    4,580
    Location:
    Henley on Thames, Oxfordshire
    Well, day 2 and she fires up straight away in the morning. Looks like it was a duff lift pump allowing fuel to drain down.

    tottot, Hicap phill and mick 1986 like this.
