L322 2005 rear wiper plastic gear

backinblack · Oct 29, 2022

The plastic gear has stripped on my rear wiper motor and the the only one I can find online is £11 + £14pp, anyone know where I can get a reasonably priced one please? the only ones I can find have the wrong magnet fitting.

Cheers

Brian

Mark Piercy · Oct 30, 2022

https://www.powerfuluk.com maybe?

Karlos the jackal · Oct 30, 2022

have you got a part number ?
mabey gjs4x4 has one

backinblack · Oct 30, 2022

Mark Piercy said:
https://www.powerfuluk.com maybe?

Karlos the jackal said:
have you got a part number ?
mabey gjs4x4 has one

Good shout but no joy on their websites, although powerfuluk had some other interesting stuff.

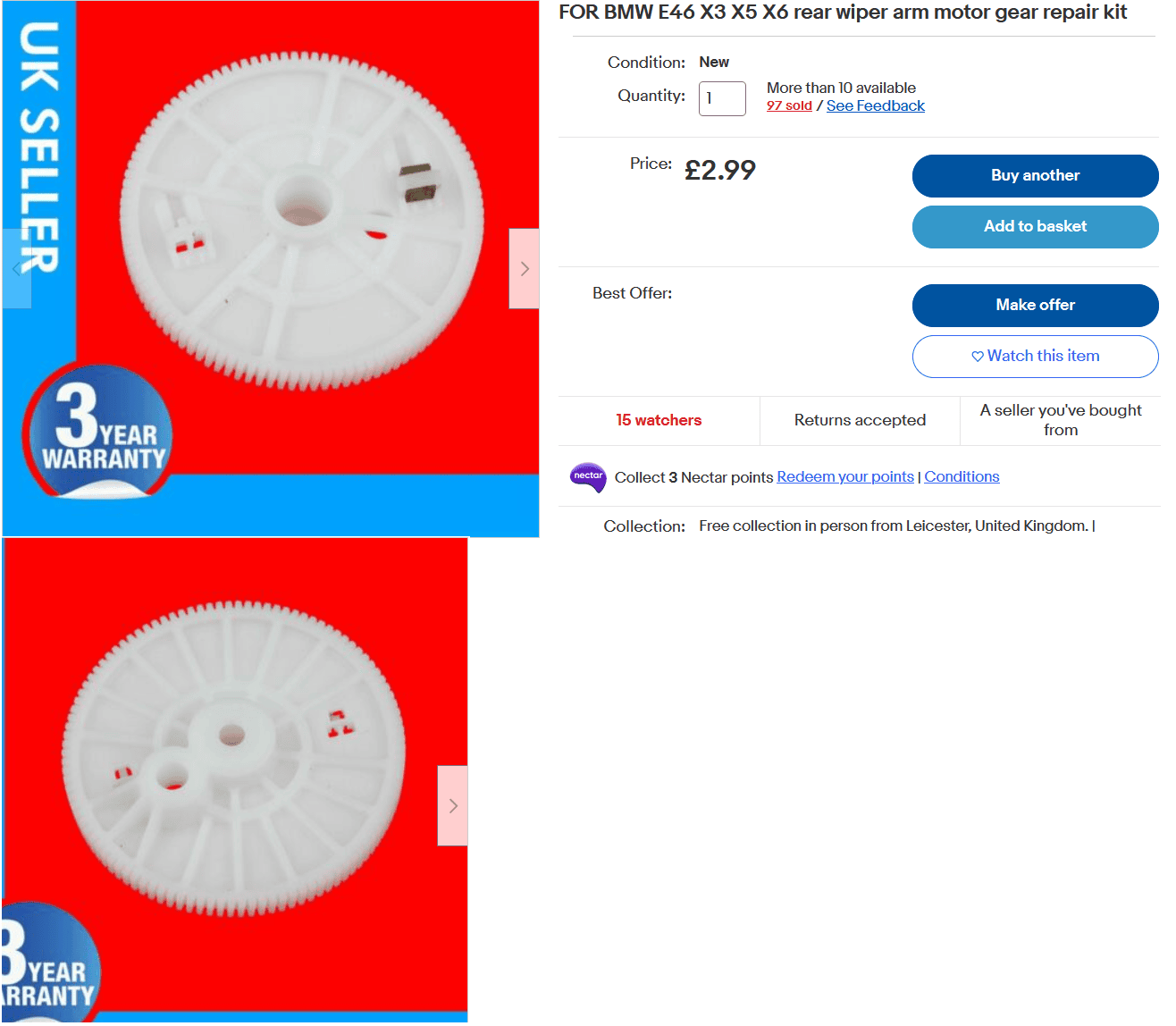

@stustrong mentioned bmw e46 compact is the same so I've ordered one of these, worth a punt at £2.99 inl p&p

Karlos the jackal · Oct 30, 2022

be good to know if they fit and work

backinblack · Oct 30, 2022

I'll update when I get it.

backinblack · Nov 3, 2022

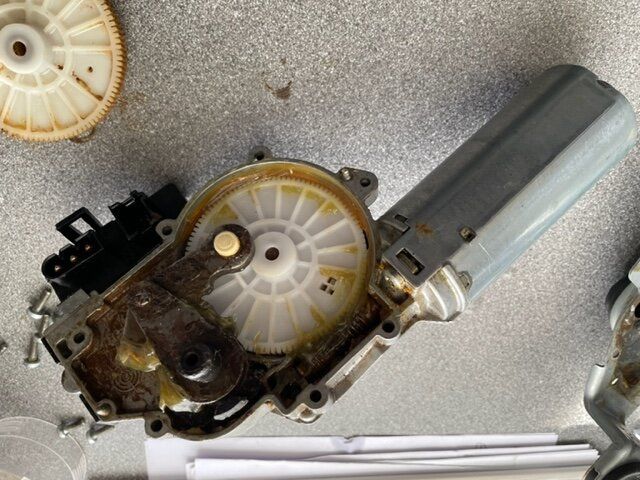

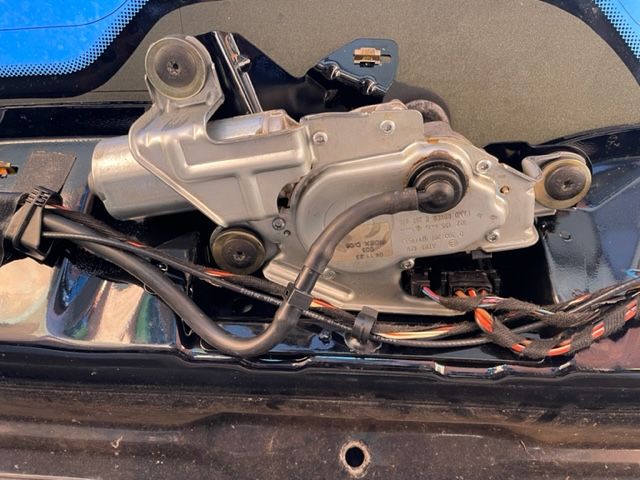

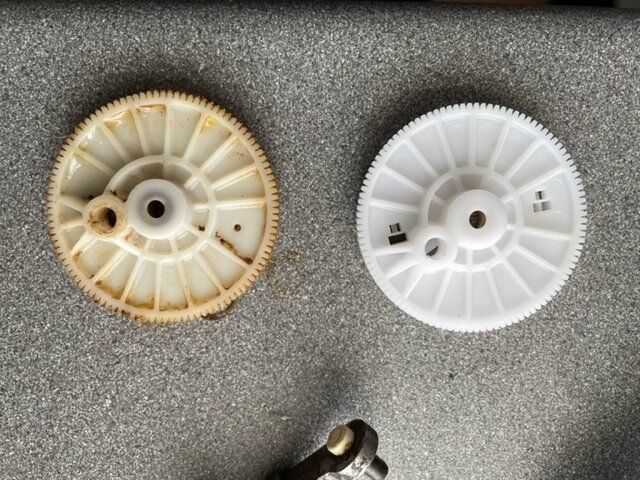

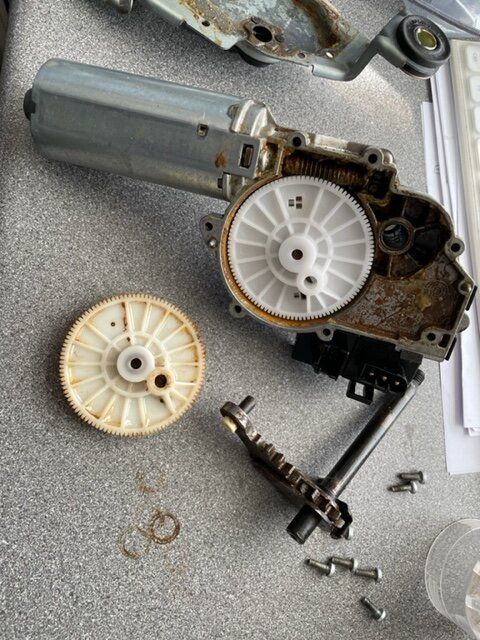

Quick update. Fit's perfectly and I now have a working rear wiper again.......for now anyway. Big thanks to @stustrong for the e46 compact tip.

Make sure it comes with the little magnet.

stuu · Nov 3, 2022

The part sharing is so helpful at times, and can be quite cost effective

backinblack · Nov 3, 2022

stustrong said:
The part sharing is so helpful at times, and can be quite cost effective

Much cheaper than the £25 LR specific one I found.

Alex Z · May 5, 2023

is there any "way" of installing the gear in a certain position after re-assembling it ? I've took mine apart, regressed it, and now it won't work anymore. I also tried trying the motor without the "linkage arm" installed, and it works for a few seconds, then stops. I also feel the motor is getting really really hot . Does the motor have a constant load on it for some reason ? Any thoughts ?

backinblack · May 5, 2023

The motor spindle runs in a bush not a bearing so if when the spindle rusts it starts to bind in the bush. ooh er missus
The wiper ECU will sense the increased load and turn the motor off until the ignition is cycled off and on, ask me how I know

Rubberknees · May 5, 2023

backinblack said:
The motor spindle runs in a bush not a bearing so if when the spindle rusts it starts to bind in the bush. ooh er missus
The wiper ECU will sense the increased load and turn the motor off until the ignition is cycled off and on, ask me how I know

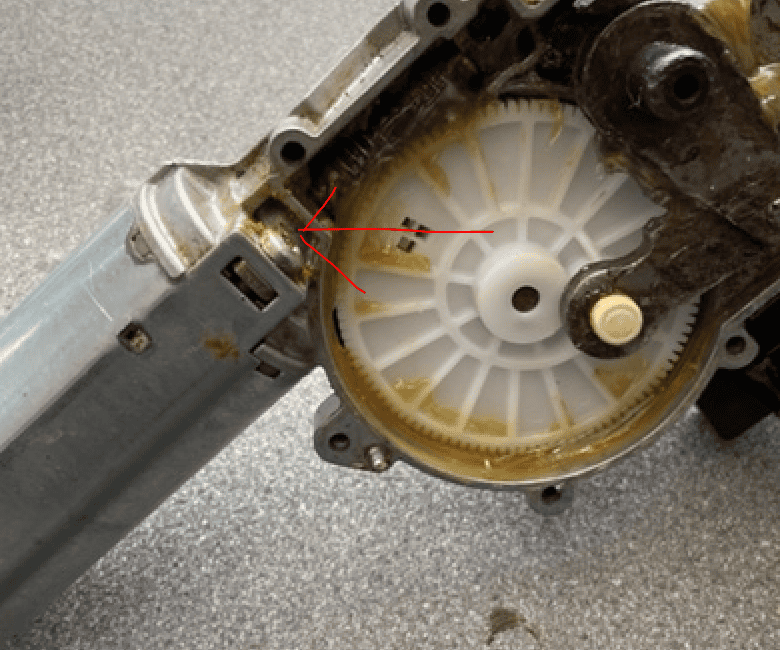

View attachment 287701

Could try shaving the bush, know what I mean wink wink

nevillen · May 5, 2023

There are SO many interchangeable BMW- RR parts, they are invariably much cheaper as was the case with the Jacking points I purchased. £23 each and £28 postage for RR or £14 each of Amazon with free postage

backinblack · May 5, 2023

Rubberknees said:
Could try shaving the bush, know what I mean wink wink

I gave it a good old rubbing with sand paper

Rubberknees · May 6, 2023

backinblack said:
I gave it a good old rubbing with sand paper

Oooh ahh sandpaper. Bit sore on the tender parts there don't ya know. Nice bit of lube needed after

backinblack · May 6, 2023

Rubberknees said:
Oooh ahh sandpaper. Bit sore on the tender parts there don't ya know. Nice bit of lube needed after

Goes without saying

Rubberknees · May 6, 2023

backinblack said:
Goes without saying
