2002 RR 3.0 TD6 fuel pressure

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

daz8694

Member
Posts
23
Location
Newcastle upon Tyne
Good evening all, as usual I bow in your presence and hope to bask in the warm glow of your knowledge (and hopefully save my wallet).
I have a 2002 Range Rover. Bought as a non runner the previous owner had tried to repair a rocker gasket leak and couldn’t get the thing to start again. I have rebuilt it properly and got it started pretty much straight away. It ran a bit ropey so I carried out a leak off test and found 2 injectors allowing a large leak by. I replaced them which has solved the lumpy idle however when accelerating through 3000rpm the dreaded “fuel injection fault” pops up, she drops into limp mode and that’s that.

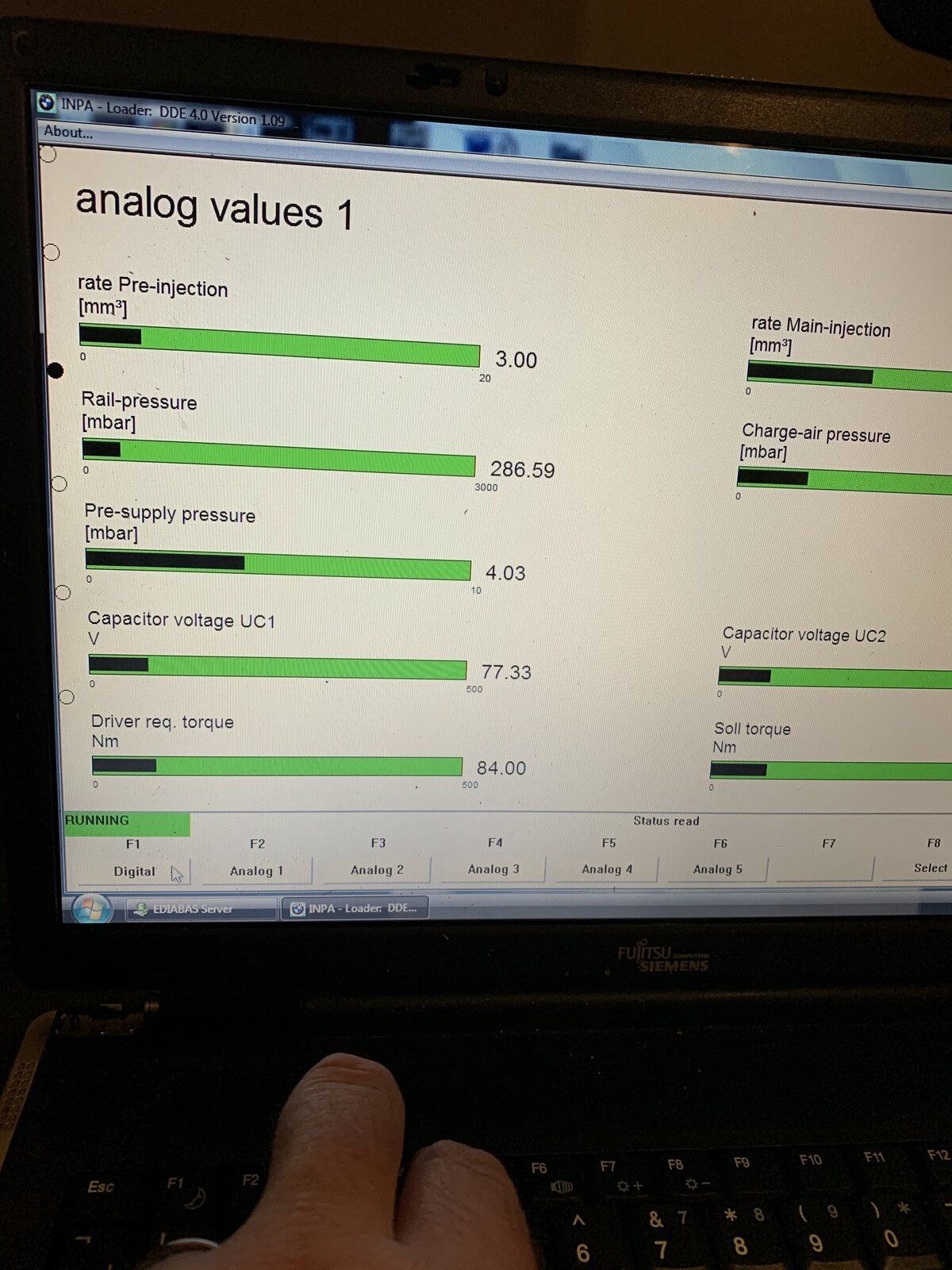

I have plugged it into INPA and found the following values at tickover. Do these look ok?


Attachments

  • 7183F5D1-4C61-4797-9403-EB4E48F4A929.jpeg
    280 KB · Views: 218
@daz8694 I dont know the INPA so sorry cant help. But is there something that shows up if you log it going into fault mode (not sure if you can realtime log)

@backinblack I seem to remember may be familiar with the INPA

Good luck

J
