2002 110 Defender 2.5TD5 - cracked cylinder head?

Discussion in 'Defender 90 / 110 / 130' started by V8Eddie, Jan 2, 2018.

< Previous Thread | Next Thread >
  1. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Sorry to upset you Oldseadog! But he is definitely a HE - he is big, brutish, brawny - well perhaps I could call him a HE/SHE:D
    But saying that you are right as IT is a pain in the nether regions at the moment (albeit me being of the female persuasion!)
    I always ask Dirty Dog to bring me home safely and he did today with a few coughs and splutters on the way!:)

    Oldseadog and Shippers like this.
  2. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Wine and curry went down very well! Humour now back up to par!:)

  3. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Hi again Shippers,
    Over 2017 have been flinging money at the Defender and we could probably have bought a good 2nd hand car! I have never owned a brand new car; always preferred the classics and my RRC V8 3.9 1990 (named Eddie after Absolutely Fabulous) is one of my loves. She has problems too but has been sitting in a garage - feeling very unloved at the moment.

    Shippers likes this.
  4. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Hi Lightning,
    I do not know but will put on the check list for the mechanic. Thanks for the input.

  5. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    8,810
    Likes Received:
    555
    Location:
    Tynemouth
    Not really!
    Look after her well enough and she is quite an inexpensive long-term 'other half'!! :D:D
    Mind you, if you have to pay someone else to give her a good servicing on a regular basis, then you're asking for trouble :eek::eek:;);)

    V8Eddie and Shippers like this.
  6. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Hi Guys, Have just been listing all the comments on this thread and basically the below is the list I shall give to Ian the Mechanic on Monday to check:

    1. Check injector seals and washers
    2. Check injector harness
    3. Check diesel return valve in Fuel filter
    4. Check fuel filter and fuel filter housing

    Is there anything else that needs adding?
    Cheers.

  7. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France


    Just watched the above video on You Tube and it helped me understand the fuel system a little bit more.

    A couple of things I noted in watching was:
    1. check fuel hoses
    2. check pressure regulator - as rough running when engine idle - could be a cause.
    3. Fuel coolant - I think one of you mentioned the coolant leaking into the fuel.

  8. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    8,810
    Likes Received:
    555
    Location:
    Tynemouth
    Your two lists should make a good start on the dignoses.
    However, there should be no rational way that coolant can get into and contaminate the fuel.
    You have already checked and found no trace of yellow gunge in either the sump oil or traces in the coolant, so they can probably be discounted..
    Ask him to do a coolant system pressure test, which will let you know if there is any form of leak on your cooling system (it should hold steady at 21psi (1.4Bar) on a td5)

    V8Eddie likes this.
  9. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Thank you so much Oldseadog! Will fill you in when I have heard back from Ian next week sometime. :)

  10. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    15,736
    Likes Received:
    6,662
    Location:
    Oxfordshireness
    The only thing I see missing from your list that caused mine to stop every 4 miles when it was hot was the crank sensor.

    But that should show up on diagnostics as an alarm .

    Cheers

    Disco1BFG likes this.
  11. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Thanks Neilly, Is it just referred to as crank sensor?

  12. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    15,736
    Likes Received:
    6,662
    Location:
    Oxfordshireness
    Crank Position Sensor.

    But as I said, if he has good diagnostics, I would expect to see an alarm code showing a problem with it.

    Cheers

    Disco1BFG and V8Eddie like this.
  13. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Thanks Neilly, I think he does but have noted. Cheers.

  14. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Well after a long time - injector seals and new head gasket with metal dowels replaced but still billowing white smoke.
    Next step is new cylinder head unless you guys have any more ideas? How much more money do I have to throw at it - aaaaaagh!
    Mechanic mentioned that we could potentially replace cylinder head and it has a cracked block! God this makes me feel depressed!

  15. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    2,136
    Likes Received:
    327
    Location:
    High Peak
    Mine billowed white smoke under power, when it was overfuelling after a bad remap.
    I thought the head had gone, but it was just unburnt diesel being blown out of the exhaust in a smoke screen. It would obscure the vehicle behind!
    I am sure it is not that with yours, but it was just a thought.

    V8Eddie likes this.
  16. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Hi all and especially to the members that replied on this thread, big thank you for all the advice.

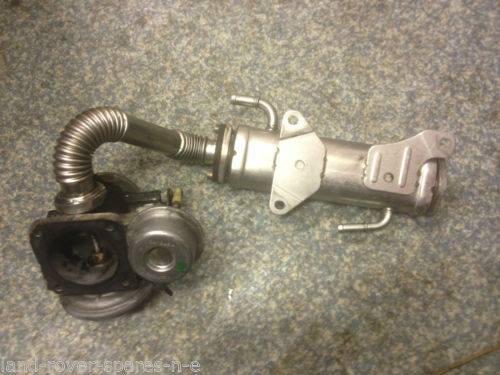

    The mechanic has found the problem - not a cracked cylinder head but a faulty Heat exchanger - whereby the coolant and the exhaust gases were mixing in the exhaust and creating a rather lot of white smoke!
    Might be worth anyone checking this before you go looking for a cracked cylinder head - much cheaper!

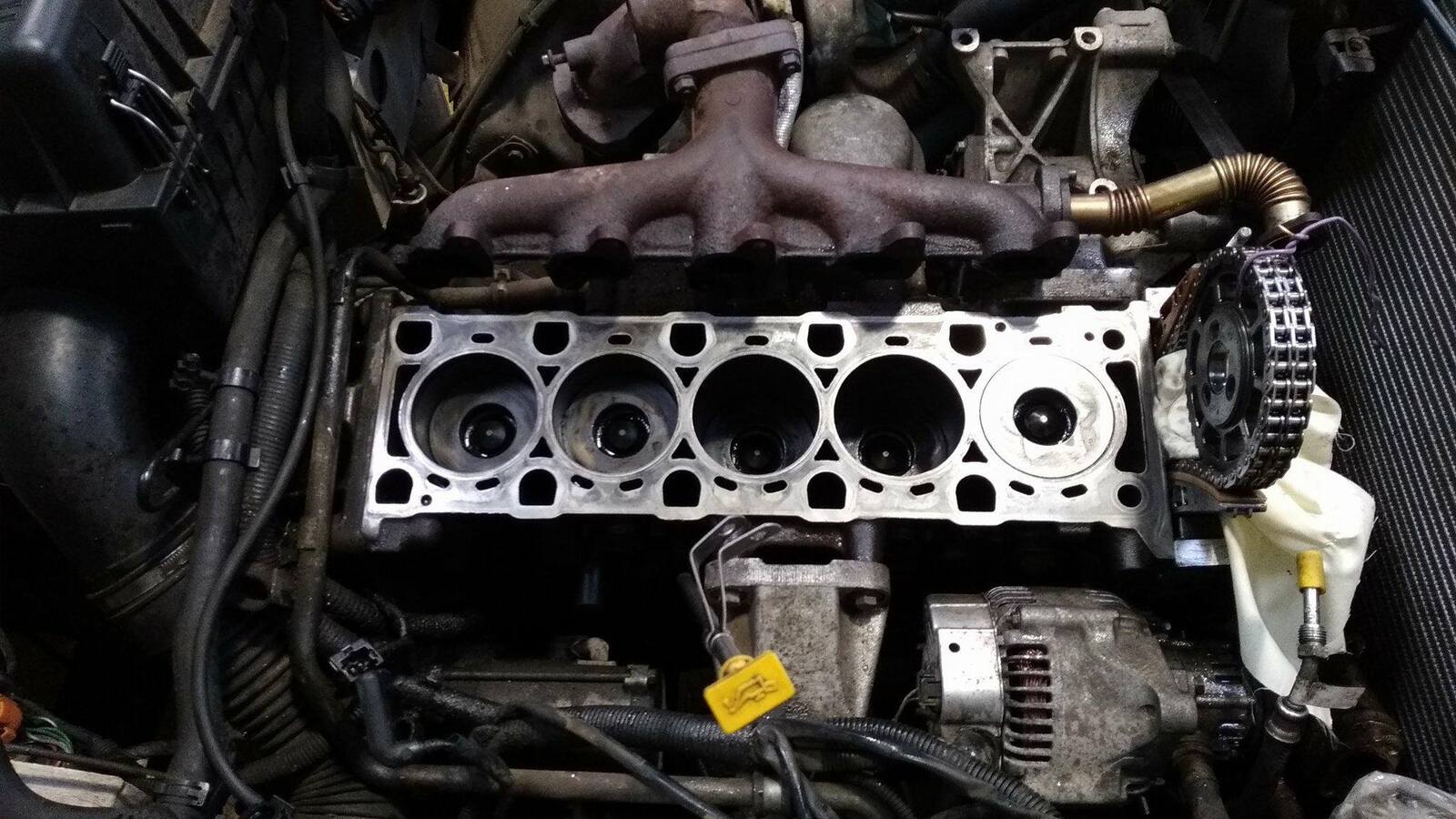

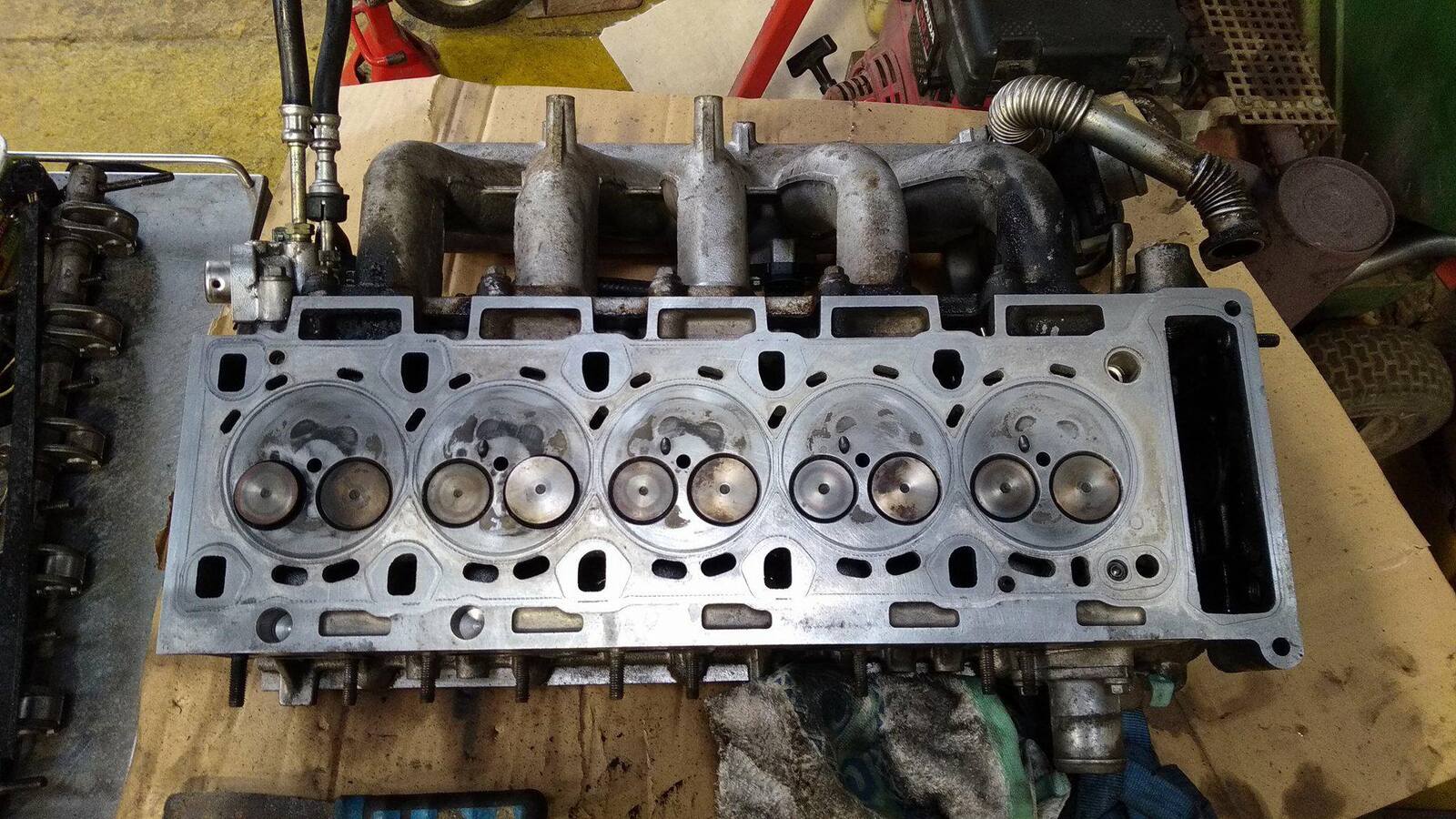

    So happy bunny now (fingers crossed!). Here are a couple of pics of the Heat exchanger and the head off and nicely cleaned.
    Heat exchanger.jpg Head1.jpg head2.jpg

    Scooby22 likes this.
  17. Scooby22

    Scooby22 Well-Known Member

    Joined:
    Aug 11, 2017
    Posts:
    524
    Likes Received:
    129
    Location:
    County Durham
    Thanks for the update, this info will be very handy in future.

    V8Eddie likes this.
  18. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Hi Scooby22, Well we have been scratching our heads for so long and just about to order a new head but at least my mechanic continued as he was not convinced it was a cracked! OK I have had to pay his labour but at least I have saved the cost of the head. Plus for all you landy peeps it may be of use in your check list.
    Have a good day!

    Scooby22 likes this.
  19. V8Eddie

    V8Eddie Member

    Joined:
    Aug 13, 2008
    Posts:
    73
    Likes Received:
    12
    Location:
    Brittany, France
    Hi Lightning, Thanks for the advice but as you can see it was a faulty Heat exchanger - much cheaper! Took the mechanic a long time to find it though - most perplexing and frustrating!.

  20. Wimblowdriver

    Wimblowdriver Well-Known Member

    Joined:
    Aug 3, 2014
    Posts:
    671
    Likes Received:
    270
    Location:
    uk
    I like a happy ending, good on yer for sticking with it :)

    V8Eddie likes this.
