2.5 NAD question

landy1963 · Oct 3, 2009

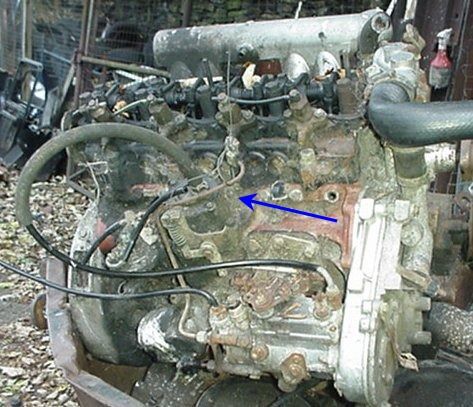

when I bought my Series IIA with a 12J 2.5 NAD, a pump was not connected to any thing on the block. (see photo, arrow towards pump)
While looking for an answer of what the pump does, I came across the attached photo. What is the purpose of this pump, can I drive while it's disconnected or do I have to reconnect it and if Yes how to.
I could not find this in the manual of the defender.

Thanks Bas

discomania · Oct 3, 2009

It is a caccum pump for the brake servo. A piece of pipe goes from there to the terminal on the side of the servo unit (big black round thing right in front of drivers position).

hughesy · Oct 3, 2009

Aye it's the vacuum pump for the brakes. If you've got non servo assisted brakes it's redundant.

landy1963 · Oct 5, 2009

Thanks!

CharlesY · Oct 5, 2009

But best disable it because if you leave the big blck hose open the poor pump will knock its pan in trying to make Britain into a vacuum.#

Stuff a suitable bolt in the end of the hose and tie out of the way.

You could always fit a vacuum servo to the brakes, and make use of the thing..

CharlesY
