1997 Wolf 24v Alternator Alternatives.
- Thread starter Wolf Pack
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...

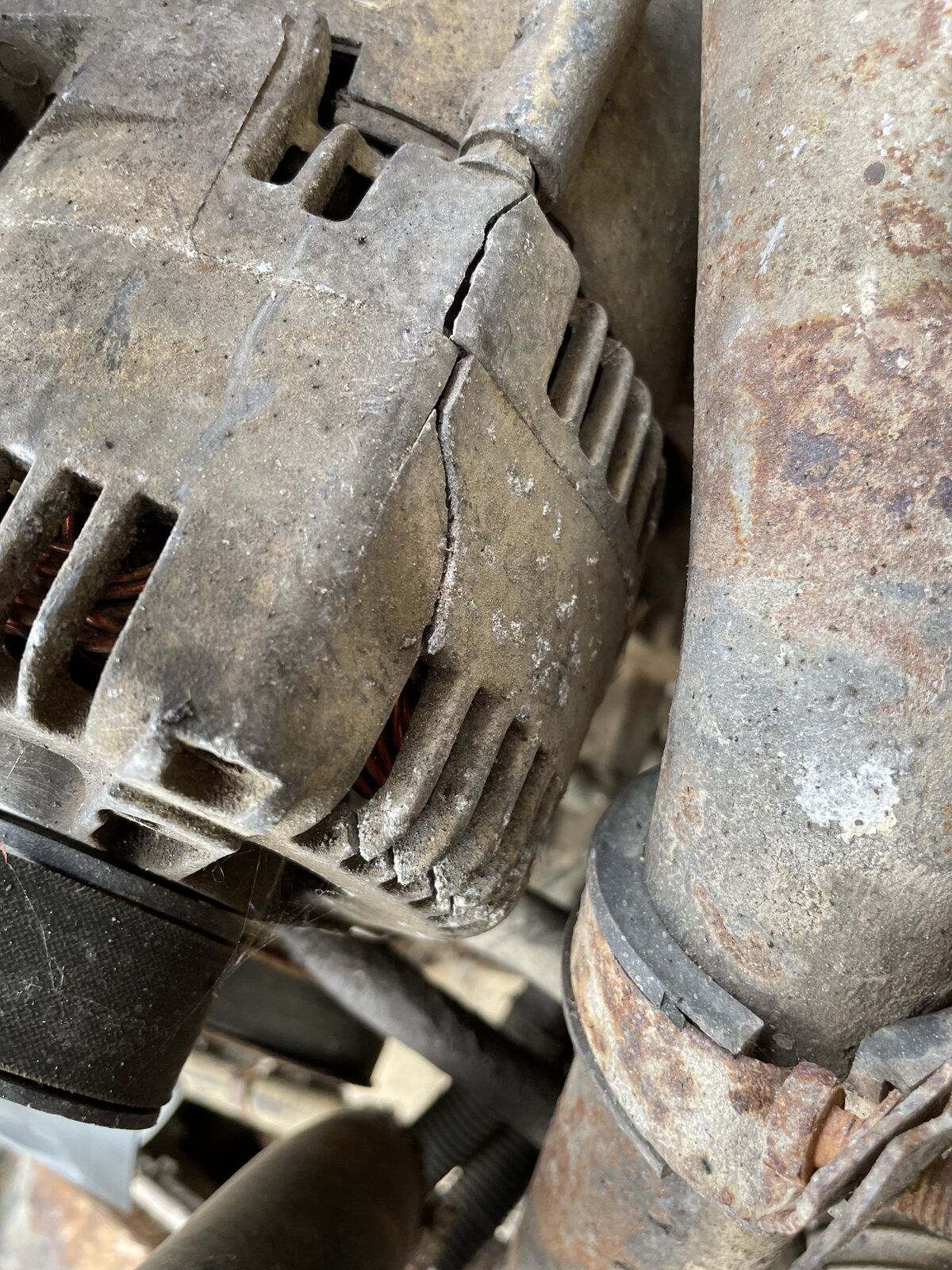

Buy a replacement 24v unit or strip down existing and have the old casing welded up. Alternators usually split at/through the mounting thread holes where they've been over tightened and no washers used.
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
very expensive new john richards £750 but then its has the manufactured water proof cover and rear fan but at the end of the day it's a modified A1271 50/24volt MANETI MARELLI Alternator rated at 50 amps where the fan has been repositioned on the rear so maybe the parts are interchangeable using £79 https://www.ebay.co.uk/itm/37263882...bfe1cd3a7339b815&pid=101195&rk=4&rkt=12&sd%as a donor
Wolf Pack
Active Member
- Posts
- 321
- Location
- Portsmouth
Thanks mystery.
That eBay listing says that it is rated at 100 amps.
Is that not too much for the Wolf's 50 amp system?
That eBay listing says that it is rated at 100 amps.
Is that not too much for the Wolf's 50 amp system?
Wolf Pack
Active Member
- Posts
- 321
- Location
- Portsmouth
Sorry mystery, did you mean just the casing?
flat
Well-Known Member
- Posts
- 9,075
- Location
- Far away from you!!
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
the alternator will only output what is demanded or as v8250 suggested strip of the case and get it tig welded
- Posts
- 33,951
- Location
- North Shropshire
Surely brazing would be better, less heat stress on the frame
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...
Braze would would work but a good tig welder can weld the casing - only potential issue is that alternator casings are not a very dense alloy...so may be a braze would be better.
I'd second replacing the case, or you may be lucky and TIG weld the crack .... To braze it you'll need Oxy Acetylene or a very good propane torch - plenty of guides on the web ... The thing that would make me nervous of welding or brazing it, is that the precise alloy is unknown ....
You might be able to buy the case parts from mid ulster rotating electrics:-
https://www.rotatingelectrics.co.uk/
No affiliation - just a very satisfied customer
100 amps at 12 V is 1200 watts - 50 A at 24 V is ..... 1200 watts ...
+1
You might be able to buy the case parts from mid ulster rotating electrics:-
https://www.rotatingelectrics.co.uk/
No affiliation - just a very satisfied customer
100 amps at 12 V is 1200 watts - 50 A at 24 V is ..... 1200 watts ...
+1
Wolf Pack
Active Member
- Posts
- 321
- Location
- Portsmouth
The problem with any heat treatment is that there is zero guarantee that the armature and bearings will still align afterwards.
Wolf Pack
Active Member
- Posts
- 321
- Location
- Portsmouth
Anyway, I read someone else's post on the dreaded FB and that lead me to this one, which even has the correct pulley and just needs the rear cap from the original transposing
£165!
https://www.ebay.co.uk/itm/115240015615?ViewItem=&item=115240015615
£165!
https://www.ebay.co.uk/itm/115240015615?ViewItem=&item=115240015615
