1989 Land Rover 90 - LED light conversion problem

200tdi Land Rover 90

Active Member

Posts

78

Location

Cheshire

• Jul 4, 2021

• #1

Hello everyone!

I’m thinking of changing all my exterior lights on my 1989 Land Rover 90 200tdi to LED’s. However, I can’t find where my relay is for the indicator lights. I have seen a diagram which says it’s beneath the fuses, but this is not the case on mine. Hoping someone who’s had a similar problem could kindly point me in the right direction

many thanks!



H

Hicap phill

Well-Known Member

Posts

16,329

Location

Wiltshire

• Jul 4, 2021

• #2

That’s not a standard fuse box.
But look in that area for a large relay.
(Take some more photos if unsure)



200tdi Land Rover 90

Active Member

Posts

78

Location

Cheshire

• Jul 4, 2021

• #3

Hicap phill said:

That’s not a standard fuse box.
But look in that area for a large relay.
(Take some more photos if unsure)

Click to expand...

Ahh that’s interesting to know! Thanks Phill.
The engine is out of a discovery 200tdi so it’s all been changed around a bit. I’ll have another look



200tdi Land Rover 90

Active Member

Posts

78

Location

Cheshire

• Jul 4, 2021

• #4

Hicap phill said:

That’s not a standard fuse box.
But look in that area for a large relay.
(Take some more photos if unsure)

Click to expand...



200tdi Land Rover 90

Active Member

Posts

78

Location

Cheshire

• Jul 4, 2021

• #5

Hi Phill,

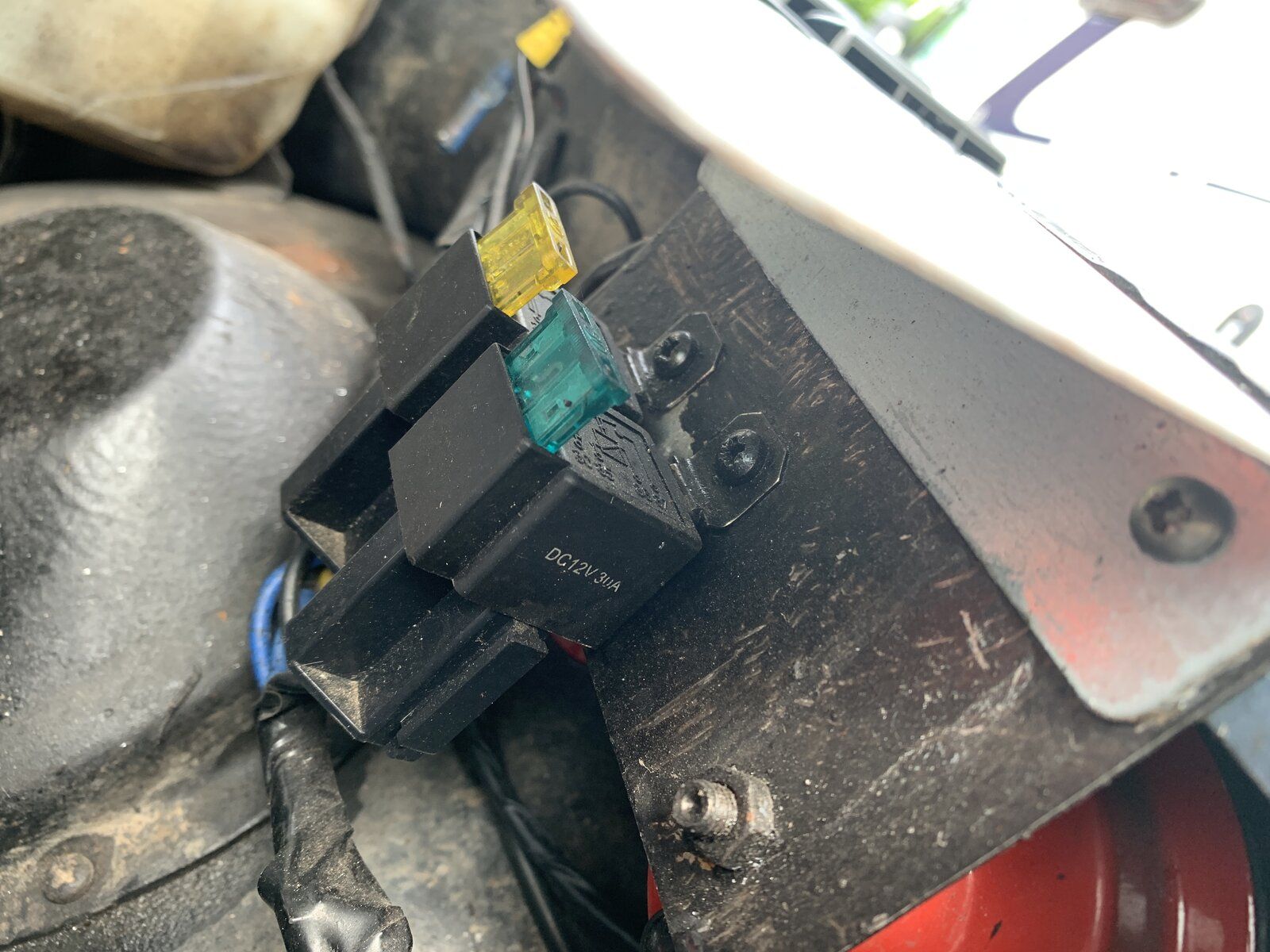

I had a look under the bonnet and found these which look as if they may be the ones I’m looking for?



200tdi Land Rover 90

Active Member

Posts

78

Location

Cheshire

• Jul 4, 2021

• #6

200tdi Land Rover 90 said:

View attachment 241936
Hi Phill,

I had a look under the bonnet and found these which look as if they may be the ones I’m looking for?

Click to expand...

Actually I don’t think they’re for the lights.



H

Hicap phill

Well-Known Member

Posts

16,329

Location

Wiltshire

• Jul 4, 2021

• #7

The relay should be near the fuse board.
Colours of the wires look like a Normal loom. Is there anything tucked behind the metal where the fuses carries are screwed to?

have a look under the passenger seat next to the battery for any thing electrical
If it’s not there it may be behind the clocks. There is not much room to put these things

as this is a rebuild you will have fun finding out what’s what & where it lives



miktdish

Guns n Chainsaws

Full Member

Posts

4,607

Location

Near Lanark, South of Glasgow. Scotland

• Jul 4, 2021

• #8

Unfortunately it looks like you have been 'rewired'.
The frame that is below your fuses in the first picture should hold the relays you are searching for (and others).

The two you have found in the engine bay - what is the value of the fuses in them (they probably arent the ones you want either).
I would suggest you put on the hazards and listen for the relay 'ticking'.

Anyway, why do you want to change the relay for the LED lights ?



M

MJE

Member

Posts

45

Location

Crawley

• Jul 4, 2021

• #9

Turn an indicator on. Listen for the clicking. Follow the sound. If you find more than one relay in the vicinity, put a finger [or more, if you wish] on it and feel for the clicking.
