1986-2006 Ninety/90 Rear Anti Roll Bar

v8250 · Sep 22, 2021

Dear All,

I'm wanting to install a rear ARB for my 1987 Ninety. Have tracked down correct components and weld on YRM mounting brackets. Could I ask you kind boys and girls if you could take/post some pics for me, plus the following dimensions

lh/rh axle mounting points [inner and outer bracket edges to rear axle end]
lh/rh ARB clamp points

Thank you,
v8250

Britcyclerider · Sep 23, 2021

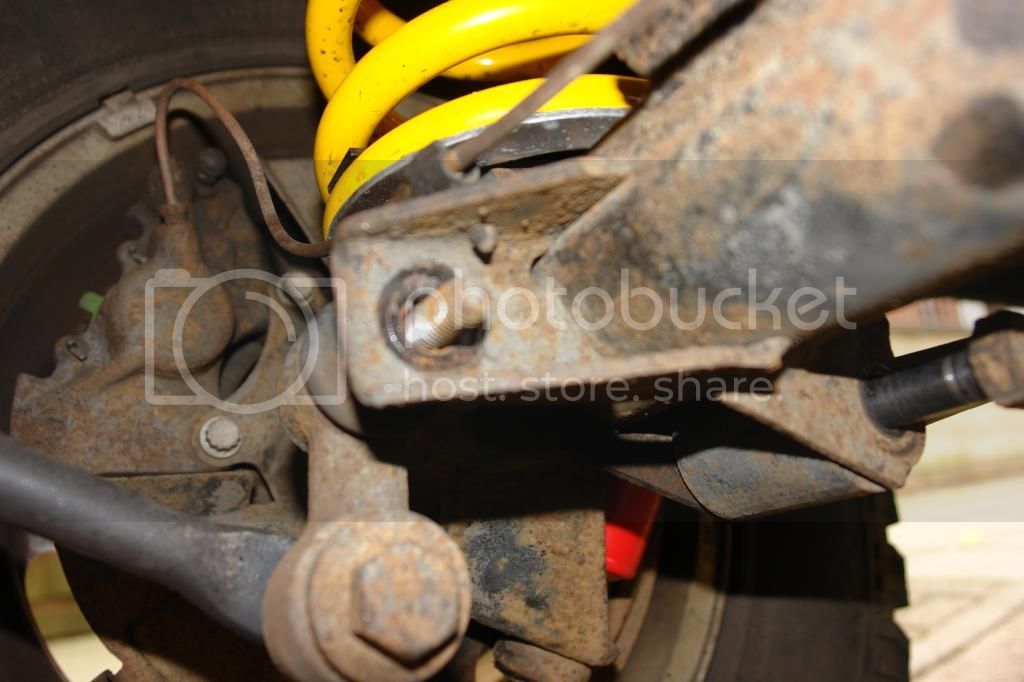

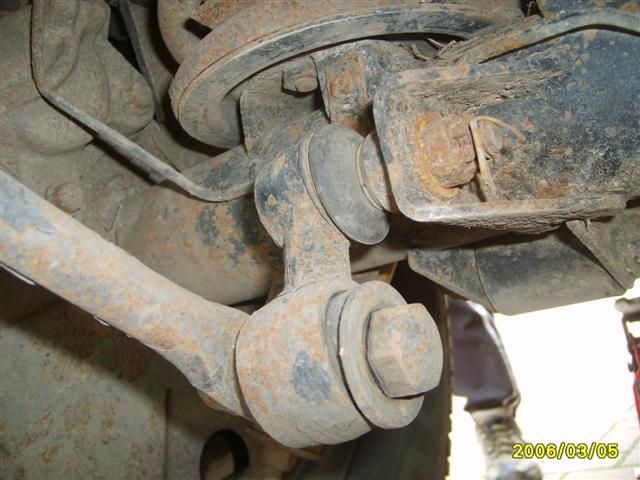

These may help.....found on the web. Do you have a front fitted already? I would be interested to know how you get on.

Britcyclerider · Sep 23, 2021

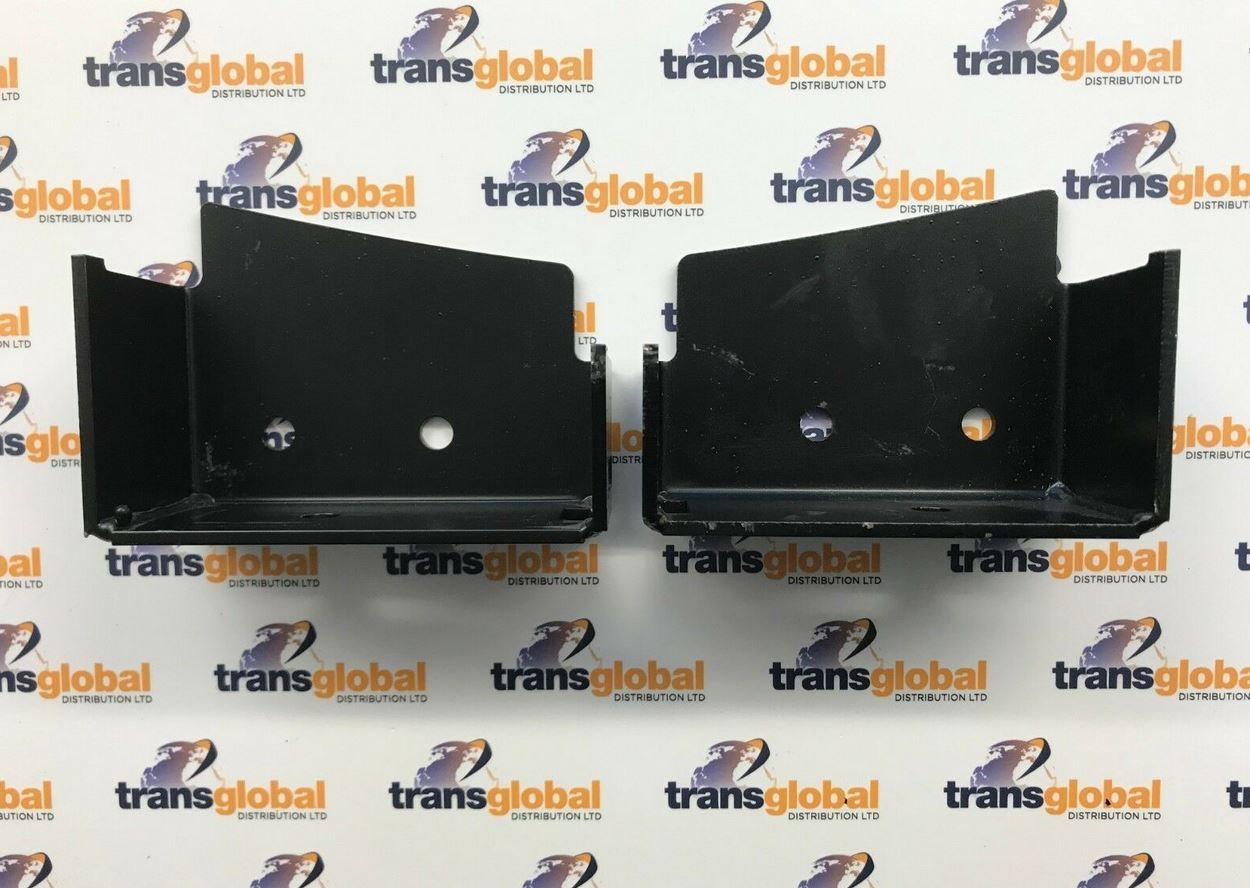

Rear bracket replaces the bracket fitted to the tow bar anchor brackets, but I reckon you could add a plate to what is already fitted.
