Wildefalcon
Well-Known Member
Oh, photos of the"stuff". I don't think there should be any. Everything should be immaculate. I use brake cleaner and an air line to clean everything after washing in kero.
Wildefalcon
Well-Known Member
The knock was there when the rocker assembly was removed, right?
steve2286w
Well-Known Member
if anything should be anti friction like teflon but not seen any online. (will have a google) i can see EW on them whats on other side
steve2286w
Well-Known Member
Just reading back through the posts , when it was running did you try it with fan belt removed to isolate any bearing probs on water pump / alternator , loose pulley wheels
steve2286w
Well-Known Member
result
www.landyzone.co.uk
Tappet assemblies?
I'm rebuilding my Series IIA's 2.25 petrol engine - rebored to +0.020", polished crank with new std bearings etc. I'm fitting a new cam but can't decide what to do about the tappets. The old parts are in good shape with little wear. Should the brass slides have a grey coating on the concave...
www.landyzone.co.uk
ThomasLRNL
Member
10 thouā¦? i took .25 from the manualā¦

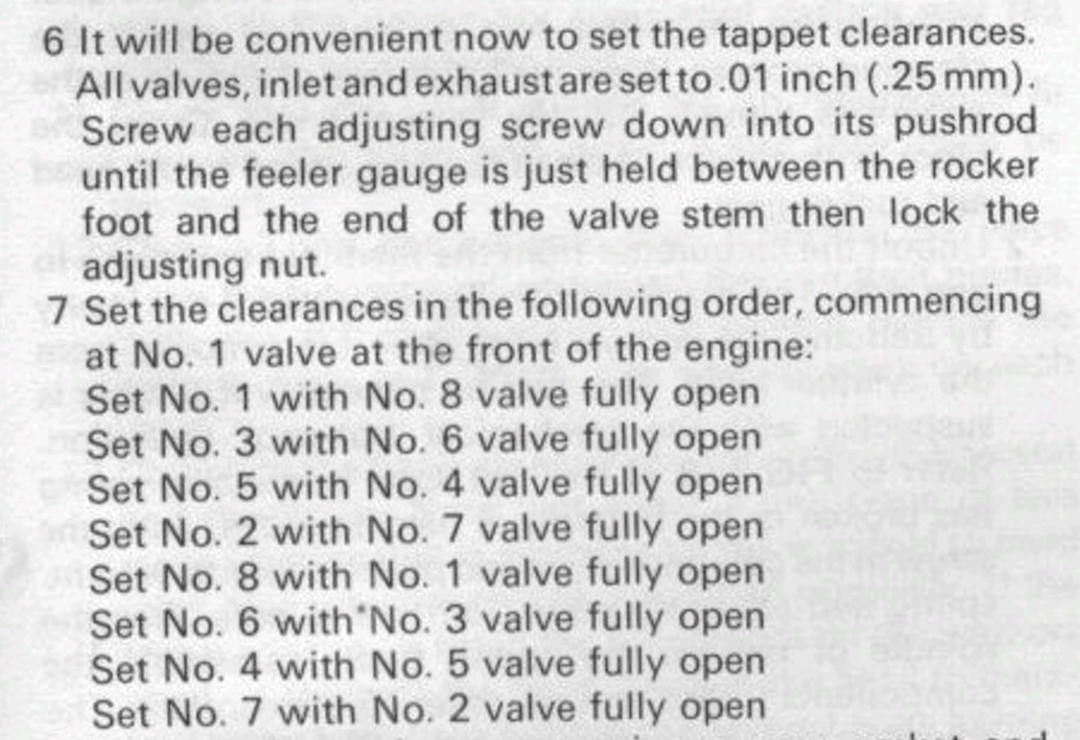

'Tappet clearance 010" warm or cold'
steve2286w
Well-Known Member
almost Same one imperial one metric , nigh enough for pitwork as the saying goes
ThomasLRNL
Member

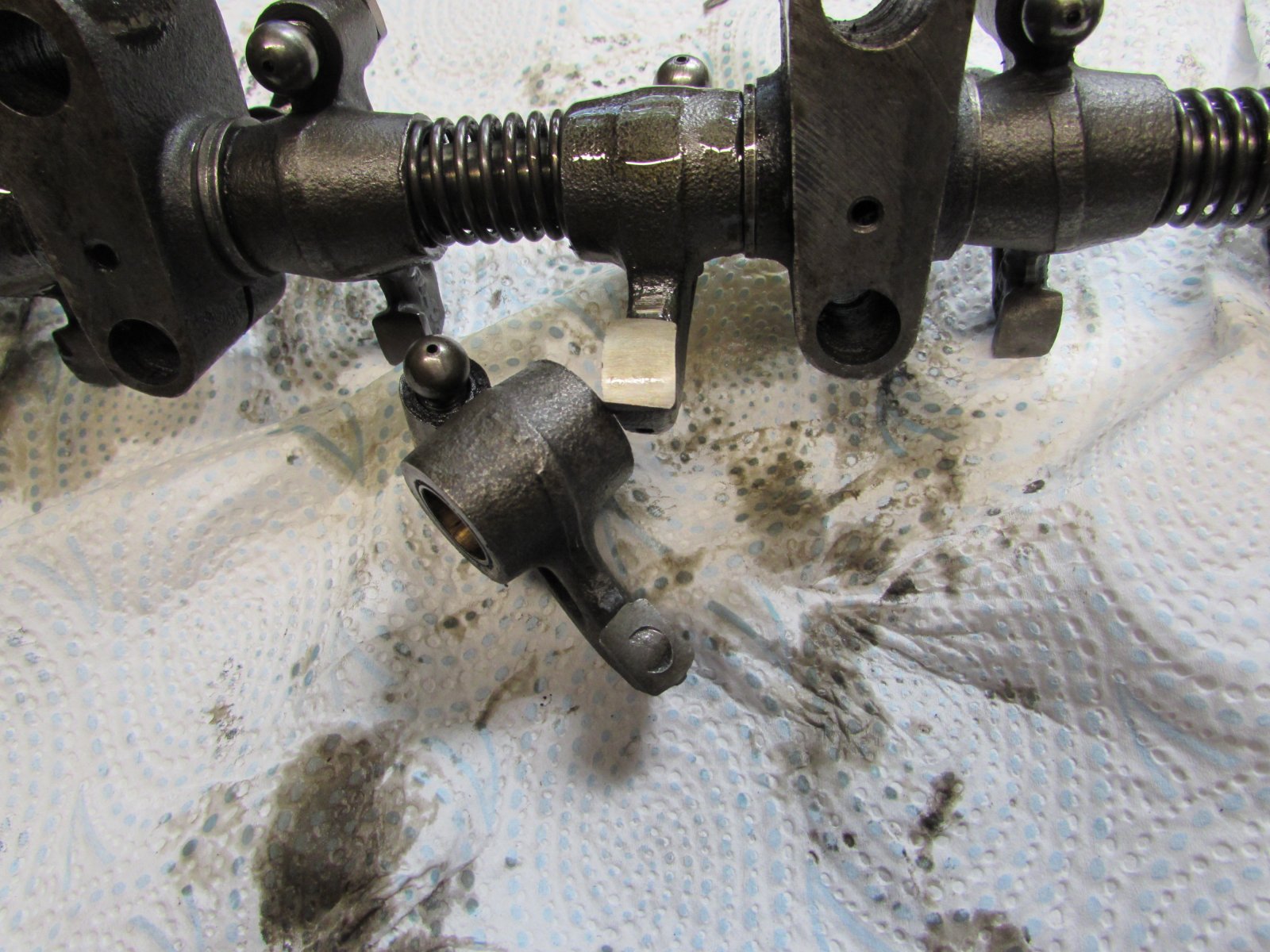

i have taken apart the whole head and lapped the valves. i know the springs aint broken i inspected those. thanks for the rocker reference picture! will compare tomorrow.
ThomasLRNL
Member
ok i will double check the liner tomorrow.
Yes, but only when i held down the pushrods and spun it with a drill. where the speed became so great that i couldnt quite hold the whole assembly tight anymore.
yes i have and it did not amount to anything.Just reading back through the posts , when it was running did you try it with fan belt removed to isolate any bearing probs on water pump / alternator , loose pulley wheels
thanks for the read. seems bearing surfaced tappets do exist. though ālaterā is a bit superficial in the thread. this is a 2a engine.result
Tappet assemblies?
I'm rebuilding my Series IIA's 2.25 petrol engine - rebored to +0.020", polished crank with new std bearings etc. I'm fitting a new cam but can't decide what to do about the tappets. The old parts are in good shape with little wear. Should the brass slides have a grey coating on the concave...
i put it at 25mm. so 0.10 inch. i just read the pic. so i DID put the lash correctly. again, maybe one just needed an extra turnā¦.
so plan for tomorrow then will be, check the top of the cam lobes. if good, reinstall the rocker assembly and put it on 20 mills. any ideas to replicate the engine running without having to run it? probably just put the flywheel on and run it with the starter no?
i think we can rule it likely that i have one tappet which is ticking. the speed of it is so slow that its likely only one tappet.
