Freelander 1 td4 cooling fan operation temp

Discussion in 'Land Rover Freelander' started by Ian jones, Nov 20, 2015.

< Previous Thread | Next Thread >
  1. Ian jones

    Ian jones Well-Known Member

    Joined:
    May 24, 2010
    Posts:
    1,104
    Likes Received:
    9
    Location:
    north east england
    Hi , any one know at what temp the cooling fan should kick in on the M47 td4 , stat opens at 88ish but cant find the fan operation temp , thanks

  2. hd3

    hd3 Well-Known Member

    Joined:
    Feb 5, 2012
    Posts:
    2,451
    Likes Received:
    416
    Location:
    Bradford u.k.

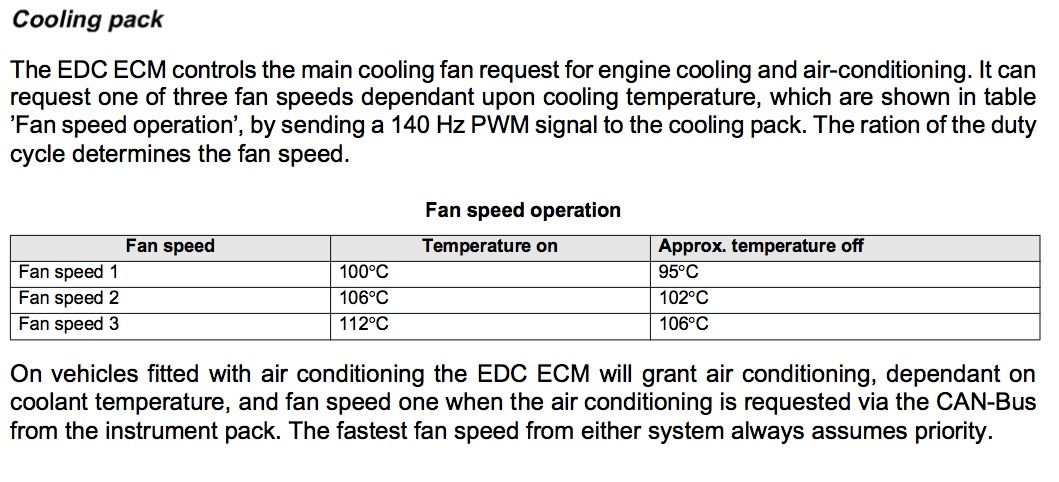

    see pic :

    if pic can't be viewed .. it's :

    fan speed 1 .. coolant temp. on 100c .. aprox. temp. off 95c
    fan speed 2 .. coolant temp. on 106c .. aprox. temp. off 102c
    fan speed 3 .. coolant temp. on 112c .. aprox. temp. off 106c

    .. On vehicles fitted with air conditioning the EDC ECM will grant air conditioning, dependant on
    coolant temperature, and fan speed 1 when air conditioning is requested via the CAN-Bus
    from the instrument pack. The fastest fan speed from either system always assumes priority
    ( above from the M47r diesel pdf doc. )

    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    Last edited: Nov 20, 2015
    sejo_tt and Ian jones like this.
  3. Ian jones

    Ian jones Well-Known Member

    Joined:
    May 24, 2010
    Posts:
    1,104
    Likes Received:
    9
    Location:
    north east england
    Thanks hd3 for the info : )
