Suspension spring code/colour

Discussion in 'Defender 90 / 110 / 130' started by bluedog333, Oct 16, 2020.

< Previous Thread | Next Thread >
  1. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,156
    Likes Received:
    4,562
    Location:
    Henley on Thames, Oxfordshire
    I know this has been done before, but can’t seem to find the right info. Would anyone happen to know the code or colour code for TD5 110 SW front springs, normal duty. Thanks!

  2. Interceptorxj

    Interceptorxj Well-Known Member

    Joined:
    Oct 20, 2013
    Posts:
    1,444
    Likes Received:
    1,125
    Location:
    Bolton, Greater Manchester.
    Try NRC8045 Yellow/Yellow

    bluedog333 likes this.
  3. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,156
    Likes Received:
    4,562
    Location:
    Henley on Thames, Oxfordshire
    Cheers, do you know if they were fitted to the td5s? I know they’re suitable up to 2007, but can’t seem to find if they were actually standard, I.e not from 200/300tdi era. Basically, I’m after the more progressive spring rate that the td5 SW had.

  4. Interceptorxj

    Interceptorxj Well-Known Member

    Joined:
    Oct 20, 2013
    Posts:
    1,444
    Likes Received:
    1,125
    Location:
    Bolton, Greater Manchester.
    It would appear RHD TD5 has 1 x NRC8045 (n/s) and 1 x NRC8044 (o/s) as standard. From 2007 it is 2 x NRC8045


    Product Description
    Coil Spring - NRC8045 - Genuine
    Specifications and additional product information
    Defender 07 on - 110 ONLY All LHD models from (VIN) 7A000001 on - Front, passenger's side, standard
    Defender 07 on - 110 ONLY All RHD models from (VIN) 7A000001 on - Front, both sides, standard
    Defender 83-06 - 110 ONLY All models up to (VIN) 6A999999 - Front, passenger's side, standard - Quantity Required - 1

    Product Description
    Coil Spring - NRC8044 - Genuine
    Specifications and additional product information
    Defender 07 on - 110 ONLY All LHD models from (VIN) 7A000001 on - Front, driver's side, standard - Quantity Required - 1
    Defender 83-06 - 110 ONLY All models up to (VIN) 6A999999 - Front, driver's side, standard - Quantity Required - 1

  5. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    2,536
    Likes Received:
    806
    Location:
    Lost
  6. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,156
    Likes Received:
    4,562
    Location:
    Henley on Thames, Oxfordshire
    Cheers for the info mate, I think I know what I need now.

  7. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    5,156
    Likes Received:
    4,562
    Location:
    Henley on Thames, Oxfordshire

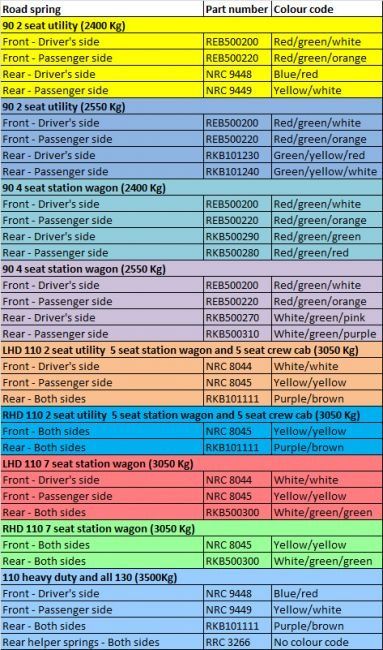

    Cheers Mick, I recall seeing that chart on here it that long ago. Seems to suggest that RHD models are not handed and two x NRC8045 will do? Seems strange that ‘07 models I.e Pumas can use the same spring both sides, but previous models needed NRC8044 + NRc8045. Wonder why this is?

  8. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    2,536
    Likes Received:
    806
    Location:
    Lost
    It was something to do with weight distribution. One is slightly longer than the other. I fitted two of the longer ones when I done my rebuild, 8044 seems to ring a bell.
