Disco 3 (LR3) suspension lowering hdc fault

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
D

Dirtydthedefender

Member
Posts
11
Location
Liverpool

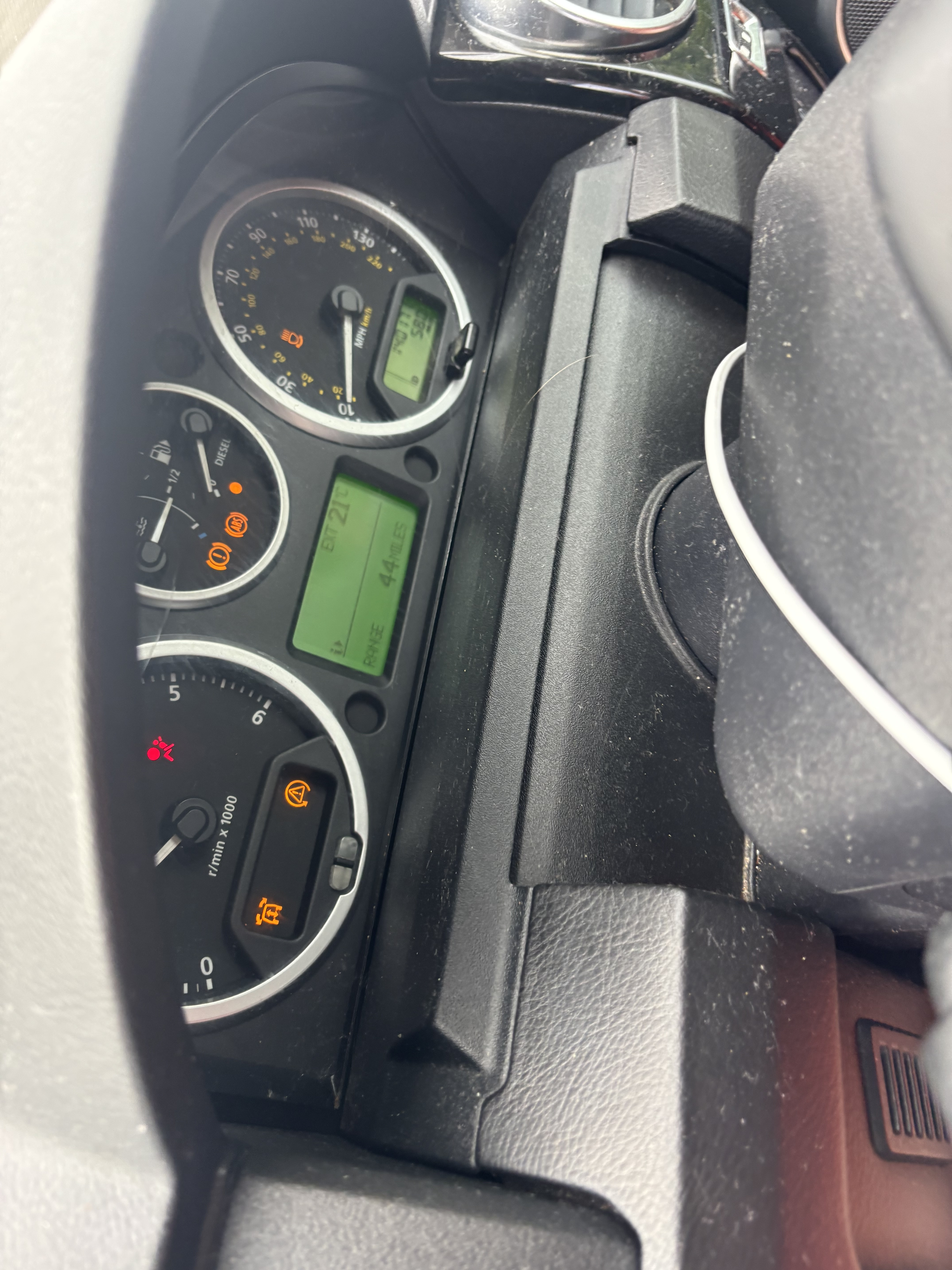

Hello, I have a 2007 Discovery 3 HSE 2.7 TDV6. Recently, when I come to the car, the battery voltage is at 14.6V. When I start the car, everything is normal and the air suspension goes up fine. However, while driving, I get a HDC fault stating special programs are not available. The suspension then lowers and the battery reading drops to 13.1V. I recently had a wheel speed sensor go on the front left, which I replaced with OEM and my scanner detects it fine. Does anyone know what to do? I am getting a lot of lights on the dash and I suspect it might be an alternator problem, as my battery is correct and tested fine.

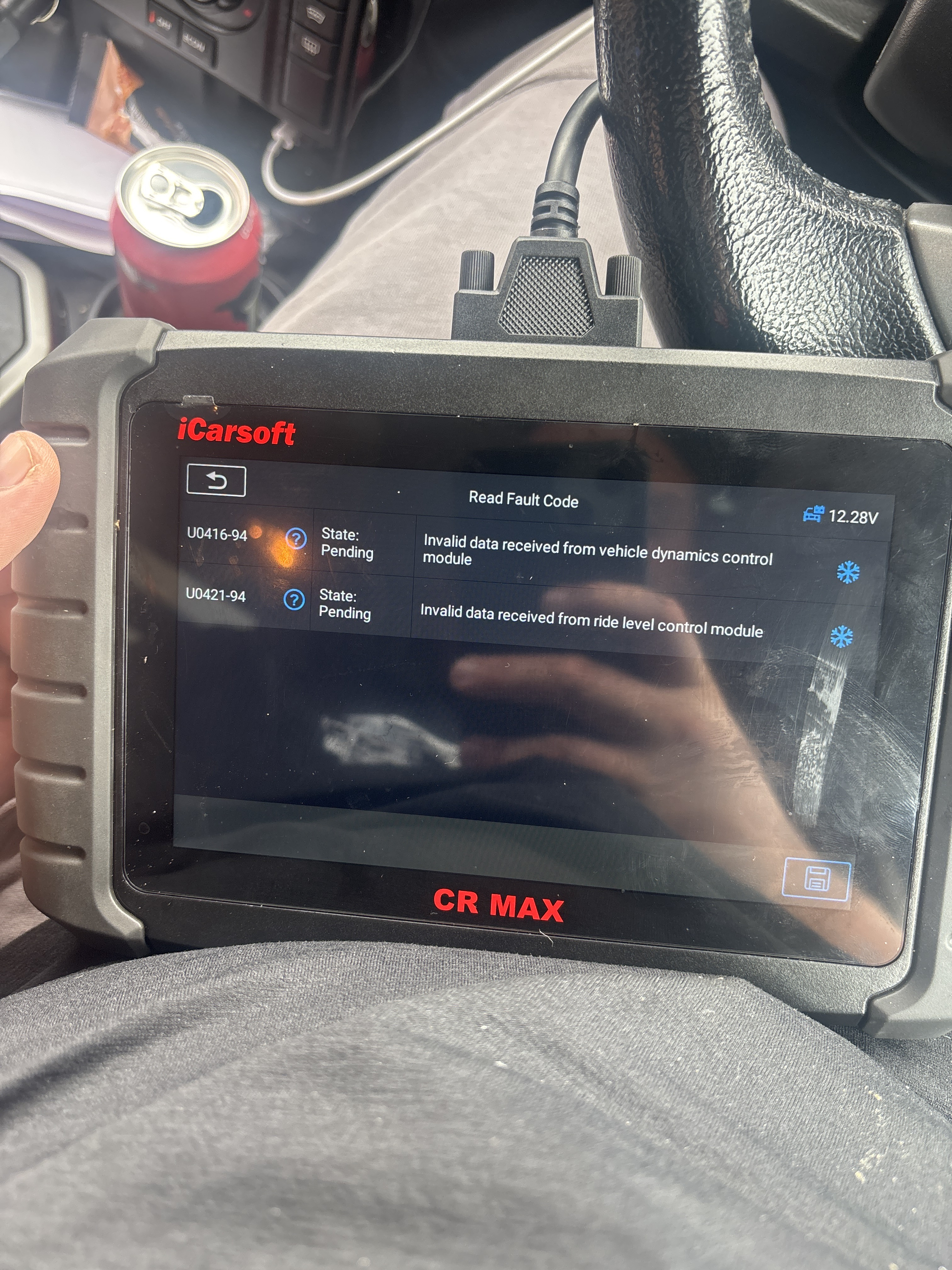

You need to read the codes, the battery voltage readings are probably innocent, its higher when the battery needs to recover from starting the car but lowers when the battery gets charged. Anything from a height sensor to a wiring fault could be causing this. Playing parts darts with these cars is expensive.

Edit - 12.2V is a dead battery, needs a recondition but more likely replacing.

TheMunster said:
You need to read the codes, the battery voltage readings are probably innocent, its higher when the battery needs to recover from starting the car but lowers when the battery gets charged. Anything from a height sensor to a wiring fault could be causing this. Playing parts darts with these cars is expensive.

Edit - 12.2V is a dead battery, needs a recondition but more likely replacing.
Click to expand...
Would this corse the suspension to lower and hdc faults on the dashboard I have had the battery tested and told its ok so when I start the car everything works fine and it’s charging at 14.6v then after driving it it drops to the low 12v I was thinking could the air compressor be on its way out and staying live Ino d3s are sensitive to voltage are give U codes
