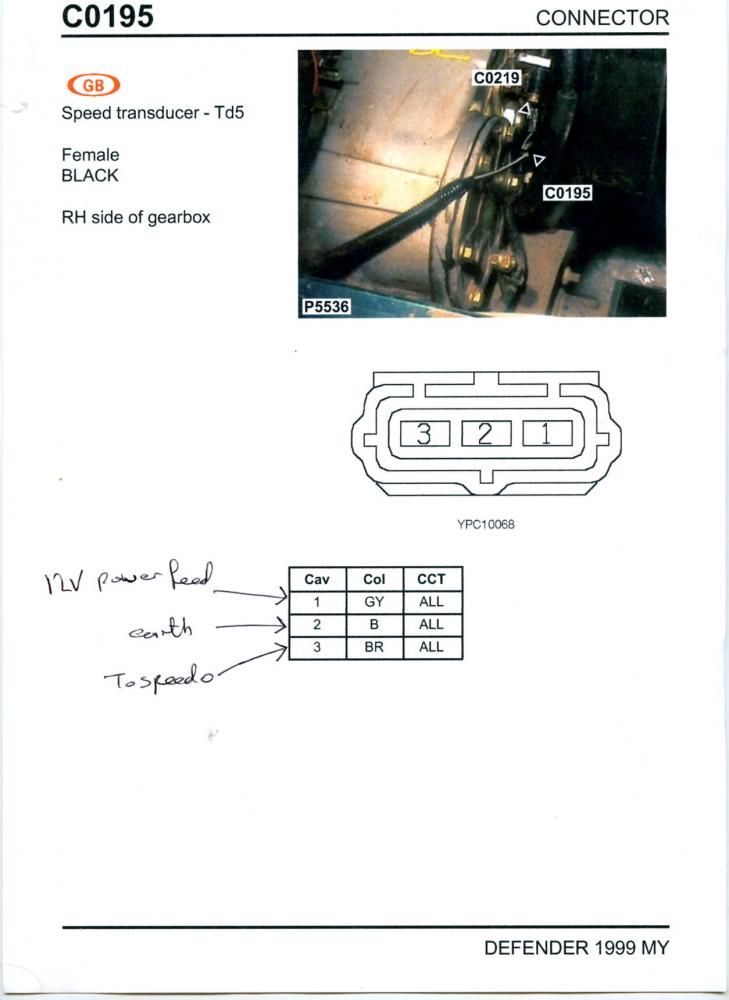

I am trying to wire in a speedo transducer I need to know which orientaton this pin diagram is at. has anyone got a photo of the transducer in place so I can see which colour wire goes to which pin? Or a photo of the transducer with the plug connected. Is this dia showing the transducer body looking down into it or the plug?
speedo transducer
- Thread starter dwdw
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Retroanaconda
Well-Known Member
- Posts
- 677
- Location
- SW Scotland

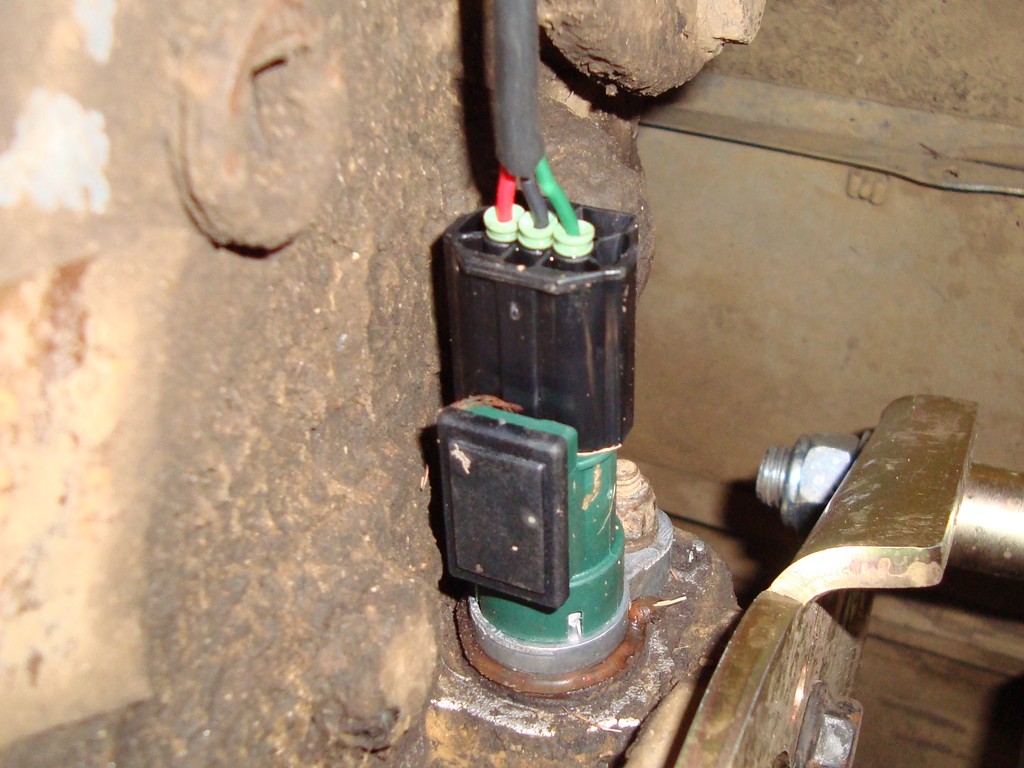

My colours are not standard as it's a home-made loom, but in this photo red is the ignition switched live (pin 1), black is the earth (pin 2), and green is the signal wire (pin 3).
In Rave, the diagrams the shown looking into the end of the plug.
My colours are not standard as it's a home-made loom, but in this photo red is the ignition switched live (pin 1), black is the earth (pin 2), and green is the signal wire (pin 3).
In Rave, the diagrams the shown looking into the end of the plug.
Many thanks thats much clearer now.
My colours are not standard as it's a home-made loom, but in this photo red is the ignition switched live (pin 1), black is the earth (pin 2), and green is the signal wire (pin 3).
In Rave, the diagrams the shown looking into the end of the plug.
