Series 2a Clutch Release

Discussion in 'Series Land Rovers' started by MFC, May 24, 2021.

< Previous Thread | Next Thread >
  1. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
    Hi All,

    Nearing the end of my 2a Part restore (mainly engine, gearbox, transfer and overdrive rebuilds plus chassis work) and dropped the engine into the already fitted gearbox (needed to be done first as moved Landy and needed handbrake). Engine mated ok although took a bit of effort and today looked to connect up clutch release mechanism and slave cylinder etc.
    Problem is that the release shaft from the mech seems to be in the wrong position and if connected as it is the clutch slave is miles off so the shaft is wrong I guess (maybe 45-60 degrees) but why???
    Thoughts
    • Shaft wrongly assembled
    • Clutch plate wrong way round
    • Some other school boy error
    Any help on this greatly appreciated hope engine wont have to come out again!!!!
    Cheers 20210524_143403.jpg

  2. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,654
    Likes Received:
    1,739
    Location:
    west wales coast
    I see the link tube in your pic but nothing else. When the slave bracket is fixed to the bell housing bolts the slave pushrod that operates the arm that turns the rod into the link tube needs to be pushed in

  3. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
    Thanks for that but the pushrod is far too low to connect to the slave cylinder hence the problem. The pic I posted is trying to show the location of the holes ie are they in the correct position???

  4. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,594
    Likes Received:
    14,955
    Location:
    Current
    Iirc there is a epecific point that the splins need to be fitted?
    Sure it is in the manual.

  5. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
  6. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
    Thanks, I am struggling with manual, haynes doesn't really help on this

  7. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,594
    Likes Received:
    14,955
    Location:
    Current

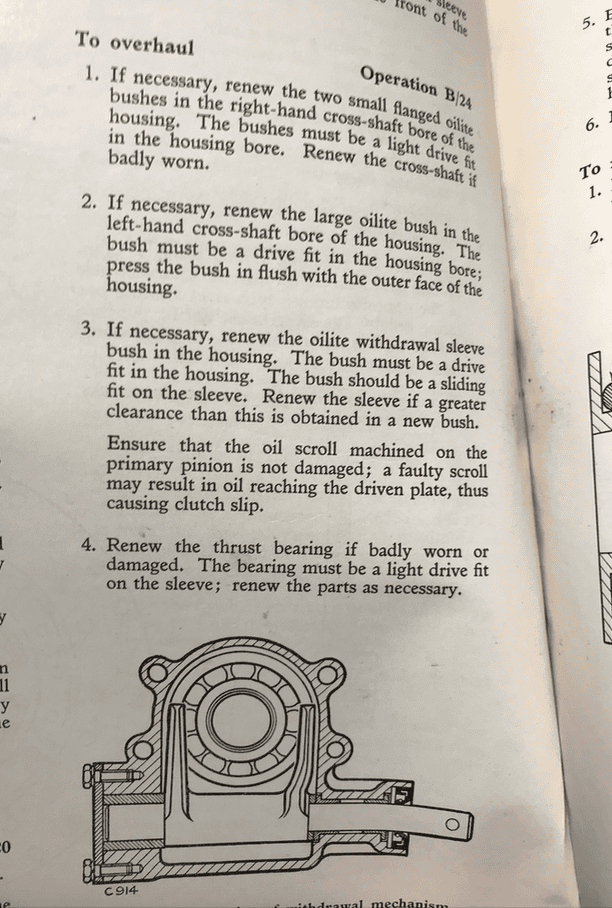

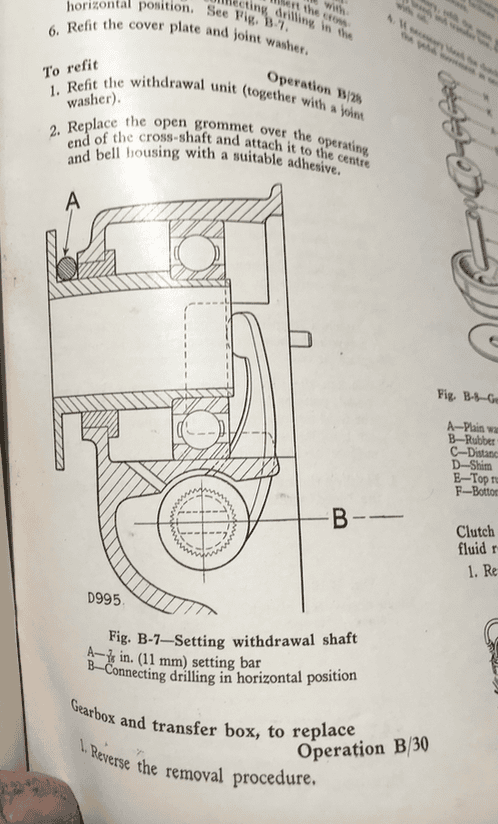

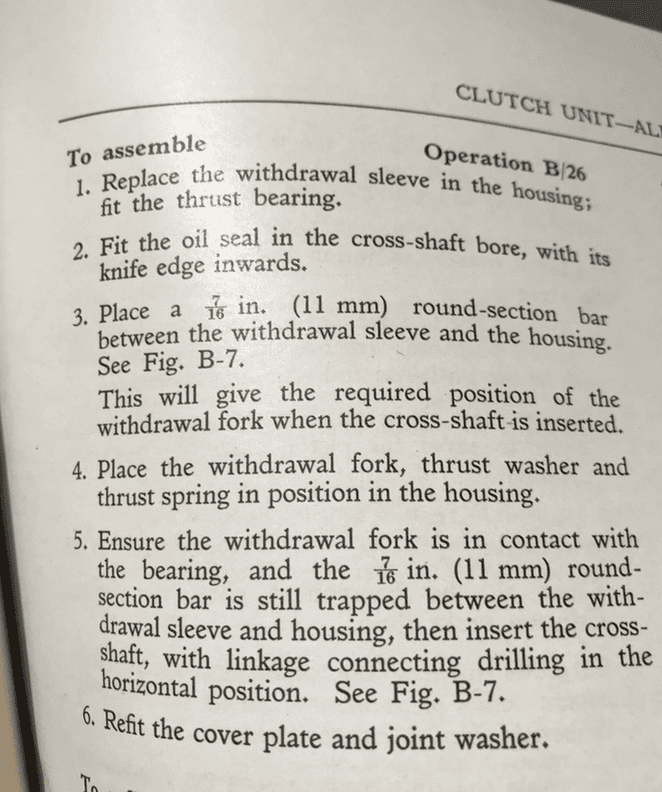

    Looking at pic the hole the pin goes through, in the manual it look like the pin should be in line with the vehicle ie horizontal.
    Crap pics as light rubbish

    Screen Shot 2021-05-24 at 21.07.30.png Screen Shot 2021-05-24 at 21.07.39.png Screen Shot 2021-05-24 at 21.07.47.png

    Turboman likes this.
  8. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
    Thanks for that, on first look, as you say, it looks like the shaft is in the wrong position. I put that together over a year ago and cannot remember what process was used. Looks like it could be a set up issue. Will take engine out and see if it is set up as per you pics. really helpful thanks

    lynall likes this.
  9. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,594
    Likes Received:
    14,955
    Location:
    Current

    Ps Haynes manuals stopped being useful about 20 odd years ago.

    wireman and Turboman like this.
  10. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
    Took the engine our today and yes I had set it wrong so thanks for the info.Set up as per book and engine back it (after checking funtioned ok) now I cant get enough movement on the mech to disengage the clutch. It looks like the push rod is now too short but maybe I was a spline off but i didn't think so. Anyone had problems with push rod too short???

  11. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,594
    Likes Received:
    14,955
    Location:
    Current

    Again Iirc the push rod is quite long and has an extra lock nut on it for some reason, some had spacers between slave and bracket, some of the brackets are different and so on!

  12. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,594
    Likes Received:
    14,955
    Location:
    Current
    My spare pushrod is 125mm end of rod to centre of clevis pin.
    Think the one on my actual car has had an extra bit of pushrod welded on as I recall it being really long?

  13. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
    Trying no to take the engine out again as done it twice today!!! My push rod is 102mm or so need extra 25mm or so

  14. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,594
    Likes Received:
    14,955
    Location:
    Current
    The one at 125mm is original with no welding/grinding visible.

  15. MFC

    MFC Active Member

    Joined:
    Jan 20, 2010
    Posts:
    152
    Likes Received:
    21
    Anyway seem to finally have a clutch of sorts. So if I follow the manual as per above I end up with too little active travel on the push rod to operate the clutch so you need either a longer push rod or as I did move the clutch shaft passed where the book says on a couple of splines. Problem with this means I have now taken the engine in and out 3 times in a day twice alone on uneven surface so decided it is now beer time. Tomorrow will look at the mounts on Gearbox and Engine and try and get the manifolds on and maybe try a start, we'll see. Thanks for all the input but have a think if you are setting up a 2a clutch and what travel you need.

    lynall likes this.
