Separating LT30 from R380

Lej · Tuesday at 18:39

Good afternoon all,

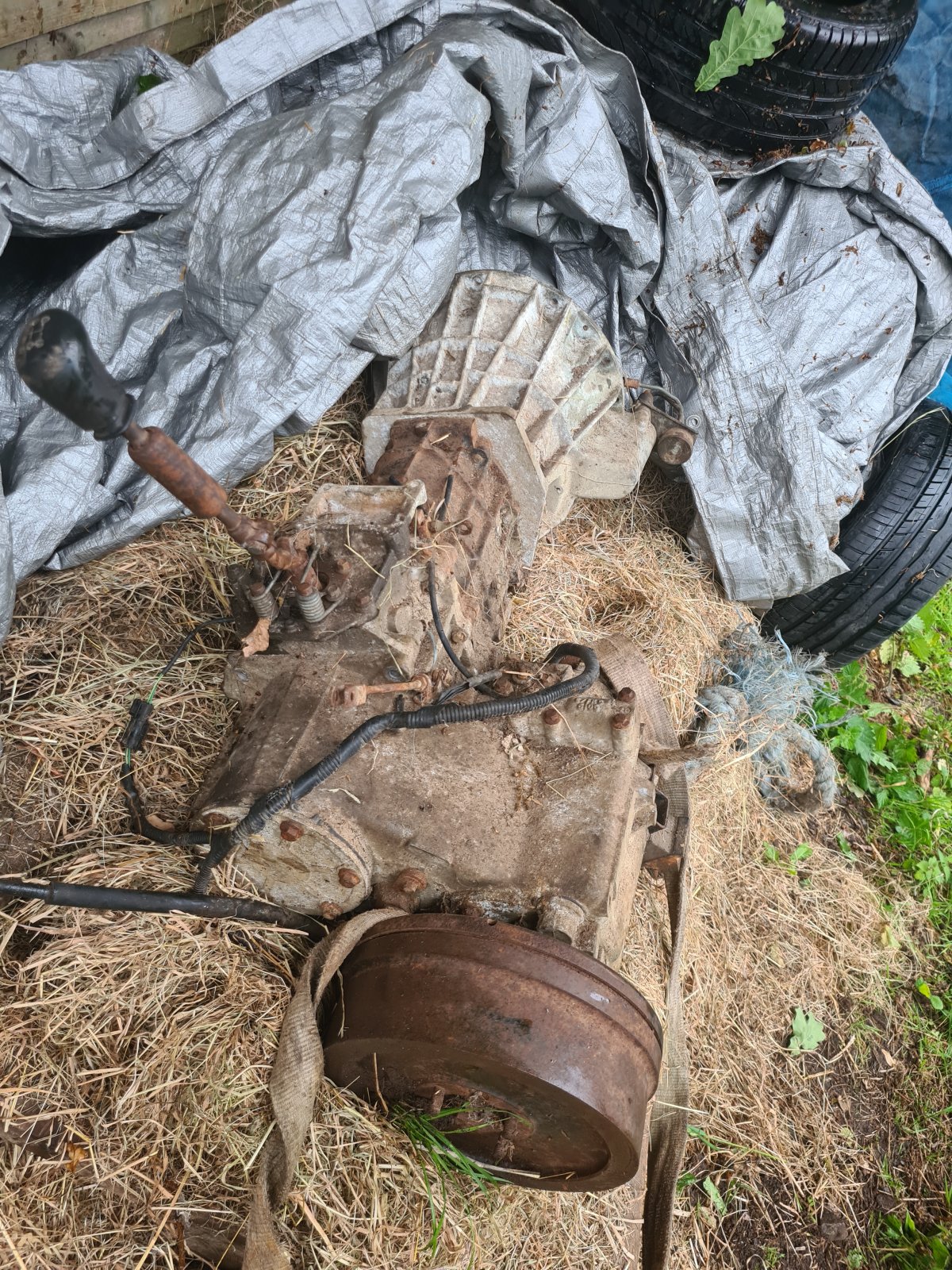

I have taken all the bolts out of the lt230 in the below picture, but she just won't budge. I can see that it's free, when I move the box up and down it's got a small amount of separation.

Am I missing something here, is there a bearing or something that's stopping the shaft from coming out?

Thanks all

Hicap phill · Tuesday at 19:29

Take the round back plate off(by the handbrake) remove the gear. As splines may be worn & holding it on…

Or some one has put a nut on the end of the shaft for fun

lynall · Tuesday at 19:54

Hicap phill said:
Take the round back plate off(by the handbrake) remove the gear. As splines may be worn & holding it on…

Or some one has put a nut on the end of the shaft for fun

Or welded it!

tottot · Tuesday at 22:02

Heard of the above done to sell off a knackered box before!

Lej · 2025-05-28T07:25:38+0100

Oh boy

I sure hope not... Thanks all- I'll get back with my findings...

Brown · 2025-05-28T08:09:31+0100

Don't forget the bolt between the R380 and the front nose cone of the transfer box. It's easy to miss because it's hidden.
