S2a seat position

Discussion in 'Series Land Rovers' started by scaffers, Nov 30, 2021.

< Previous Thread | Next Thread >
  1. scaffers

    scaffers New Member

    Joined:
    Nov 29, 2021
    Posts:
    4
    Likes Received:
    0
    Location:
    surrey
    hi all



    is there a trick to getting a bit more room in the seating area of a S2a, i have an old injury of 2x broken legs and find it more cramped than ever.





    scaff

  2. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    53,864
    Likes Received:
    55,516
    Location:
    Continuously Cruising
    I think you can remove the internal centre bulkhead, and fit a stiffener bar, which opens up options of fitting seats that go a bit further back, which will give you a bit more legroom.

    On the other hand, it won't deal with the fact that the drivers position is quite tight on all sides except to the left.
    Or with the pedals being a bit off centre to the driver, which many people find makes them an uncomfortable drive.

  3. 300bhp/ton

    300bhp/ton Well-Known Member

    Joined:
    Jun 20, 2011
    Posts:
    3,685
    Likes Received:
    1,299
    Location:
    Near MK
    What seats do you have? The factory lift out style take up the least room. And as you'll be able to see, there isn't much space to be promoted.

    A smaller steering wheel might help, but might make the steering too heavy. Or you will need to look at more serious mods. Such as cutting the bulkhead and fitting seats that slide further back as per @Turboman suggestion. But this is a one way mod that you can't undo and will only work on a hard top or full tilt, not a pickup and will prevent it ever being a pickup.

    You could also look at moving the handbrake lever, but you'll have to R&D it a bit, And that is probably it. If you have door cards you can remove them to give a bit more knee room. But ultimately it you don't fit, the brutal reality might be, that it just isn't the vehicle for you. :(

    Turboman likes this.
  4. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    6,018
    Likes Received:
    944
    Location:
    Manc chester
    You could fit later 2a / 3 sliding seats but you would need the runners as the seat base will slide back more and you could remove the rubber pads from the back rests to give you an inch or so more.

  5. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    53,864
    Likes Received:
    55,516
    Location:
    Continuously Cruising
    I forgot about that, but quite right. The old style squabs tha just sit on the seat box actually take up less room than the seats that are on runners.

    tottot and 300bhp/ton like this.
  6. Mik87

    Mik87 Member

    Joined:
    Apr 26, 2021
    Posts:
    47
    Likes Received:
    23
    Location:
    England
    I have an ex-military 109 which has smaller seat back buffers on the driver's side only - it was an official mod. It gives about another inch as stated by another poster above.

  7. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    18,288
    Likes Received:
    16,232
    Location:
    Kent
    Iirc s1 seat backs are very thin, not sure if they will fit but maybe worth a look?

    Turboman likes this.
  8. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    18,947
    Likes Received:
    22,365
    Location:
    Manchester
    Nail a plastic school chair in it.

    I like the orange ones.

    kermit_rr and Turboman like this.
  9. Wildefalcon

    Wildefalcon Well-Known Member

    Joined:
    May 28, 2015
    Posts:
    429
    Likes Received:
    211
    SWB or LWB? More space in a LWB, so mud stuff rails will work with a defender seat.

  10. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,796
    Likes Received:
    1,849
    Location:
    west wales coast
    A lot depends on your build, raising the seat some can help with leg room but only any good if you are not too tall because you will end up ducking to see out under the top line of the screen.

  11. rynner

    rynner Well-Known Member

    Joined:
    May 29, 2019
    Posts:
    374
    Likes Received:
    166
    Location:
    kernow
    driving with my knees wide apart gives enough legroom,

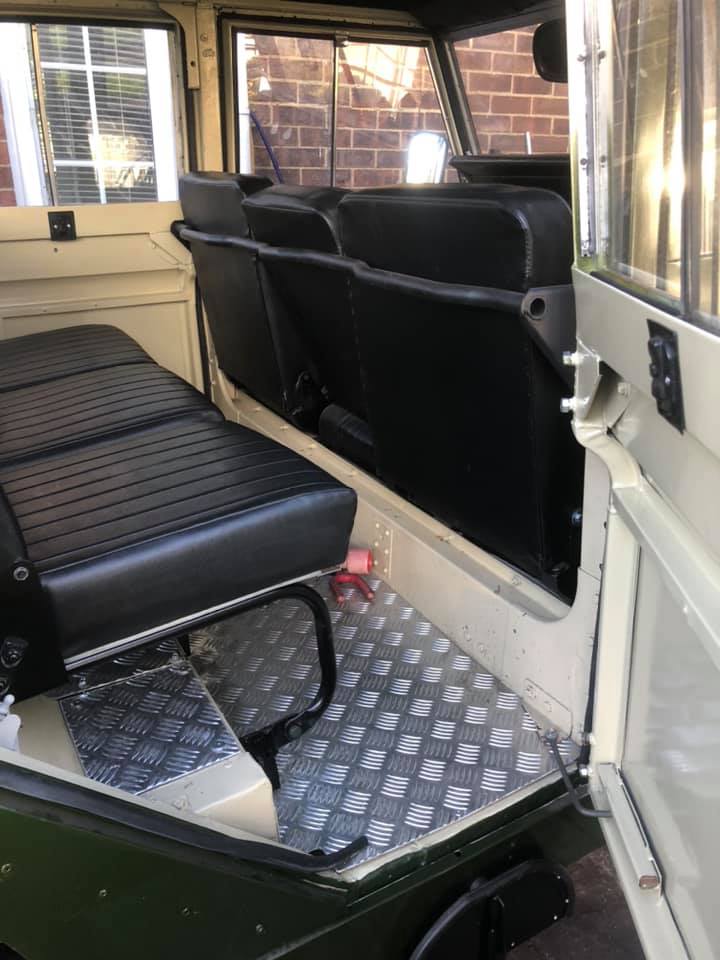

    re post 2, here,with some ingenuity and fettling is a possible fix,88's have the fuel filler hose in the way so not as straightforward as this one,(pic not mine,from fbook)
    land rover seat bar.jpg
    atb and seasons greetings

    Last edited: Dec 21, 2021
