L322 Retro Fitting Range rover seats HELP!!! :D

P38_Ireland · Jan 22, 2018

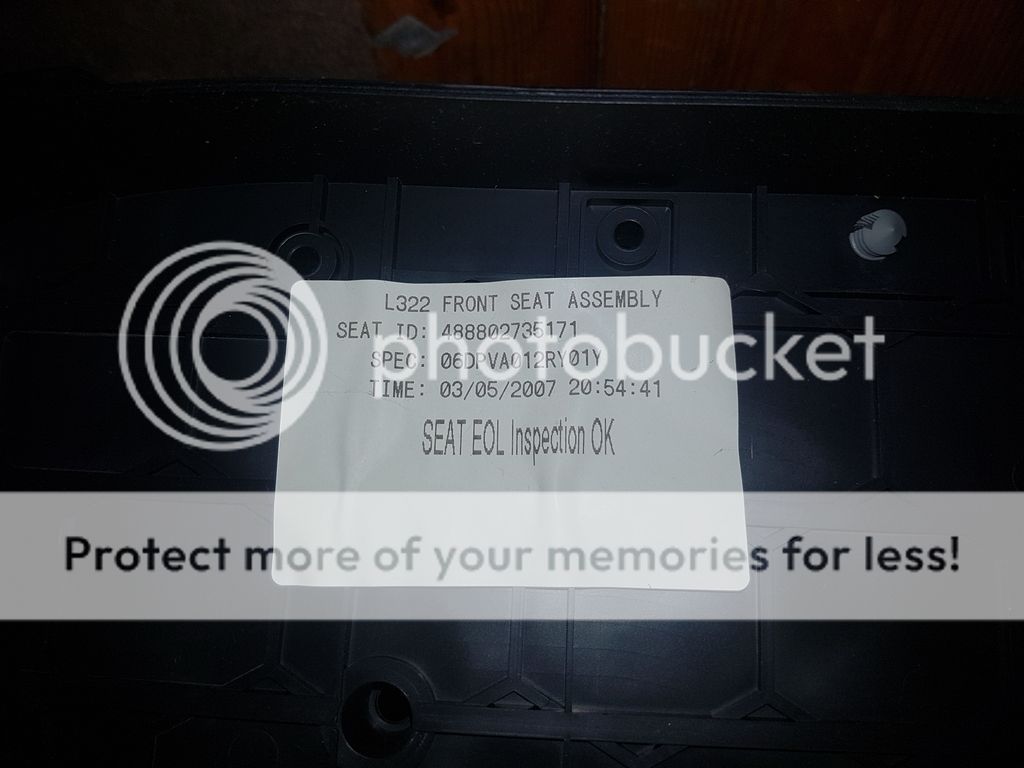

Hi all, been a long time since i have been on the site. I started a new project (converting a T5 van to a camper) still driving a 110 but wanted to add some comfort to the T5 I decided to buy some L322 front seats. Thought it would be simple enough to wire up but looking like i was wrong (As usual!!) has anyone got any experience of how i can wire up the seats starting from a 12v feed? ive spent an evening googling and not having much luck. i am including pics below of what i have and what the specs are. maybe someone might have an electrical diagram to get me started?

brianp38dse · Jan 22, 2018

The l322 seats are memory seats and iirc move to which key unlocks the car, they may move back as well to let you get in, the steering column does, so may well be run from the becm, it may well be a case of tracing the wires from the switches and matching them to the appropriate function wire on the motors, its not going to be easy and I would avoid the yellow connector as that one I think is the air bags.
Hopefully some one more clued up will be along soon.

P38_Ireland · Jan 22, 2018

Thanks for the reply, what you said seems absolutely right and I think that is going to be the way forward. I think it's going to be a case of identifying the airbags and seatbelt pretensioner and cutting the wires at the source to avoid any mistakes and then tracing the wires to the switces

P38_Ireland · Jan 22, 2018

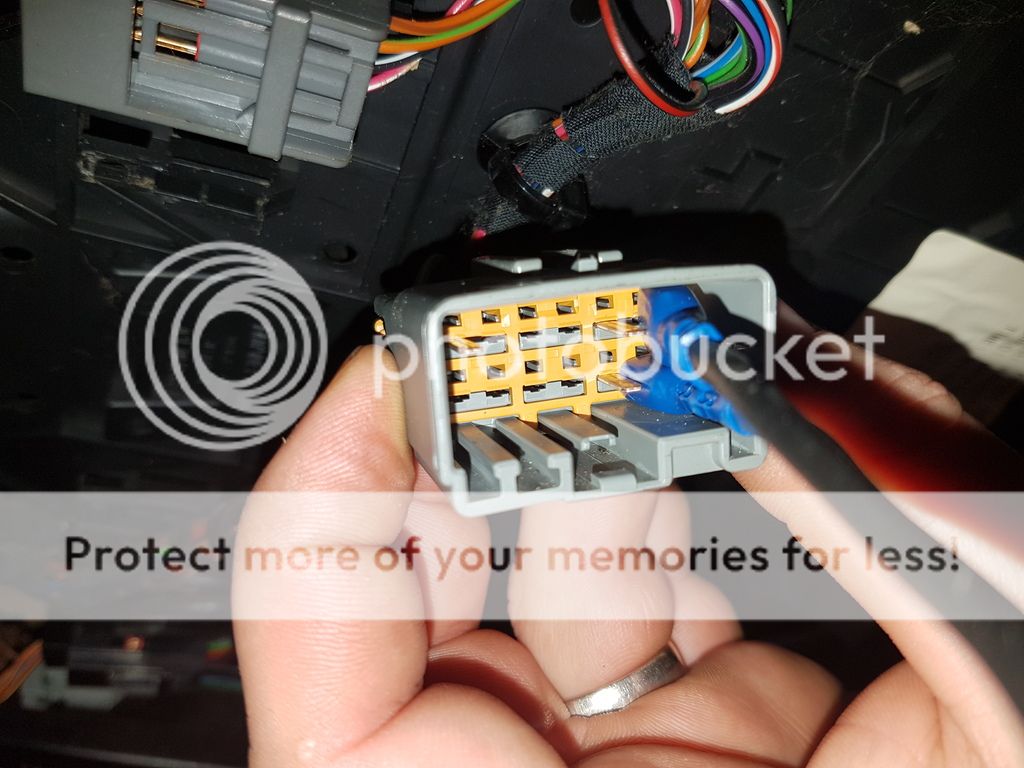

ok got them working. he's what i did, its very simple.

Maybe its just me but i looked everywhere on all kinds of forums both Landrover and VW and couldnt get the answer. SO! i spent a little while getting stuck with a multimeter and following cables. It turns out to be very easy for BOTH seats.

my Seats are from a circa 2006 Range Rover L322 Vogue With memory seats.

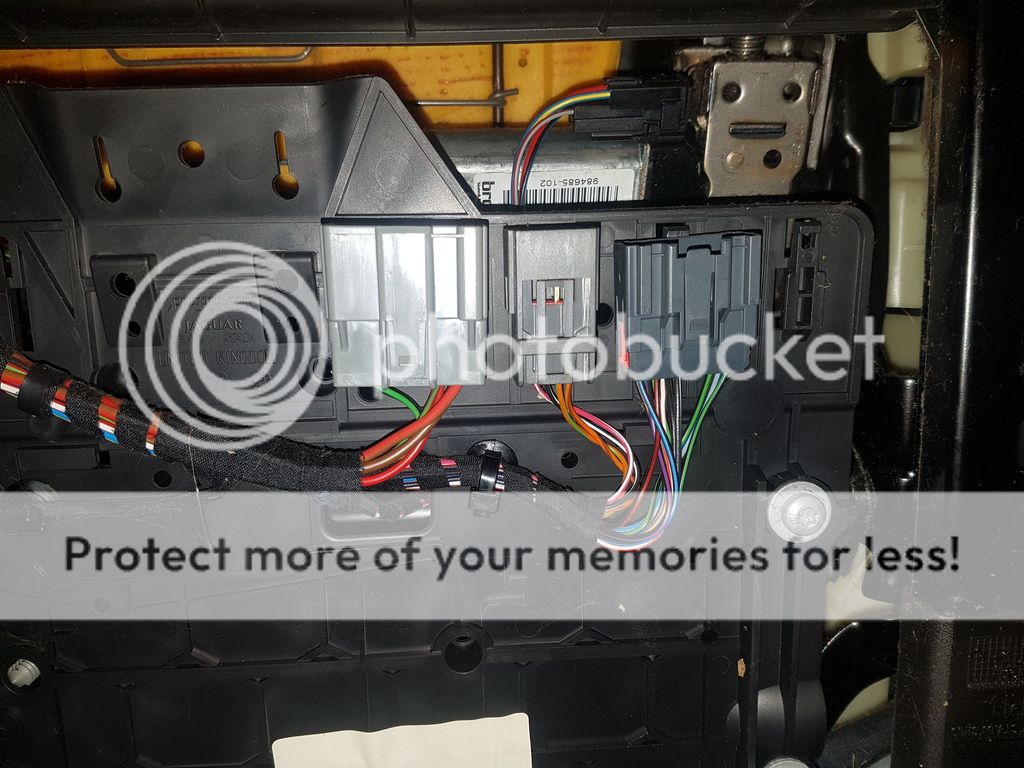

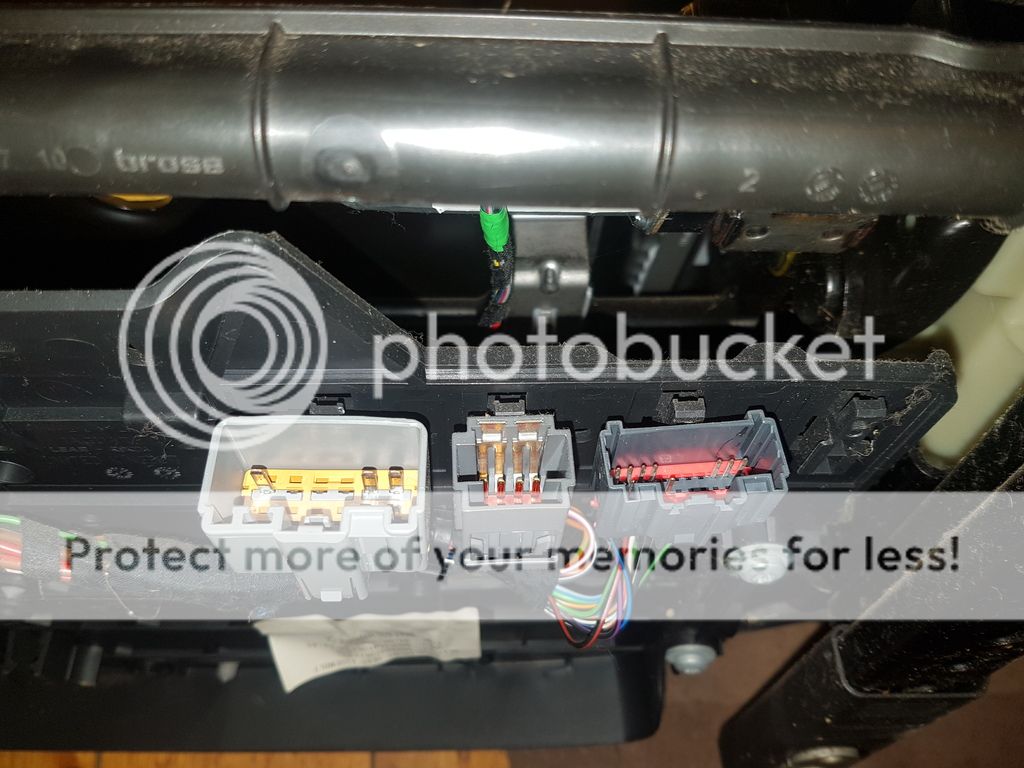

under the seat there are 3 block connectors, look for the larger of the 3

Terminal 1 is Positive 12v +
Terminal 7 is Negative (Earth)

I put sleeved spade connector over the terminal to test and hep presto, all works in all directions including the memory seats function without an ECU,

[/QUOTE]

brianp38dse · Jan 22, 2018

Well that was easier than I thought and it was the one I reckoned may be the air bags so surprised even more, a least we all know how to do it now, good luck with the rest of your camper conversion

hope it goes as easy as the seat wiring.

WatchcamP38 · Mar 2, 2019

If anyone knows how to do this on the post 2010 seats i would appreciate it.

Henry_b · Mar 2, 2019

Don't know why, imo L322 seats aren't the most comfortable tbh..

WatchcamP38 · Mar 8, 2019

Henry_b said:
Don't know why, imo L322 seats aren't the most comfortable tbh..

I wouldn’t say i have found them uncomfortable personally but perhaps not the best seats either. I don’t mind them.

Datatek · Mar 9, 2019

Henry_b said:
Don't know why, imo L322 seats aren't the most comfortable tbh..

German park bench hard.

CSV · Jul 7, 2019

Hi P38_Ireland!

What a nice surprise to discover your thread and what lovely seats they are!

I'm going to try and fit the L322 seats into my Audi A6, although I'm not sure how I will go on airbag-wise. :/
I hope your project is coming along well, and if you have any further information for good or bad, I might get to hear it.

I need the L322 seats because I find them to be very comfortable - I had major spine injury a few years back and have had four seats of A8 seats fitted in my 2012 A6 without getting nicely comfortable. So I went to my 2006 L322 and measured the seat rails and all seems to be ok dimension wise for fitting to the A6.

I you or anyone else can get back with any further information that might help me or the auto electrician do the job.

Thanks in advance.

With best regards.

Paul.

Inchargeagain · Apr 8, 2024

P38_Ireland said:
Hi all, been a long time since i have been on the site. I started a new project (converting a T5 van to a camper) still driving a 110 but wanted to add some comfort to the T5 I decided to buy some L322 front seats. Thought it would be simple enough to wire up but looking like i was wrong (As usual!!) has anyone got any experience of how i can wire up the seats starting from a 12v feed? ive spent an evening googling and not having much luck. i am including pics below of what i have and what the specs are. maybe someone might have an electrical diagram to get me started?

I have followed your advice, hotwiring to go into my van. The passenger seat works fine, but alas the drivers side with memory doesn't. The drivers side plug has more populated wires. Any instructions to wire this seat would be greatly appreciated..
